Yard Man 13CX614G401 (2003) Lawn Tractor

Model: 13CX614G401 (2003)

Back To Assemblies

Save Part Not Listed?
product name

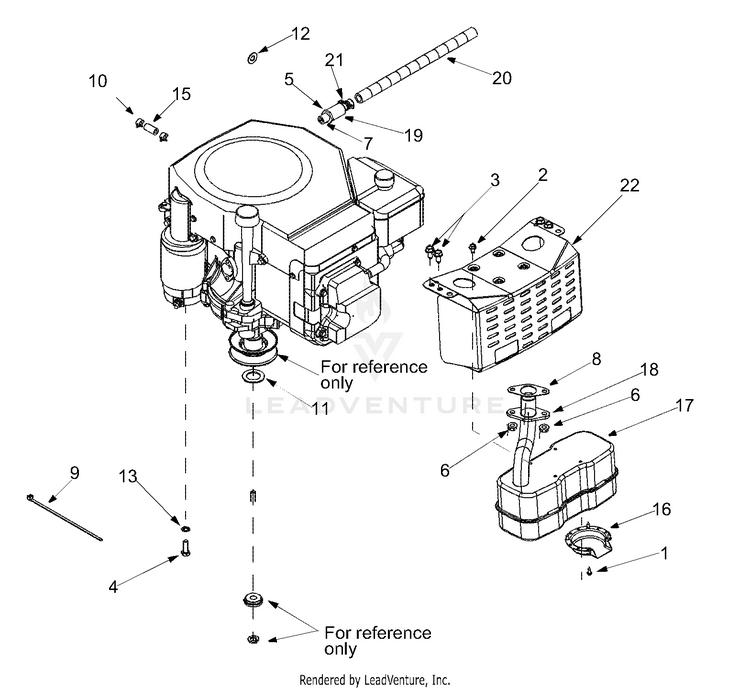

Engine Accessories

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
4
Hex Screw M8 MTD-710-3206A
...
5
HEX NUT 3/8-16 GR5 MTD-712-3017
...
6
Flange Nut M8 MTD-712-3086
...
7
Sealant: Loctite (TM) MTD-721-0331
...
8
Gasket, Exhaust Manifold MTD-KH-12-041-03
...
9
Cable Tie MTD-725-0157
...
10
Hose Clamp MTD-726-0205
...
11
Flat Washer MTD-736-0277
...
12
Flat Washer MTD-736-0300
...
13
Lock Washer 5/16 MTD-736-0607
...
15
Hose: Fuel Line MTD-751-0535
...
16
Muffler Deflector MTD-751-0564B
...
17
Single Inlet Muffler MTD-951-0617C
...
18
Exhaust Pipe MTD-751-0810A
...
19
Oil Drain Valve MTD-951-10517A
...
20
Oil Drain Hose MTD-751-3141-14
...
21
Oil Drain Cap MTD-751-3142
...
22
Muffler Heat Shield MTD-783-0615E-0637
