Yard Man 13B-325-401 (2000) Lawn Tractor

Model: 13B-325-401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

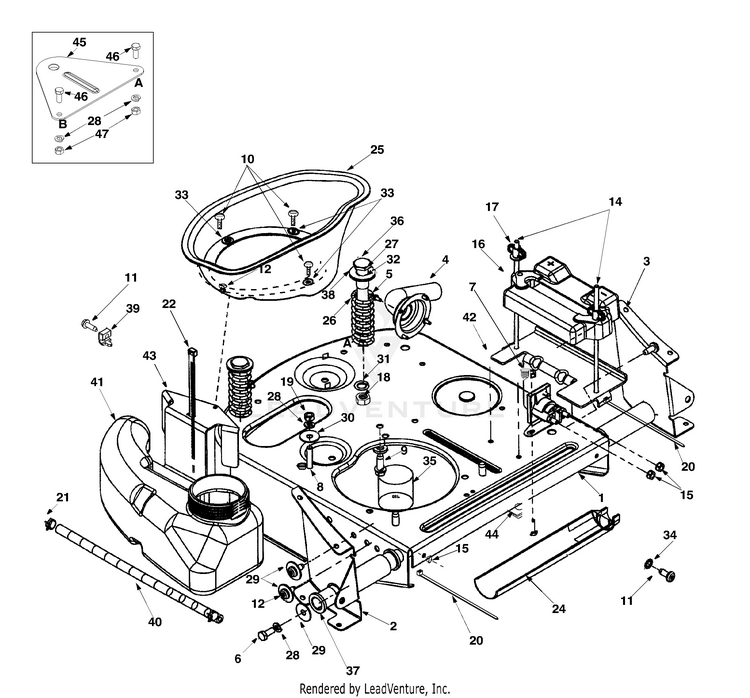

Fuel Tank, Frame, Engine Accessories

...
...
1
FRAME ASSEMBLY MTD-683-0149B
...
2
RAIL SUPPORT: FRAME ASSEMBLY RH MTD-683-0190A
...
3
RAIL SUPPORT: FRAME ASSEMBLY LH MTD-683-0191A
...
4
PIPE-MUFFLER EXTENSION MTD-683-0192
...
5
Hex Fl. Screw #8-32 x 0.375 MTD-710-0148
...
6
Hex Screw 5/16-24 x .75" Gr.5 MTD-710-0157
...
7
Self-Tapping Screw MTD-710-0599
...
8
Hex Screw 5/16-24 x 1.5" Gr.5 MTD-710-0624
...
9
Hex Washer Head TT Screw 3/8-16 x 1.0" MTD-710-0654A
...
10
SCREW #10-32 x .38 MTD-710-0871
...
11
Hex Washer TT Screw #10-32 x 0.625" MTD-710-1237
...
12
SCREW 5/16-18 x .750 MTD-710-1611B
...
?13
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
14
HOLD DOWN BATTERY ROD MTD-911-0222A
...
15
Hex Sems Nut 1/4-20 MTD-712-0271
...
16
Lock Nut 1/4-20 MTD-712-0291
...
17
Wing Nut MTD-712-0397A
...
18
HEX NUT 3/8-16 GR5 MTD-712-3017
...
19
Hex Nut 5/16-24 Thd. MTD-912-3057
...
20
Cable Tie MTD-725-0157
...
21
Hose Clamp MTD-726-0205
...
22
Cable Tie MTD-726-0230
...
?23
BATTERY COVER MTD-731-0708
...
24
Oil Drain Sleeve MTD-731-1682A
...
25
DUCT-ENGINE MTD-731-1945
...
26
Compression Spring MTD-732-3080A
...
27
Rubber Washer MTD-735-0273
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
WASHER-FL NLAUD MTD-936-0123
...
30
5/16 Washer MTD-736-0159
...
31
Lock Washer MTD-736-0169
...
32
Flat Washer MTD-736-0188
...
33
Flat Washer MTD-736-0400
...
34
Lock Washer MTD-736-0607
...
35
Motor Oil MTD-737-0169
...
36
SHOULDER SCREW MTD-738-0960
...
37
FLANGE BEARING MTD-741-0516B
...
38
Flange Bearing MTD-741-0591
...
39
Cable Clamp (B&S) MTD-BS-690798
...
40
Fuel Line Hose MTD-751-0535
...
41
FUEL TANK MTD-751-0656
...
41
FUEL CAP MTD-751-0649
...
42
BRACKET MTD-783-0624
...
43
FUEL TANK BRACKET MTD-783-0630
...
44
TRANSAXLE SUPPORT BRACKET MTD-783-0809B
...
45
HITCH PLATE (Optional) MTD-783-0561A-0637
...
46
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
47
HEX NUT 5/16-18 MTD-712-3010
...
xx
BATTERY (Not Shown) MTD-753-0607
