Yard Man 13B-325-401 (2000) Lawn Tractor

Model: 13B-325-401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

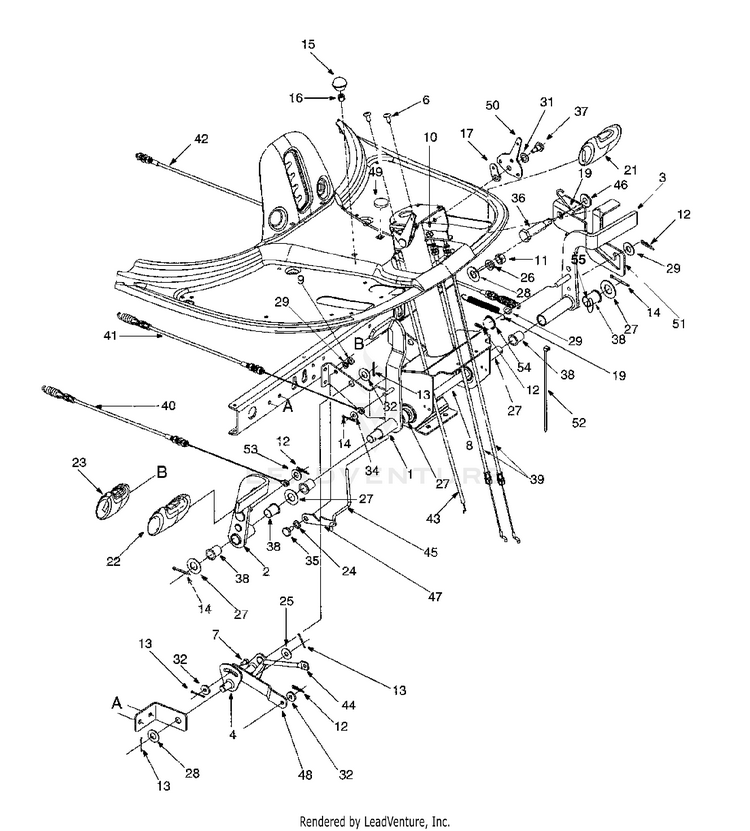

Foot Controls & Cables

...
...
1
BRAKE PEDAL ASSEMBLY (POWDER BLACK) MTD-683-0155A-0637
...
2
VARIABLE PEDAL ASSEMBLY MTD-683-0156
...
3
PEDAL ASSEMBLY MTD-683-0275A
...
4
CAM SHAFT ASSEMBLY (POWDER BLACK) MTD-683-0161-0637
...
6
Ab Screw 1/4-14 X .625 MTD-710-1017
...
7
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
8
SHAFT MTD-711-1156
...
9
HEX NUT 1/4-20 MTD-912-0287
...
10
Lock Nut 1/4-20 MTD-712-0324
...
11
HEX NUT 3/8-16 GR5 MTD-712-3017
...
12
Internal Cotter Pin MTD-714-0104
...
13
Hairpin Clip MTD-714-0111
...
14
Hairpin Clip MTD-714-0470
...
15
THROTTLE KNOB MTD-720-0166
...
16
BUSHING MTD-731-0405
...
17
STOP LEVER MTD-731-1913
...
19
TORSION SPRING MTD-732-0865
...
?20
EXTENSION SPRING .44 DIA x 4 MTD-732-0815
...
21
DECK PAD MTD-735-0262
...
22
DRIVEPAD MTD-735-0261
...
23
BRAKE PAD MTD-735-0263
...
24
Fl-Wash. MTD-936-0117
...
25
5/16 Washer MTD-736-0159
...
26
Lock Washer MTD-736-0169
...
27
Flat Washer MTD-736-0187
...
28
FLAT WASHER .510 x .995 MTD-736-0272
...
29
Flat Washer .406 x 1.25 x .10 MTD-736-0133
...
?30
L-Wash. 1/4" I.D. MTD-936-0329
...
31
Spr. Wash. 7/16" I.D. MTD-936-0141
...
32
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
?33
Flat Washer .531 X 1.062 X .134 MTD-736-3019
...
34
Flat Washer .271 X .630 X .065 MTD-736-3020
...
35
SHOULDER SCREW MTD-938-0255
...
36
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
37
Shoulder Screw .375 X .380 X 1/4-20 MTD-738-0974
...
38
Flange Bearing MTD-741-0591
...
39
Shift Cable MTD-946-0935A
...
40
Variable Drive Cable MTD-946-0936
...
41
Brake Cable MTD-946-0937
...
42
Deck Cable MTD-946-0940
...
43
CHOKE CABLE MTD-946-0964
...
44
BRAKE ROD MTD-747-0963A
...
45
BRAKE LOCKOUT ROD MTD-747-0964
...
46
SPACER MTD-950-0736
...
47
BRAKE LOCK BRACKET MTD-783-0473-0637
...
48
VARIABLE SPEED LINK MTD-783-0525-0637
...
49
PLUG CAP MTD-726-0450
...
50
Shift Lever MTD-783-0593A
...
51
LOCK PEDAL BRACKET MTD-783-0794-0637
...
52
Cable Tie MTD-725-0157
...
53
Flat Washer .406 I.D. x .875 O.D. MTD-736-0300
...
54
Push Cap MTD-726-0100
...
55
Flat Washer MTD-736-0262
