Yard Man 13B-325-401 (2000) Lawn Tractor

Model: 13B-325-401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

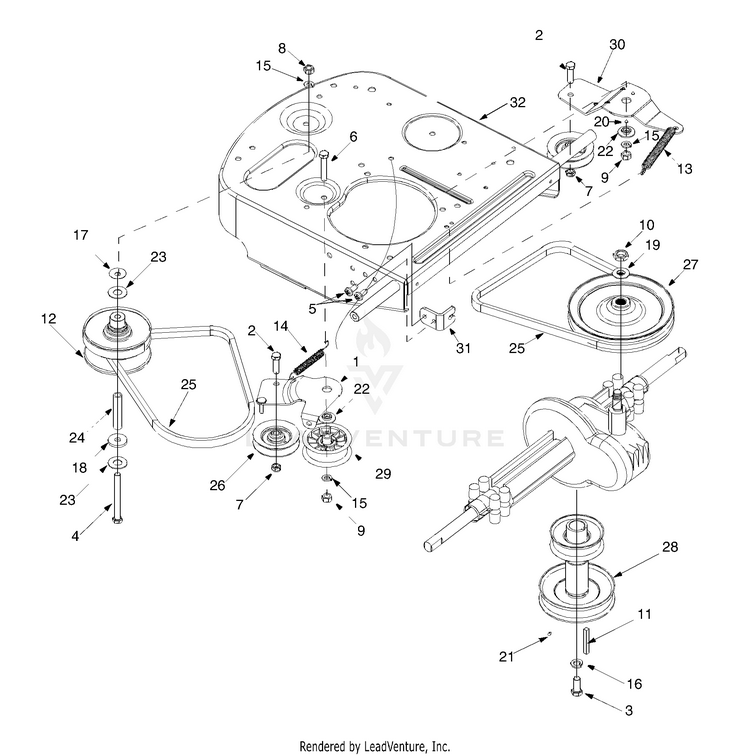

Drive Assembly

...
...
1
IDLER BRACKET ASSEMBLY MTD-683-0147
...
2
Hex Screw 3/8-24 x 1.25 MTD-710-0191
...
3
Hex Screw 7/16-20 x 1.0" MTD-710-0314
...
4
Cap Screw 3/8-24 x 3.75 MTD-710-0902
...
5
SCREW 5/16-18 x .750 MTD-710-1611B
...
6
Hex Screw 3/8-16 x 2.0 Special MTD-710-3096
...
7
Jam Lock Nut 3/8-24 MTD-712-0116
...
8
Hex Nut 3/8-24 MTD-712-0241
...
9
HEX NUT 3/8-16 GR5 MTD-712-3017
...
10
HEX JAM NUT 9/16-18 GR5 MTD-712-3035
...
11
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
12
Variable Speed Pulley Assembly MTD-717-0884
...
13
Extension Spring MTD-732-0814
...
14
EXTENSION SPRING .44 DIA x 4 MTD-732-0815
...
15
Lock Washer MTD-736-0169
...
16
Lock Washer 7/16 I.D. MTD-736-0171
...
17
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
18
Flat Washer 3/8 x 1.25 O.D. MTD-736-0247
...
19
BELL WASHER MTD-936-0427
...
20
Grease MTD-737-0167
...
21
Grease MTD-737-0288
...
22
SHOULDER SPACER MTD-938-0968
...
23
THRUST BEARING MTD-941-0405
...
24
SLEEVE SPACER .56 OD x 2.71 LG MTD-750-0705
...
25
V-Belt MTD-954-0453
...
26
Idler Pulley MTD-756-04209
...
27
TRANSMISSION PULLEY MTD-756-0650
...
28
DOUBLE ENGINE PULLEY W/WASHER MTD-956-1189A
...
29
Flat Idler Pulley MTD-756-04224
...
30
IDLER BRACKET MTD-783-0528
...
31
CABLE BRACKET MTD-783-0529
...
32
FRAME ASSEMBLY MTD-683-0149B
Schematic Image Zoomed
