Yard Man 13B-325-401 (2000) Lawn Tractor

Model: 13B-325-401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

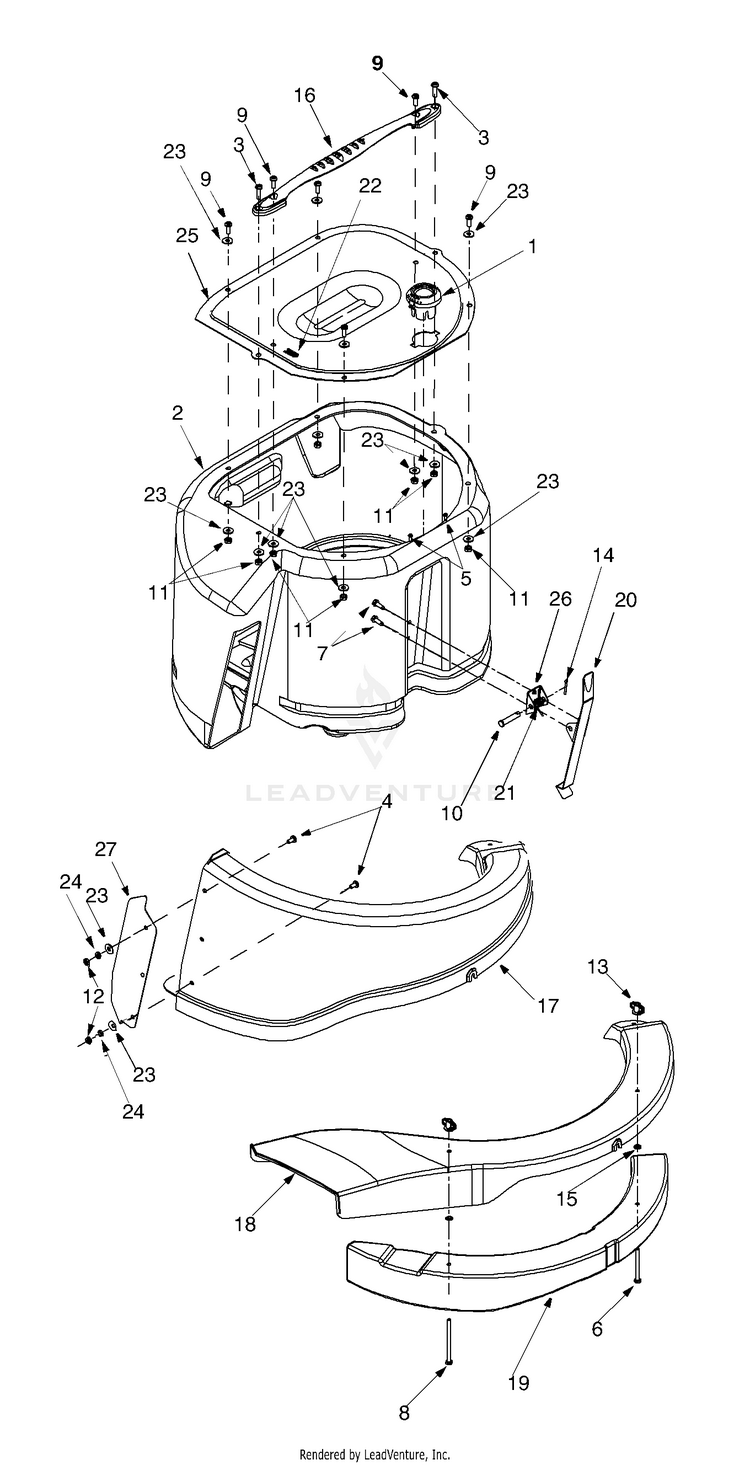

Bagger & Discharge

...
...
1
INDICATOR ASSEMBLY MTD-631-0060
...
2
GRASSBAG ASSEMBLY MTD-631-0080
...
3
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
4
Machine Screw 1/4-20 x 0.5" MTD-710-0286
...
5
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
6
Hex Screw 1/4-20 x 2.75" MTD-710-0564
...
7
Self-Tapping Screw 1/4-20 x 0.75" MTD-710-0642
...
8
Hex Screw 1/4-20 x 3.75" MTD-710-0825
...
9
Machine Screw 1/4-20 x 0.75" MTD-710-0924
...
10
Clevis Pin MTD-711-0415
...
11
Hex Sems Nut 1/4-20 MTD-712-0271
...
12
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
13
Wing Nut MTD-712-0397A
...
14
Cotter Pin MTD-714-0115
...
15
PUSH CAP MTD-926-0271
...
16
BAG HANDLE MTD-731-1441
...
17
DISCHARGE CHUTE MTD-731-1743A
...
18
SIDE DISCHARGE CHUTE MTD-731-1744
...
19
MULCH PLUG MTD-731-1745A
...
20
BAG RELEASE LEVER MTD-732-0839A
...
21
TORSION SPRING MTD-932-0841
...
22
SPRING CLIP MTD-732-0854
...
23
Flat Washer MTD-736-0173
...
24
L-Wash. 1/4" I.D. MTD-936-0329
...
25
BAG SCREEN MTD-783-0544A-0637
...
26
PIVOT BRAKET MTD-783-0575B-0637
...
27
PLATE-CHUT MTD-783-0645
