Yard Man 13B-325-401 (2000) Lawn Tractor

Model: 13B-325-401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

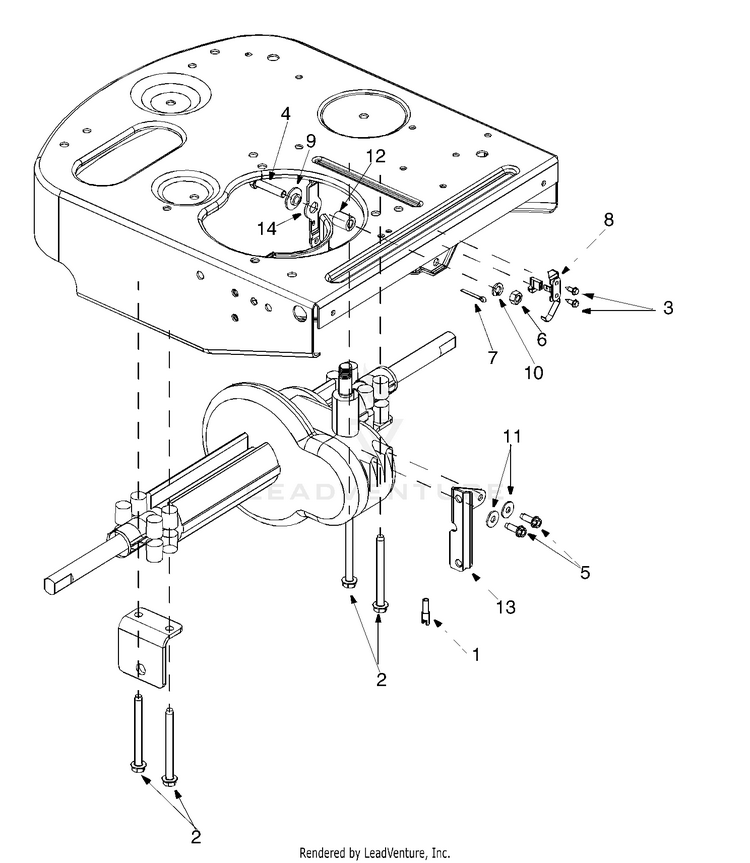

Transaxle Brackets

...
...
1
HARNESS ADAPTER MTD-629-0865
...
2
Hex TT Screw 5/16-18 x 3.50 MTD-710-1208
...
3
Hex Washer Head Self-Tap. Screw MTD-710-0227
...
4
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
5
Thd. Forming Scr. 1/4-20 x .75 MTD-710-0642
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Cotter Pin MTD-714-0115
...
8
Insulatop Nut Plate MTD-926-0320
...
9
Bushing, Shoulder, .320 ID x .135 MTD-936-0289
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Flat Washer .28 I.D. x .74 O.D. x .083 MTD-736-0173
...
12
SPACER MTD-950-1064
...
13
BRACKET-TR MTD-783-0591
...
14
SHIFT LEVER MTD-783-0433A
