Yard Man 13AX935T001 (2014) Lawn Tractor

Model: 13AX935T001 (2014)

Back To Assemblies

Save Part Not Listed?
product name

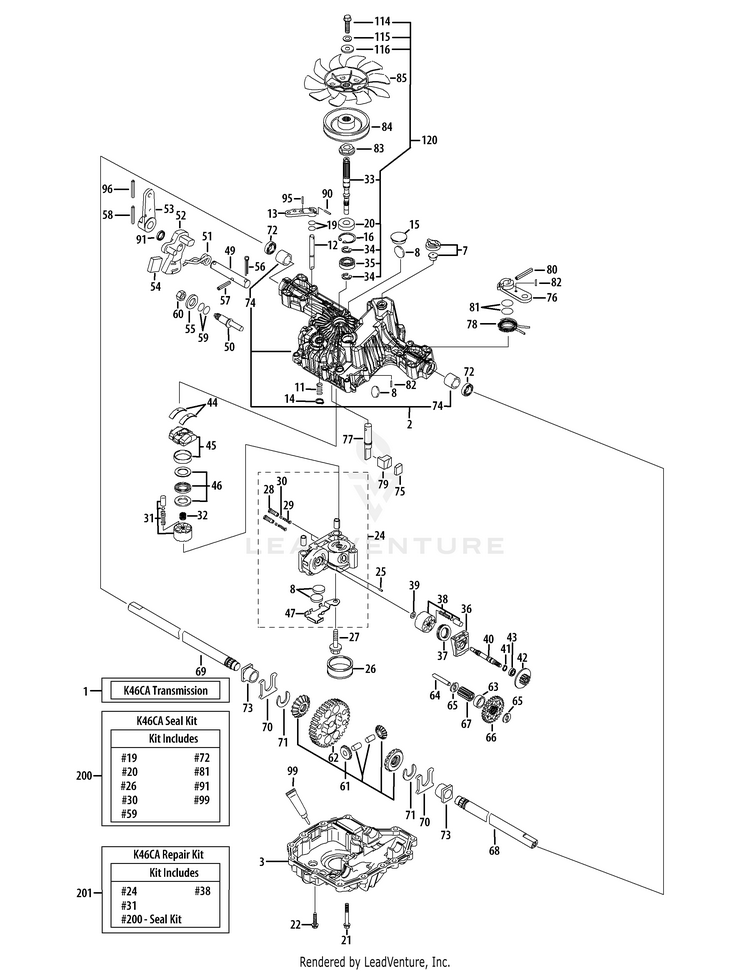

Hydrostatic Transmission (Tuff-Torq 618-05010)

...
...
1
SERVICE KIT-HYDRO TRANS (618-05010) MTD-753-10424
...
2
CASE ASSEMBLY-UPPER MTD-TT-1A646084431
...
3
LOWER HOUSING MTD-TT-1A646084240
...
7
Vent Valve 15 MTD-TT-168T2024250
...
8
Magnet MTD-TT-19216324360
...
11
Spring 25 MTD-TT-19215427281
...
12
Bypass Shaft A MTD-TT-1A646029510
...
13
Bypass Lever MTD-TT-1A632029520
...
14
SNAP RING MTD-TT-22242000100
...
15
SEALING CAP, STEEL MTD-TT-187T0136300
...
16
Snap Ring C 35 MTD-TT-22252000350
...
19
O-Ring 1A P10A MTD-TT-24311240100
...
20
SEAL 153507 MTD-TT-187T0134380
...
21
Tapping Screw 8 x 55 MTD-TT-26476080552
...
22
Tapping Screw 8 x 30 MTD-TT-26476080302
...
24
Kit, Center Case C MTD-TT-1A646099070
...
25
Pin 3 x 9.8 MTD-TT-19216824760
...
26
FILTER 105 MTD-TT-187Q1625221
...
27
Bolt 10 x 75 MTD-TT-168T2099990
...
28
IDS Valve 1.2 MTD-TT-1A646024800
...
29
SPRING-IDS MTD-TT-1A646024761
...
30
FILTER-IDS 300 MTD-TT-1A646024790
...
31
Kit, Cylinder Block (Pump) MTD-TT-168T2025090
...
32
Spring MTD-TT-1A646025200
...
33
Pump Shaft MTD-TT-1A646025230
...
34
E-RING MTD-TT-22272000120
...
35
BALL BEARING MTD-TT-1A646034790
...
36
Motor Housing MTD-TT-19216824210
...
37
Thrust Bearing 51106 MTD-TT-1A646034750
...
38
Kit, Cylinder Block MTD-TT-168T2025080
...
39
Washer 12 x 24 x 1 MTD-TT-19216825230
...
40
Motor Shaft MTD-TT-1A646025271
...
41
Snap Ring C15 MTD-TT-19215425310
...
42
Brake Disc/Motor Gear (11T) MTD-TT-1A646025400
...
43
BALL BEARING MTD-TT-1A646034780
...
44
Thrust, Plastic MTD-TT-187T0027060
...
45
SWASH PLATE CMP MTD-TT-168T2084570
...
46
Kit, Thrust Bearing (Pump) MTD-TT-19216399000
...
47
Magnet Holder MTD-TT-1A646029010
...
49
Control Shaft MTD-TT-1A646029911
...
50
Fulcrum MTD-TT-168T2029920
...
51
Torsion Spring, Standard MTD-TT-168T2029800
...
52
Control Arm A MTD-TT-1A646029740
...
53
Control Lever F MTD-TT-1A646029400
...
54
Jerky Plate MTD-TT-168T2029360
...
55
Washer 12 MTD-TT-22137120000
...
56
Cotter Pin 1/8" x 3/4" MTD-TT-1A646029940
...
57
Spring Pin 6 x 36 MTD-TT-22351060036
...
58
Roll Pin 6 x 40 MTD-TT-22351060040
...
59
O-Ring P14 MTD-TT-24311000140
...
60
Nut 12 MTD-TT-26776120002
...
61
Diff Gear Kit MTD-TT-1A646031570
...
62
Final Gear (54T) MTD-TT-1A646033520
...
63
Final Pinion Collar MTD-TT-1A646033250
...
64
Reduction Shaft MTD-TT-1A646033410
...
65
Washer 12 x 32 x 3.2 MTD-TT-19216833420
...
66
Reduction Gear (37T) MTD-TT-1A646033450
...
67
Final Pinion Gear (10T) MTD-TT-168T2033540
...
68
Axle Shaft, Left MTD-TT-1A646034370
...
69
Axle Shaft, Right MTD-TT-1A646034380
...
70
Thrust Washer MTD-TT-19216334261
...
71
Ring 17 MTD-TT-19216834270
...
72
Seal 19 x 32 x 8 MTD-TT-187T0134280
...
73
Bushing 19 x 25 MTD-TT-19216834350
...
74
AXLE BUSHING MTD-TT-1A646034500
...
75
Brake Shoe MTD-TT-1A646036121
...
76
Brake Lever MTD-TT-1A646036160
...
77
Brake Shaft MTD-TT-1A646036171
...
78
Brake Return Spring MTD-TT-168T2036180
...
79
Brake Actuator MTD-TT-1A646036200
...
80
Spring Pin 5 x 32 MTD-TT-22351050032
...
81
O-Ring 1A P12 MTD-TT-24311000120
...
82
Spring Pin 4 x 16 MTD-TT-22351040016
...
83
Spline Collar MTD-TT-1A646025300
...
84
Pulley B MTD-TT-1A646025760
...
85
Fan, Black MTD-TT-1A646083070
...
90
Spring Pin 3.0A x 20 MTD-TT-22351030020
...
91
Oil Seal 16 x 22 x 03 MTD-TT-1A646024440
...
95
Spring Pin 3.0A x 16 MTD-TT-22351030016
...
96
Roll Pin 3.5 x 40 MTD-TT-22351035040
...
99
Sealant (purchase locally) MTD-NA
...
114
Bolt MTD-TT-1A646083090
...
115
Lock Washer MTD-TT-1A646083100
...
116
Washer MTD-TT-1A646083110
...
120
Pump Shaft/Bearing Kit MTD-TT-1A646099980
...
200
SEAL KIT (Incl. 19, 20, 26, 30, 59, 72,81, 91 & 99) MTD-TT-1A646098240
...
201
REPAIR KIT (W/OIL) (Incl. 24, 31, 38 & 200) MTD-TT-1A646098450
