Yard Man 13AX915T001 (2013) Lawn Tractor

Model: 13AX915T001 (2013)

Back To Assemblies

Save Part Not Listed?
product name

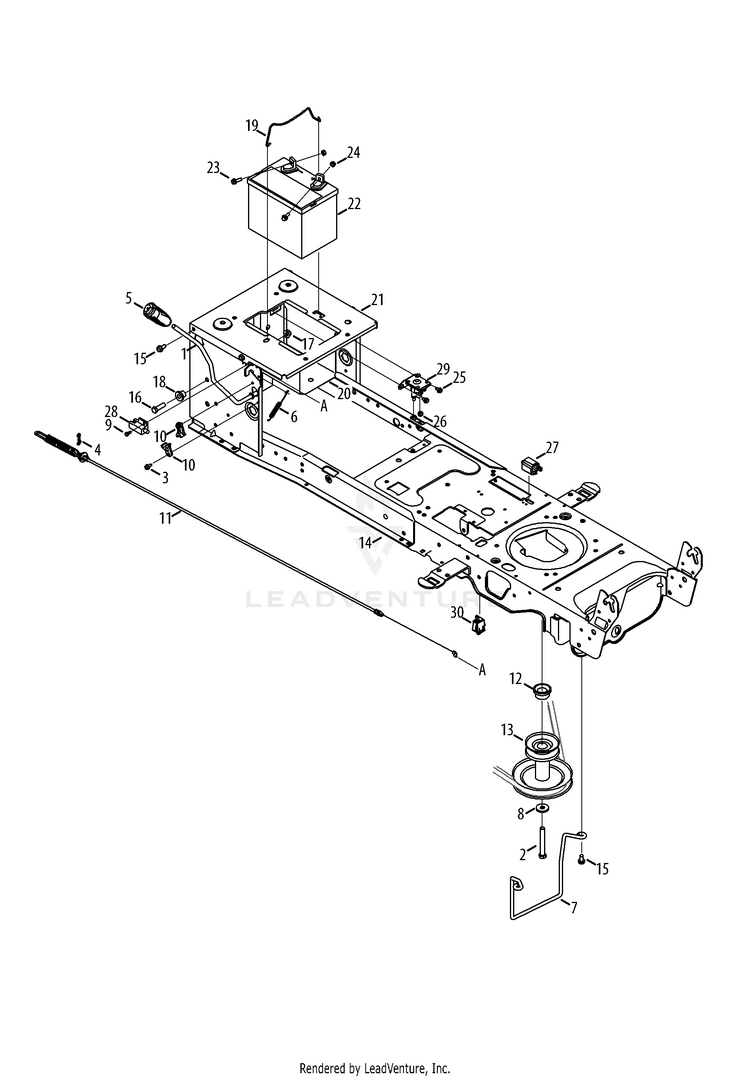

Manual PTO & Battery

...
...
1
Handle Ass’y, PTO MTD-647-04151
...
2
Hex Screw, 7/16-20, 3.50, Gr5, Lock MTD-710-04379A
...
3
Screw, Self-tapping, 1/4-20, 0.50 MTD-710-0599
...
4
Pin, Cotter, Bow-Tie 72 MTD-714-04040
...
5
Grip, Handle, 3/8 MTD-720-04049A
...
6
Spring, Ext, .38 Dia x 5.6 MTD-732-0932
...
7
Belt Keeper Rod MTD-747-05171A
...
8
Washer, Flat, .450 x 1.250 x .164 MTD-736-0322
...
9
Screw, Shoulder, #10-32, .500 MTD-738-04237A
...
10
Bearing, PTO MTD-741-04119A
...
11
Cable, Engag, Deck MTD-946-04618C
...
12
Spacer, 1.010 x 1.400 x .825 MTD-750-0956
...
13
ENGINE PULLEY (3.56 x 6.12 DIA) MTD-956-04067B
...
14
LOWER FRAME ASSEMBLY(POWDER BLACK) MTD-683-04469D-0637
...
15
SCREW 5/16-18 x .750 MTD-710-04484
...
16
Hex Screw, 3/8-16, 1.25, Gr5, Std MTD-710-3005
...
17
Nut, Flange Lock, 3/8-16, Grf, MTD-712-04065
...
18
Spacer, Shoulder, .38 x 1.0 x .70 MTD-738-04058
...
19
Rod, Battery MTD-747-04121A
...
20
BATTERY TRAY MTD-783-0349-0637
...
21
Bracket, Frame, Seat MTD-783-06089-0709
...
22
BATTERY MTD-925-1707D
...
23
Hex Flange Screw, 1/4-20, .75, Gr5 MTD-710-04666
...
24
Nut, Sems, 1/4-20 MTD-712-0271
...
25
Screw, Self-tapping, 1/4-20, 0.375, MTD-710-0653
...
26
Nut, Flange Lock, 1/4-20, Grf, MTD-712-04064
...
27
Switch, 3-Pole MTD-725-04232
...
28
Switch, Interlock MTD-725-04363
...
29
12V SOLENOID MTD-725-04439B
...
30
Switch, Plunger, Snap Mount MTD-725-04807
...
xx
Wire Harness, Main (not shown) MTD-925-04105
