Yard Man 13AX694G401 (1997) Lawn Tractor

Model: 13AX694G401 (1997)

Back To Assemblies

Save Part Not Listed?
product name

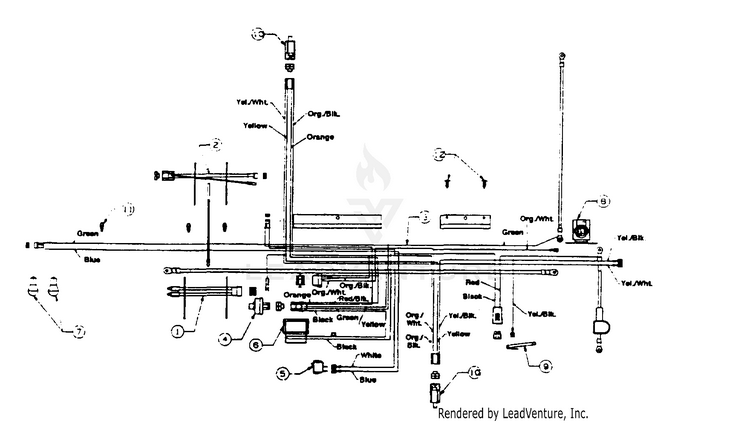

Electrical & Switches

...
...
1
Ratchet MTD-726-3046
...
2
Safety Switch MTD-925-1657A
...
3
Solenoid MTD-925-1426A
...
4
Miniature Lamp 12V Socket Type (Headlight) MTD-925-0963
...
5
Ammeter MTD-925-0925
...
6
Light Switch MTD-925-0634
...
7
Ignition Switch MTD-925-0267B
...
8
HARNESS ASSEMBLY Code N MTD-629-0303A
...
9
HARNESS ADAPTER MTD-629-0209
...
10
HARNESS ASSEMBLY-MONIT (Monitor) MTD-629-0132
...
11
UNKNOWN MTD-NA
...
12
UNKNOWN MTD-NA
