Yard Man 13AX694G401 (1997) Lawn Tractor

Model: 13AX694G401 (1997)

Back To Assemblies

Save Part Not Listed?
product name

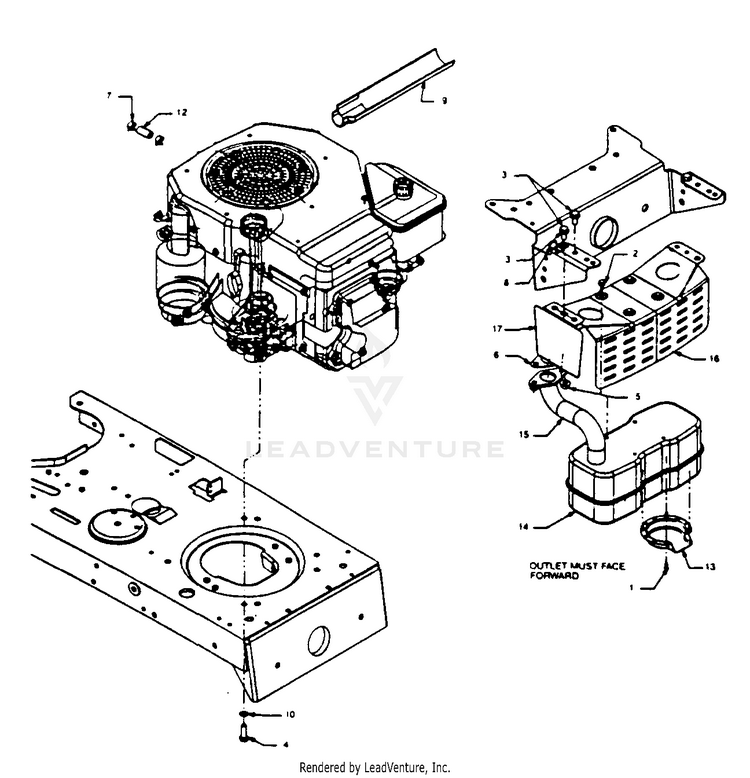

Engine Muffler & Engine, External

...
...
1
Hex Tap Scr. #8-32 x .38" Lg. MTD-710-0148
...
2
Hex Wash. TT-Tap Scr. 1/4-20 x 5" Lg. MTD-710-0599
...
3
Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Hex Bolt M8 x 1.25 MTD-710-3206A
...
5
Hex Flange Nut M8 Thd. MTD-712-3086
...
6
Gasket, Exhaust Manifold MTD-KH-12-041-03
...
7
Hose Clamp MTD-726-0205
...
8
Clamp MTD-726-0272
...
9
Oil Drain Sleeve MTD-731-1682A
...
10
External L-Wash. 5/16" I.D. MTD-736-0607
...
12
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
13
Muffler Deflector MTD-751-0564B
...
14
Single Inlet Muffler MTD-951-0617C
...
15
EXHAUST PIPE MTD-751-0621A
...
16
Muffler Heat Shield MTD-783-0615E-0637
...
17
SHIELD BRACKET MTD-783-0385
