Yard Man 13AX605G755 (2006) Lawn Tractor

Model: 13AX605G755 (2006)

Back To Assemblies

Save Part Not Listed?
product name

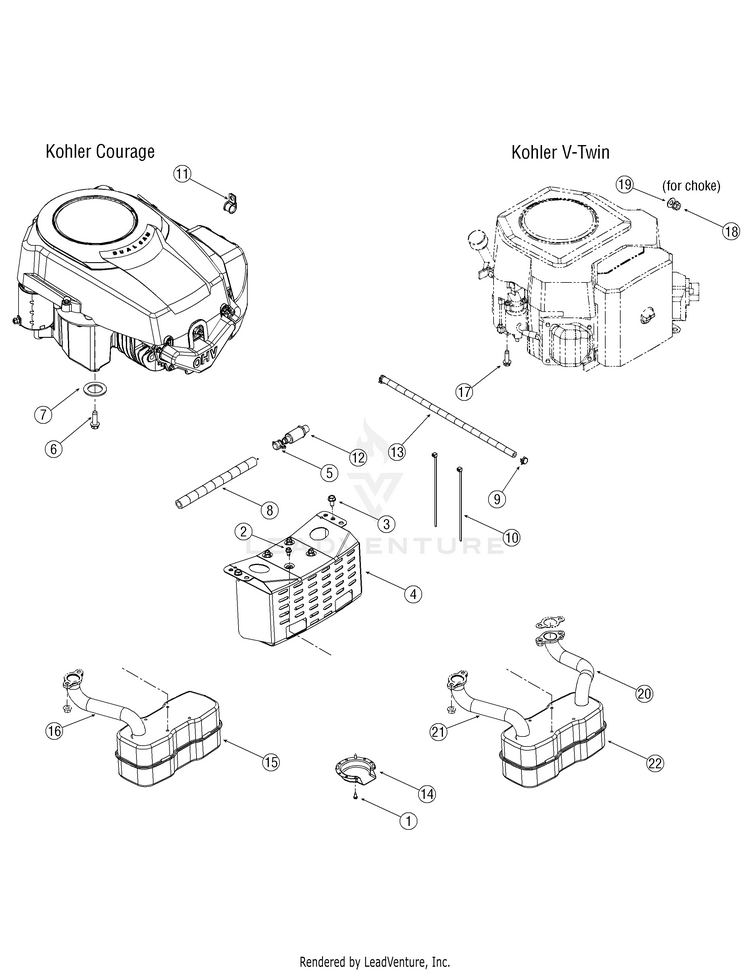

Engine Accessories

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
AB Screw 5/16-12 x 0.5 MTD-710-0726
...
4
Muffler Heat Shield MTD-783-0615E-0637
...
5
Oil Drain Cap MTD-751-3142
...
6
TT Screw 3/8-16 x 1.00 MTD-710-0654A
...
7
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
8
Oil Drain Hose MTD-751-3141-14
...
9
Hose Clamp MTD-726-0205
...
10
Cable Tie MTD-725-0157
...
11
Clamp MTD-726-0272
...
12
Oil Drain Valve MTD-951-10517A
...
13
Fuel Line Hose MTD-751-10349
...
14
Muffler Deflector MTD-751-0564B
...
15
Single Inlet Muffler Kohler Single MTD-951-0617C
...
16
EXHAUST PIPE (KOHLER SINGLE) MTD-751-10047
...
17
Screw, 3/8-16 x 1.250 MTD-710-1315
...
18
Flange Lock Nut, 3/8-16 MTD-712-3005
...
19
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
20
LH Exhaust Pipe MTD-751-0644B
...
21
EXHAUST PIPE (RH) MTD-751-0645A
...
22
MUFFLER (KOHLER TWIN) Kohler V-Twin MTD-951-0805A
