Yard Man 13AX604G402 (1999) Lawn Tractor

Model: 13AX604G402 (1999)

Back To Assemblies

Save Part Not Listed?
product name

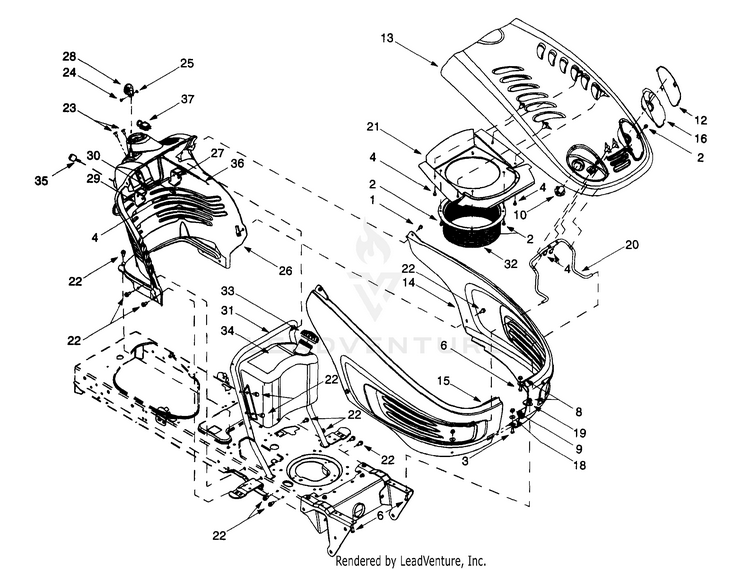

Hood Style/Fuel Tank

...
...
1
Self Tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
2
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
Self Tapping Screw, 1/4-15 x .75 MTD-710-0895
...
?5
Pan Phillips Screw, 1/4-20 x .75 MTD-710-0924
...
6
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
?7
U-type Speed Nut, 1/4-20 MTD-712-0292
...
8
HEX FLANGE NUT MTD-712-3004A
...
9
LOCK NUT 1/4 MTD-912-3027
...
10
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
?11
RH Head Light Lens Style 4 MTD-931-1978
...
12
HEADLIGHT LENS (LH) MTD-931-1979
...
13
HOOD 4-STYLE (YARD-MAN YELLOW) MTD-931-1980B
...
14
KIT (LH)&(RH) SIDE PAN MTD-753-0858
...
15
SIDE PANEL KIT (LH)&(RH) MTD-731-1982
...
16
LABEL-LENSE MTD-777X41432
...
?17
LABEL-LENSE MTD-777X41432
...
18
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
19
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
20
HOOD SUPPORT ROD MTD-747-1132A
...
21
HEAT SHIELD MTD-783-0808A-0637
...
22
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
23
Torx Self Tapping Screw, 1/4-14 x .625 MTD-710-1017
...
24
Torx Screw, #8-32 x .375 MTD-710-3217
...
25
Hex Nut, 8-32 MTD-712-0142
...
26
DASH PANEL MTD-731-0071E
...
27
LEVER-DASH BRAKE MTD-731-0072
...
28
Throttle Control Lever MTD-731-1857
...
29
BUTTON-CRUISE CONT MTD-731-2106
...
30
BRAKE/CRUISE PIVOT ROD MTD-747-1155
...
31
DASH SUPPORT TUBE MTD-749-1087A-0637
...
32
INTAKE BELLOW (Kohler and Intek Single) MTD-731-2232A
...
xx
INTAKE BELLOW (Intek Twin) MTD-731-2234A
...
33
TANK CAP (For Two Gallon Tank, Shown) MTD-751-0603B
...
xx
FUEL CAP (For Three Gallon Tank) MTD-751-0649
...
34
Fuel Tank 2 Gal. (Two Gallon, Shown) MTD-751-0659D
...
xx
FUEL TANK (Three Gallon) MTD-751-0658
...
35
Key MTD-925-1745A
...
36
Throttle Cable (Intek Single) MTD-946-1084
...
xx
Choke Cable 39" Lg. (Intek Twin) MTD-946-1085A
...
xx
Choke Cable 23" Lg. (Kohler) MTD-946-1088
...
37
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
