Yard Man 13AX604G401 (2001) Lawn Tractor

Model: 13AX604G401 (2001)

Back To Assemblies

Save Part Not Listed?
product name

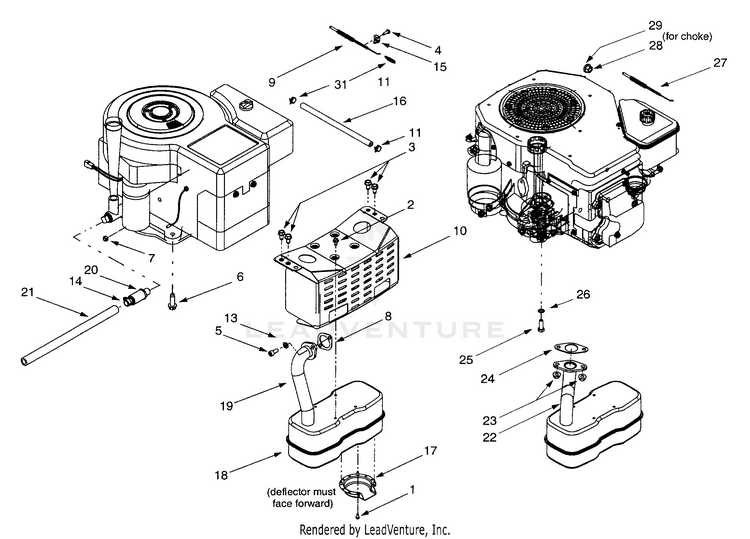

Engine Accessories

...
...
1
Self-tapping Screw, #8-18 x .5 MTD-710-0227
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Screw, #10-32 x .625 (Model D604G) MTD-710-1237
...
5
Socket Screw, 5/16-18 x .750 (Model D604G) MTD-710-1314A
...
6
Self-tapping Screw (Model D604G) MTD-710-1315
...
7
Sems Nut, 1/4-20 (Model D604G) MTD-712-0271
...
8
Gasket-Exhaust (Model D604G) MTD-BS-692236
...
9
Throttle Cable (Model D604G) MTD-946-1084
...
10
Muffler Heat Shield MTD-783-0615E-0637
...
11
Hose Clamp MTD-726-0205
...
?12
EXTENSION SPRING (Model D604G) MTD-732-0966
...
13
Lock Wash. 5/16" I.D. (Model D604G) MTD-936-0119
...
14
Oil Drain Cap MTD-751-3142
...
15
Cable Clamp (B&S) (Model D604G) MTD-BS-690798
...
16
Fuel Line Hose MTD-751-0535
...
17
Muffler Deflector MTD-751-0564B
...
18
Single Inlet Muffler MTD-951-0617C
...
19
EXHAUST PIPE (Model D604G) MTD-751-0619B
...
20
Oil Drain Valve MTD-951-10517A
...
21
Oil Drain Hose MTD-751-3141-14
...
22
EXHAUST PIPE (Model X604G) MTD-751-0621A
...
23
Flange Nut, 8mm (Model X604G) MTD-712-3086
...
24
Gasket, Exhaust Manifold (Model X604G) MTD-KH-12-041-03
...
25
Hex Cap Screw, 8mm (Model X604G) MTD-710-3206A
...
26
External Lock Washer (Model X604G) MTD-736-0607
...
27
Throttle Cable (Kohler) (Model X604G) MTD-946-1087
...
28
HEX NUT 3/8-16 GR5 (Model X604G) MTD-712-3017
...
29
Flat Washer (Model X604G) MTD-736-0300
...
31
UNKNOWN MTD-NA
