Yard Man 13AX604G401 (2001) Lawn Tractor

Model: 13AX604G401 (2001)

Back To Assemblies

Save Part Not Listed?
product name

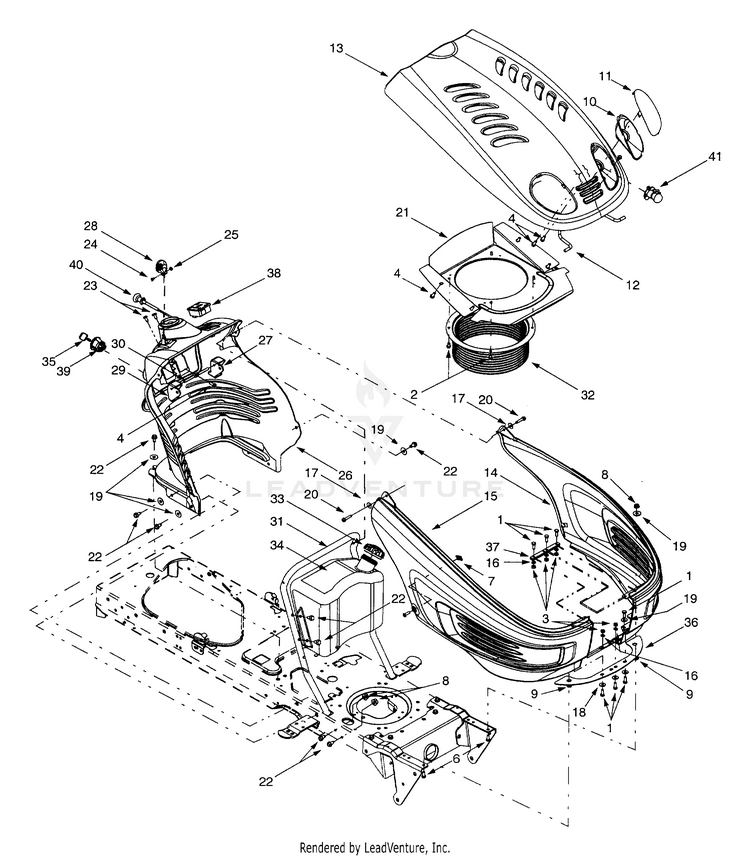

Hood, Fuel Tank & Electrical

...
...
1
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
HEX NUT MTD-712-3006
...
4
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
?5
Pan Phillips Screw, 1/4-20 x .75 MTD-710-0924
...
6
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
7
U-type Speed Nut, 1/4-20 MTD-712-0292
...
8
HEX FLANGE NUT MTD-712-3004A
...
9
Speed Nut MTD-726-0201
...
10
LABEL-LENSE MTD-777X41432
...
xx
LABEL-LENSE MTD-777X41432
...
11
RH Head Light Lens Style 4 MTD-931-1978
...
xx
HEADLIGHT LENS (LH) MTD-931-1979
...
12
HOOD SUPPORT ROD MTD-747-1132A
...
13
HOOD 4-STYLE (YARD-MAN YELLOW) MTD-931-1980B
...
14
SIDE PANEL 4 STYLE (LH) MTD-931-04958
...
15
SIDE PANEL 4-STYLE (RH) MTD-931-1982C
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Flat Washer, .283 x .75 x .030 MTD-736-0342
...
18
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
19
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
20
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-0809
...
21
HEAT SHIELD MTD-783-0808A-0637
...
22
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
23
Torx Self-tapping Screw, 1/4-14 x .625 MTD-710-1017
...
24
Torx Screw, #8-32 x .375 MTD-710-3217
...
25
Hex Nut, 8-32 MTD-712-0142
...
26
DASH PANEL MTD-731-0069
...
27
LEVER-DASH BRAKE MTD-731-0072
...
28
Throttle Control Lever MTD-731-1857
...
29
BUTTON-CRUISE CONT MTD-731-2106
...
30
BRAKE/CRUISE PIVOT ROD MTD-747-1155
...
31
DASH SUPPORT TUBE MTD-749-1087A-0637
...
32
INTAKE BELLOW MTD-731-2232A
...
33
TANK CAP MTD-751-0603B
...
34
Fuel Tank 2 Gal. MTD-751-0659D
...
35
Key MTD-925-1745A
...
xx
Key MTD-925-1745A
...
36
HEAT SHIELD MTD-731-2272
...
37
GRILLE BRACKET MTD-783-1000A
...
38
INDICATOR MONITOR MTD-925-1976
...
39
Ignition Switch MTD-925-1741
...
40
Choke Cable 23" Lg. (Model X604G Only) MTD-946-1088
...
41
Headlight Assembly MTD-925-0051
...
xx
HEADLIGHT HARNESS (Not Shown) MTD-929-0469B
...
xx
Tractor Wire Harness (Not Shown) MTD-929-1071
