Yard Man 13AT614H401 (2003) Lawn Tractor

Model: 13AT614H401 (2003)

Back To Assemblies

Save Part Not Listed?
product name

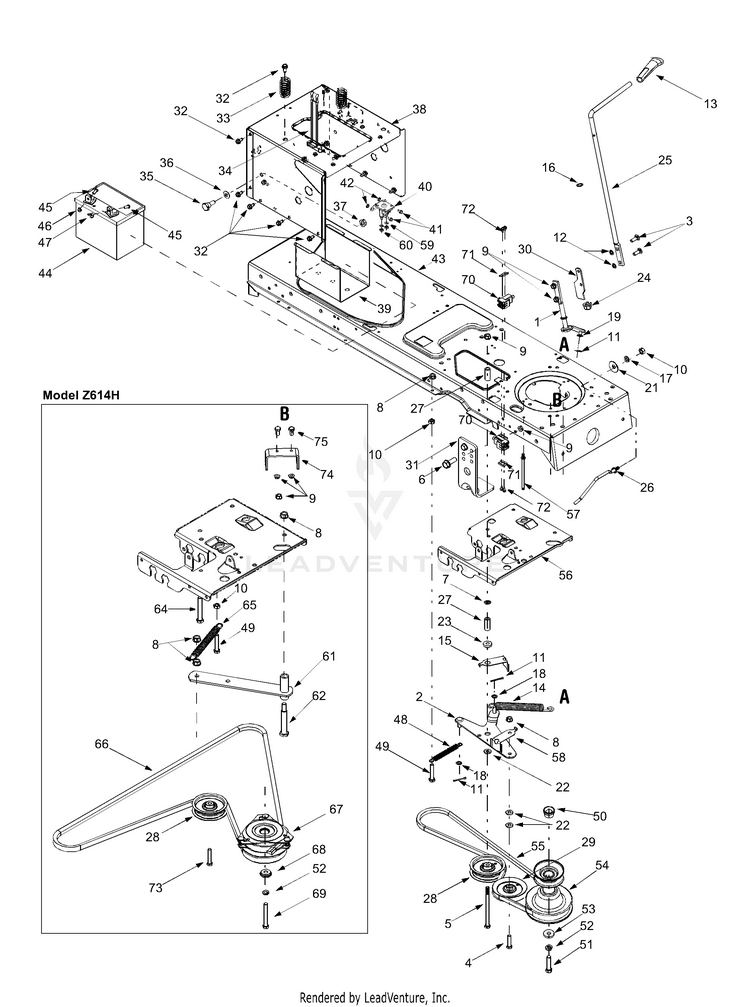

PTO, Battery, Frame

...
...
1
ENGAGEMENT LEVER ASSEMBLY MTD-647-0064
...
2
ENGAGEMENT PLATE ASSEMBLY MTD-683-0450
...
3
Carriage Screw, 5/16-18 x 1.00 MTD-710-0276
...
4
Hex Cap Screw, 3/8-16 x 1.5 MTD-710-0520
...
5
SCREW 3/8-16 x 5.5" GR5 MTD-710-0831
...
6
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
7
Push Nut, 3/8 MTD-712-0229
...
8
Flange Lock Nut 3/8-16 MTD-912-0431
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
12
Speed Nut, .3125 MTD-726-0201
...
13
PTO KNOB MTD-731-2111B
...
14
Extension Spring, .75 x 6.75 MTD-732-1170
...
15
BELT GUARD MTD-732-0991A
...
16
Flat Washer, .510 x .750 x .033 MTD-736-0108
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
19
FLAT WASHER MTD-736-0275
...
?20
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
21
Bell Washer, .39 x 1.13 x .062 MTD-736-0242
...
22
Flat Washer, .407 x .812 x .135 MTD-736-3010
...
23
Shoulder Spacer, .380 ID MTD-738-0372B
...
24
Hex Split Flange Bearing, .5 MTD-741-0708
...
25
PTO ENGAGEMENT HANDLE MTD-747-1112D-0637
...
26
BELT KEEPER ROD MTD-747-1286A
...
27
SPACER .385ID x 1.54" MTD-748-0415B
...
28
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
29
Idler Pulley, 4.0 MTD-756-1208
...
30
Engagement Stop MTD-783-0744A
...
31
DECK UP STOP BRACKET MTD-783-04467-0637
...
32
Self-Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
33
Compression Spring, 1.28 x 3.25 MTD-732-04035
...
34
BATTERY STRAP MTD-723-0444
...
35
Shoulder Screw, .625 x .5, 7/16-20 MTD-738-1020
...
36
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
37
Flange Lock Nut, 7/16-20 MTD-712-0459
...
38
UPPER HITCH PLATE MTD-783-1031A
...
39
BATTERY TRAY MTD-783-0349
...
40
Solenoid MTD-925-1426A
...
41
Self-Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
42
Lock Washer, 1/4 MTD-736-0222
...
43
LOWER FRAME ASSEMBLY MTD-683-0304C
...
44
BATTERY MTD-925-1707D
...
45
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
46
Hex Sems Nut, 1/4-20 MTD-712-0271
...
47
NUT, 1/4 WING MTD-712-3044
...
48
SPR:EXTN:.50 DIA X 5.0 LG MTD-732-04197
...
49
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
50
Spacer MTD-750-0956
...
51
Hex Head Cap Screw, 7/16-20 x 1.25 MTD-710-3029
...
52
Lock Washer, 7/16 MTD-736-0171
...
53
Flat Washer, .450 x 1.25 MTD-736-0322
...
54
Engine Pulley, 3.56 OD x 5.56 MTD-756-0983B
...
55
PTO Belt MTD-954-0497
...
56
Steering Support Bracket MTD-783-04612-0637
...
57
Belt Guard Pin MTD-711-1044A
...
58
Belt Guard MTD-732-1013A
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
HEX NUT MTD-712-3006
...
61
IDLER BRACKET ASSEMBLY MTD-683-0297
...
61
BRACKET-DOUBLE IDLER PWR BL MTD-683-0251
...
62
Shoulder Bolt MTD-938-3056
...
?63
Hex Screw 3/8-16 x 2.5 MTD-710-3144
...
64
Hex Screw 3/8-16 x 2.5 MTD-710-0859
...
65
Extension Spring MTD-732-0978
...
66
PTO Belt (46-inch Decks) (Model Z614H) MTD-954-0474
...
67
Electric PTO Clutch (Model Z614H) MTD-917-1708
...
68
Shld. Spacer .445" I.D. MTD-938-0785
...
69
Screw, Hx. Hd., 7/16-20 x 3.25 MTD-710-3157A
...
70
Safety Switch MTD-925-1657A
...
71
Switch Plate MTD-17962
...
72
Screw #10-16 x 0.5 MTD-710-024
...
73
Hex Cap Screw 3/8-16 x 2.0 MTD-710-3144
...
74
CLUTCH BRACKET (Model Z614H) MTD-783-1003-0637
...
75
Hex Cap Screw 5/16-18 x 0.625 MTD-710-3025
