Yard Man 13AT605G755 (2005) Lawn Tractor

Model: 13AT605G755 (2005)

Back To Assemblies

Save Part Not Listed?
product name

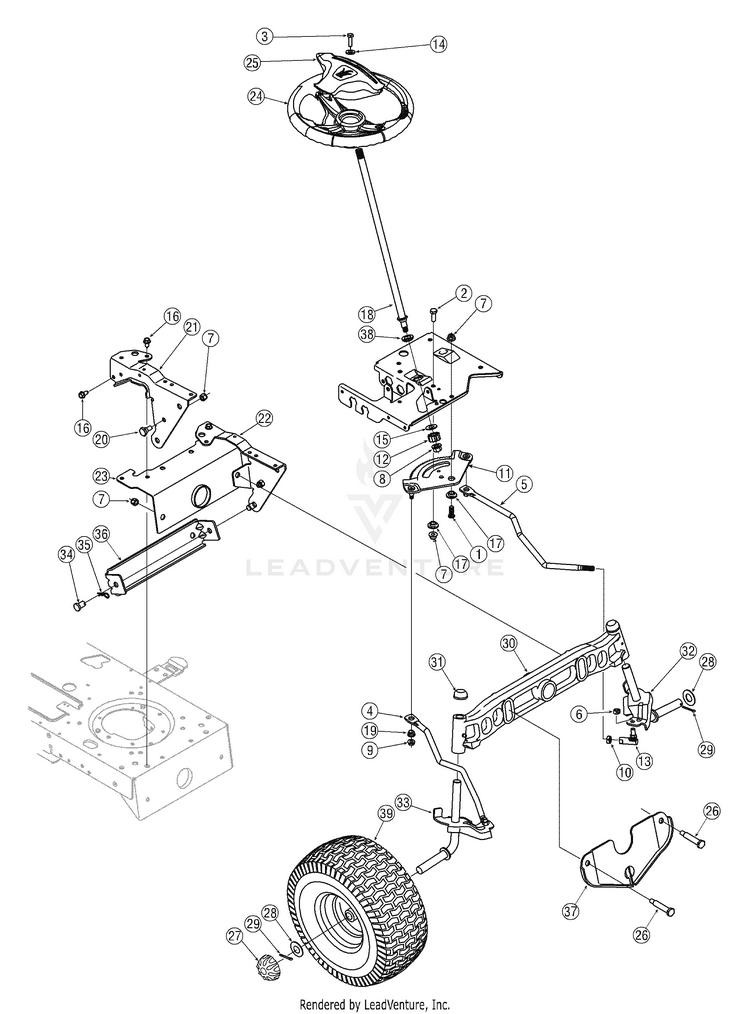

Steering

...
...
1
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-04095
...
2
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-0514
...
3
Hex Screw, 5/16-18, 1.00, Gr5 MTD-710-0643
...
4
DRAG LINK (RH) MTD-711-1408
...
5
DRAG LINK (LH) MTD-711-1409A
...
6
Nut, Hex Lock, 3/8-24 MTD-712-0214
...
7
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
8
Nut, Flange Lock, 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Hex Jam Nut 7/16-20 MTD-912-0240
...
11
GEAR:STRG:11/90 RATIO MTD-717-1550F
...
12
Gear, Pinion, Steering MTD-717-1554
...
13
Ball Joints MTD-923-0448A
...
14
Washer, Flat,.406 x.875 x.105 MTD-736-3004
...
15
Washer, Flat,.51 x 1.12 x.06 MTD-736-3084
...
16
Screw, 5/16-12, 0.750 MTD-710-0726
...
17
Spacer, Shoulder,.38 x 1.00 x.31 MTD-738-04154
...
18
Shaft, Steering,.625 OD x 24.25 Lg MTD-738-1001A
...
19
BUSHING .380 ID MTD-941-0475
...
20
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
21
PIVOT SUPPORT BRACKET (RH) MTD-783-0726E
...
22
PIVOT SUPPORT BRACKET (LH) MTD-783-0727D
...
23
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-0728B-0637
...
24
STEERING WHEEL MTD-631-04008B
...
25
STEERING WHEEL COVER (Model 604) MTD-731-04065A
...
25
STEERING WHEEL CAP (Model 605) MTD-731-04040
...
26
SHOULDER SCREW .500X2.38X3/8-16 (42" Deck) MTD-738-04128
...
26
SHOULDER SCREW .50 x 2.23 3/8-16 (46" Deck) MTD-738-1011A
...
27
HUB CAP MTD-731-2290B
...
28
Flat Washer,.78 x 1.589 x.06 MTD-736-0316
...
29
COTTER PIN-5/32 DIA MTD-714-0162
...
30
CAST PIVOT BAR AXLE MTD-919-04177E
...
31
Push Cap MTD-726-0341
...
32
LH Axle Assembly, .750 (42" Deck) MTD-938-04006A-0637
...
32
AXLE ASSEMBLY (.750) (LH) (46" Deck) MTD-638-04003AP
...
33
RH Axle Assembly, .750 (42" Deck) MTD-938-04005A-0637
...
33
RH Axle Assembly, .750 (46" Deck) MTD-938-04004A
...
34
Clevis Pin (46" Deck) MTD-911-0332
...
35
COTTER PIN (46" Deck) MTD-714-04023
...
36
Deck Stabilizer Bracket (46" Deck) MTD-783-0720C
...
37
DECK HANGER BRACKET (42" Deck) MTD-783-04568
...
38
BRG:HEX FLNG 5/8 MTD-941-0656A
...
39
WHEEL ASSEMBLY (15 x 6 x 6) (42" Deck) MTD-634-05067
...
xx
Wheel Assembly, 42" Sq. Tred (46" Deck) MTD-634-05067-0911
...
xx
TIRE 15X6-6BRAND (42" Deck) MTD-734-1731
...
xx
Tire Only (46" Deck) MTD-734-1731-0901
...
xx
RIM ASSEMBLY (6 X 4.5) MTD-634-05066
