Yard Man 13AT604H701 (2004) Lawn Tractor

Model: 13AT604H701 (2004)

Back To Assemblies

Save Part Not Listed?
product name

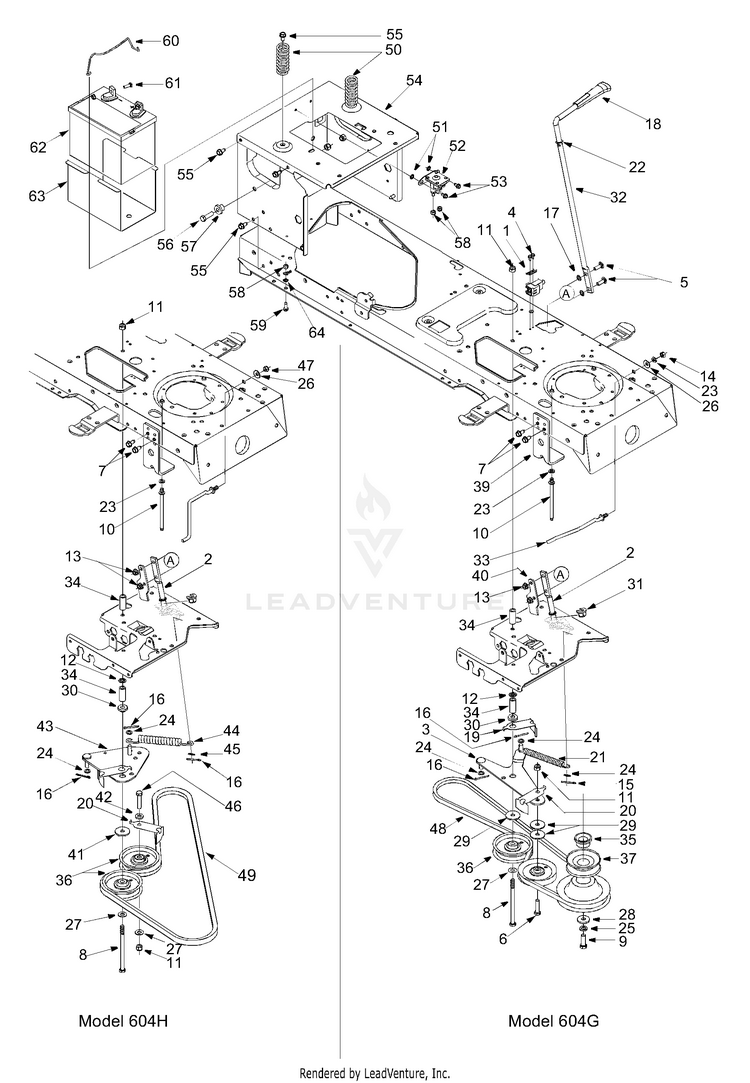

PTO, Battery, Frame 1

...
...
1
Switch Plate MTD-17962
...
2
ENGAGEMENT LEVER ASSEMBLY MTD-647-0064
...
3
ENGAGEMENT PLATE ASSEMBLY MTD-683-0450
...
4
AB Screw #10-16 x 0.5 MTD-910-0224
...
5
Carriage Screw: Special MTD-710-0276
...
6
Hex Bolt 3/8-16 x 1.5 MTD-710-0520
...
7
AB Screw 5/16-12 0.75 MTD-710-0726
...
8
SCREW 3/8-16 x 5.5" GR5 MTD-710-0831
...
9
Hex Bolt 7/16-20 x 1.25 MTD-710-3029
...
10
Belt Guard Pin MTD-711-1044A
...
11
Lock Nut MTD-712-0130
...
12
Push Nut MTD-712-0229
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hairpin Clip MTD-714-0104
...
16
Cotter Pin 1/8" Dia. MTD-714-0470
...
17
Speed Nut MTD-726-0201
...
18
PTO KNOB MTD-731-2111B
...
19
BELT GUARD MTD-732-0991A
...
20
Belt Guard MTD-732-1013A
...
21
Extension Spring MTD-732-1170
...
22
Flat Washer MTD-936-0108
...
23
Lock Washer MTD-936-0119
...
24
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
25
Lock Washer MTD-936-0171
...
26
Bell Washer MTD-736-0242
...
27
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
28
Flat Washer MTD-736-0322
...
29
Flat Washer, .406 x 1.5 x 11 gauge MTD-736-3039
...
30
Spacer No Longer Available MTD-736-0372B
...
31
Hex Split Flange Bearing MTD-741-0708
...
32
PTO ENGAGEMENT HANDLE MTD-747-1112D-0637
...
33
BELT KEEPER ROD MTD-747-1286A
...
34
SPACER .385ID x 1.54" MTD-748-0415B
...
35
Spacer MTD-750-0956
...
36
Idler Pulley MTD-756-0627D
...
37
Engine Pulley, 3.56 OD x 5.56 Dia., 42" deck 42" deck MTD-756-0982B
...
37
ENGINE PULLEY:3.39 x 6.1 46" deck MTD-756-04142
...
38
Idler Pulley MTD-756-1208
...
39
DECK UP STOP BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04467
...
40
Bracket: Stop *CHOOSE COLOR WHEN ORDERING* MTD-783-0744A
...
41
Flat Washer No Longer Available MTD-738-0227
...
42
Flat Washer MTD-736-3010
...
43
Engagement Plate Assembly MTD-683-0302
...
44
Extension Spring MTD-732-0944
...
45
FLAT WASHER MTD-736-0275
...
46
Hex Bolt 3/8-16 x 1.75 MTD-710-0347
...
47
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
48
V-BELT A SEC x 60.5'' 42" Deck MTD-954-0497
...
49
V-BELT:A SEC x 90.0 46" Deck MTD-954-04122
...
49
V-BELT A-SEC x 67.2'' 46" Deck MTD-954-0486A
...
50
Compression Spring MTD-732-04035
...
51
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
52
Solenoid MTD-925-1426A
...
53
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
54
SEAT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04329A
...
55
AB Screw 5/16-12 MTD-710-0726
...
56
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
57
Shoulder Spacer MTD-738-04058
...
58
Lock Nut 1/4-20 MTD-712-0324
...
59
TT Screw 1/4-20 x 0.75 MTD-710-0642
...
60
Battery Hold-Down Rod MTD-747-04121A
...
61
Carriage Screw MTD-710-0703
...
62
BATTERY MTD-925-1707D
...
63
BATTERY TRAY *CHOOSE COLOR WHEN ORDERING* MTD-783-0349
...
64
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
