Yard Man 13AP615P755 (2005) Lawn Tractor

Model: 13AP615P755 (2005)

Back To Assemblies

Save Part Not Listed?
product name

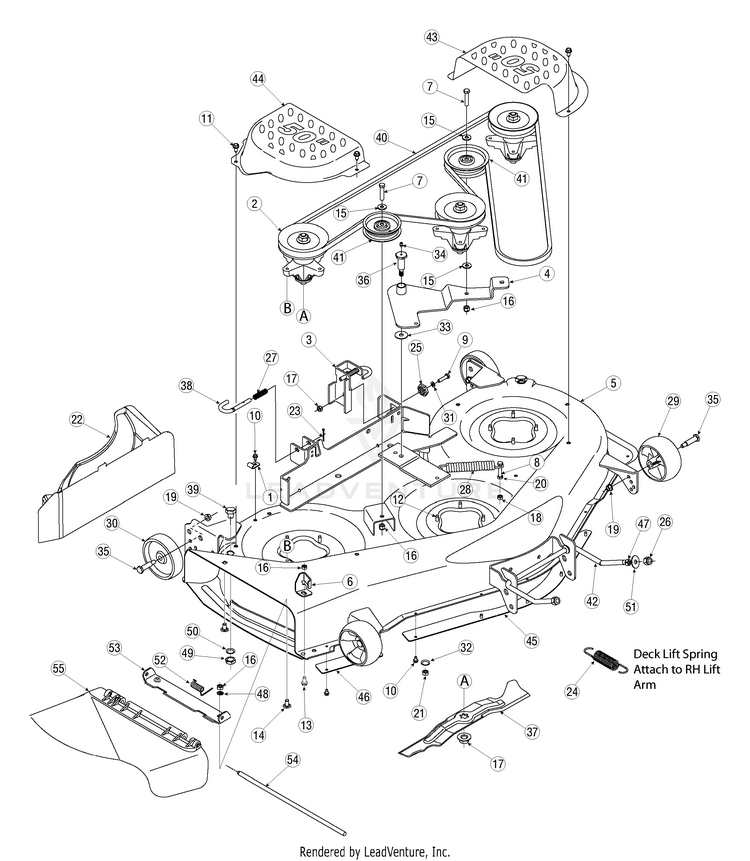

Deck

...
...
1
Hook, Retainer MTD-96606
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
3
Hanger Bracket Assembly MTD-683-0254B
...
4
Idler Bracket MTD-683-04098
...
5
Weldment, 50-inch Deck MTD-983-04075B
...
6
Chute Stop MTD-703-3279
...
7
Screw, 3/8-16, 1.75 MTD-710-0347
...
8
Screw, 5/16-18 x 2.00 MTD-710-3103
...
9
Screw, 5/16-18, 1.25, Gr5 MTD-710-0528
...
10
Screw, 1/4-20 x 0.5 MTD-710-0599
...
11
Screw, 5/16-18 x.500 MTD-710-0607
...
12
Screw, 5/16-18 x.75 MTD-710-1260A
...
13
Screw, Carriage, 3/8-16 x 1.0 MTD-710-3168
...
14
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
15
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
16
Nut, Nylon Lock, 3/8-16 MTD-712-04065
...
17
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
18
Nut, Nylon Lock, 5/16-18 MTD-712-04063
...
19
Nut, Flange Lock, 3/8-16 MTD-912-0431
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Hex Nut 7/16-14 Thd. (Gr. 5) MTD-712-3019
...
22
Mulch Plug MTD-731-04651
...
23
Cotter Pin 1/8" Dia. MTD-714-0470
...
24
Extension Spring, 1.15 Dia. x 5.99 Lg. MTD-732-0934
...
25
Deck Adjustment Gear MTD-917-04074
...
26
Lock Nut, Hex, 1/2-13, Nylon MTD-712-3083
...
27
Spring, Compression,.531 x 1.75 MTD-932-0306A
...
28
Spring, Extension,.94 x 6.74 MTD-732-0459C
...
29
Deck Wheel, 5.0 MTD-753-04856A
...
30
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
31
Washer, Lock, 5/16, Regular Duty MTD-936-0119
...
32
Washer, Bell,.45 x 1.0 x.062 MTD-736-0407
...
33
Washer, Flat,.442 x 1.38 x.060 MTD-936-0406
...
34
Fitting, Lube, 3/16 MTD-937-3000
...
35
Shoulder Screw MTD-938-0373
...
36
Screw, Shoulder,.68 x 1.59 MTD-638-04012A
...
37
Blade MTD-942-04053C
...
38
Rod, Handle, Deck Release.375 Dia MTD-747-1116
...
39
Screw Plug, M16 x 1.5 MTD-738-04146
...
40
Belt, V-Type, Aramid MTD-954-04048
...
41
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
42
Rod, Deck Adjustment MTD-747-1324
...
43
LH Belt Cover MTD-783-04399
...
44
RH Belt Cover MTD-783-04400
...
45
Deck Skirt, Center MTD-783-04414A
...
46
Deck Skirt, RH MTD-783-04415
...
47
HEX NUT MTD-712-0206
...
48
Push Nut, 3/8 MTD-712-0229
...
49
Nut, Hex, M16-1.5 MTD-712-0641
...
50
Lock Washer, 5/8 MTD-736-0225
...
51
Flat Washer,.51 x 1.12 x.06 MTD-736-3084
...
52
Torsion Spring,.44ID x 2.10 MTD-732-3070A
...
53
Chute Bracket MTD-783-04470
...
54
HINGE PIN .375DIA x 14.06 MTD-711-1762
...
55
Chute Deflector MTD-931-3131A
...
xx
Chute Assembly Not shown MTD-631-04070C
