Yard Man 13AP615P755 (2005) Lawn Tractor

Model: 13AP615P755 (2005)

Back To Assemblies

Save Part Not Listed?
product name

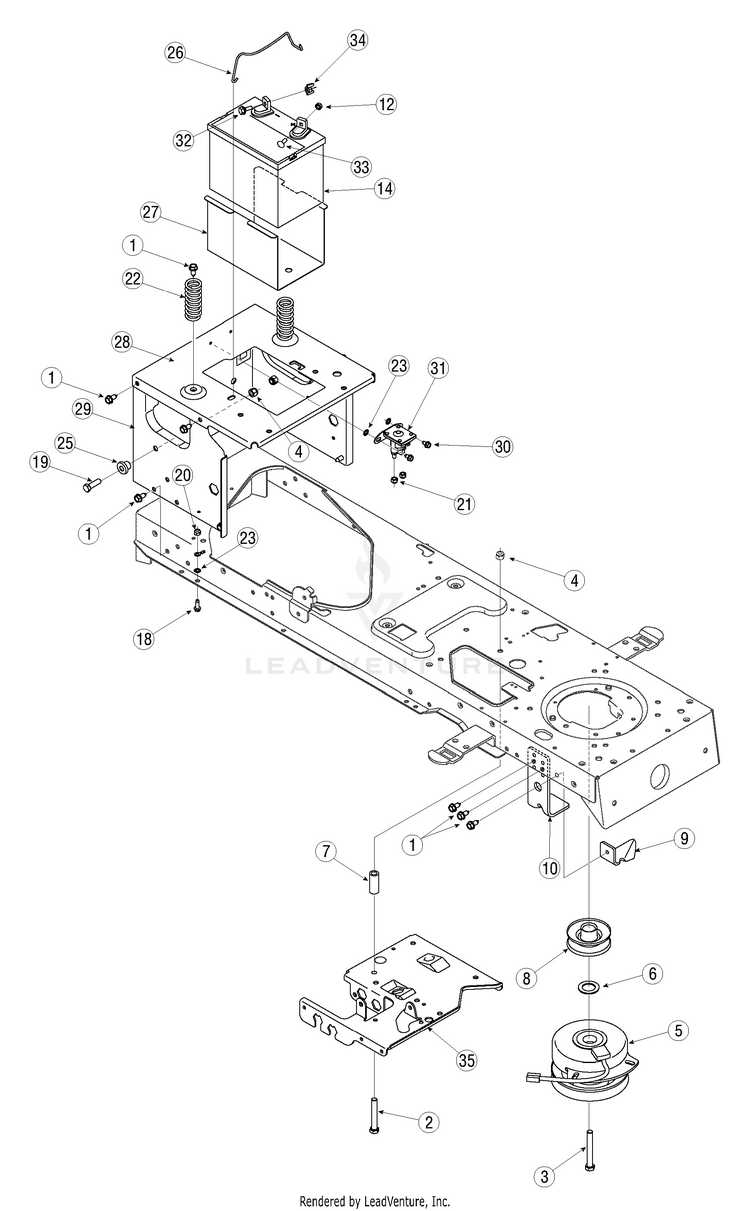

PTO

...
...
1
Screw, 5/16-12, 0.75 MTD-710-0726
...
2
Screw, 3/8-16, 2.50, Gr5 MTD-710-0859
...
3
Screw, 7/16-20, 3.25, Gr5, Lock MTD-710-3157A
...
4
Nut, Flange Lock, 3/8-16, Gr F, Nylon MTD-712-04065
...
5
Electric PTO Clutch 46 & 50" Deck MTD-917-04174A
...
6
Washer, Flat, 1.031 x 1.620 x.095 MTD-736-0277
...
7
SPACER .385ID x 1.54" MTD-748-0415B
...
8
Pulley, Engine MTD-756-0978B
...
9
Bracket Clutch MTD-783-04419B-0637
...
10
DECK UP STOP BRACKET MTD-783-04467
...
11
Screw, Carriage, 1/4-20,.75, Gr5 MTD-710-0703
...
12
Nut, Sems, 1/4-20 MTD-712-0271
...
13
WING NUT 1/4-20 MTD-712-3087
...
14
BATTERY MTD-925-1707D
...
15
Screw, Shoulder,.250 x.150, 1/4-20 MTD-738-1132
...
16
LOWER FRAME ASSEMBLY(POWDER BLACK) MTD-683-04173B-0637
...
17
Screw, 5/16-18, 0.500 MTD-710-0607
...
18
Screw, 1/4-20, 0.750 MTD-710-0642
...
19
Screw, 3/8-16, 1.25, Gr5 MTD-710-3005
...
20
Nut, Flange Lock, 1/4-20, Gr F, Nylon MTD-712-04064
...
21
HEX NUT (B&S Intek Twin) MTD-712-3006
...
22
Spring, Compression, 1.28 OD x 3.125 MTD-732-04035
...
23
Washer, Lock, 1/4, External MTD-736-0222
...
24
L-Wash. 1/4" I.D. MTD-936-0329
...
25
Spacer, Shoulder,.38 x 1.0 x.70 MTD-738-04058
...
26
Hold Rod, Battery MTD-747-04121A
...
27
BATTERY TRAY MTD-783-0349
...
28
SEAT BRACKET MTD-783-04329A
...
29
UPPER FRAME MTD-783-04809C
...
30
Screw, 1/4-20, 0.50 (B&S Intek Twin) MTD-710-0599
...
31
Solenoid (B&S Intek Twin) MTD-925-1426A
...
32
Screw, Shoulder,.250 x.15, 1/4-20 MTD-738-1132
...
33
Screw, Carriage, 1/4-20,.75 MTD-710-0703
...
34
WING NUT 1/4-20 MTD-712-3087
...
35
Steering Support Bracket MTD-783-04612-0637
