Yard Man 13AP615P755 (2005) Lawn Tractor

Model: 13AP615P755 (2005)

Back To Assemblies

Save Part Not Listed?
product name

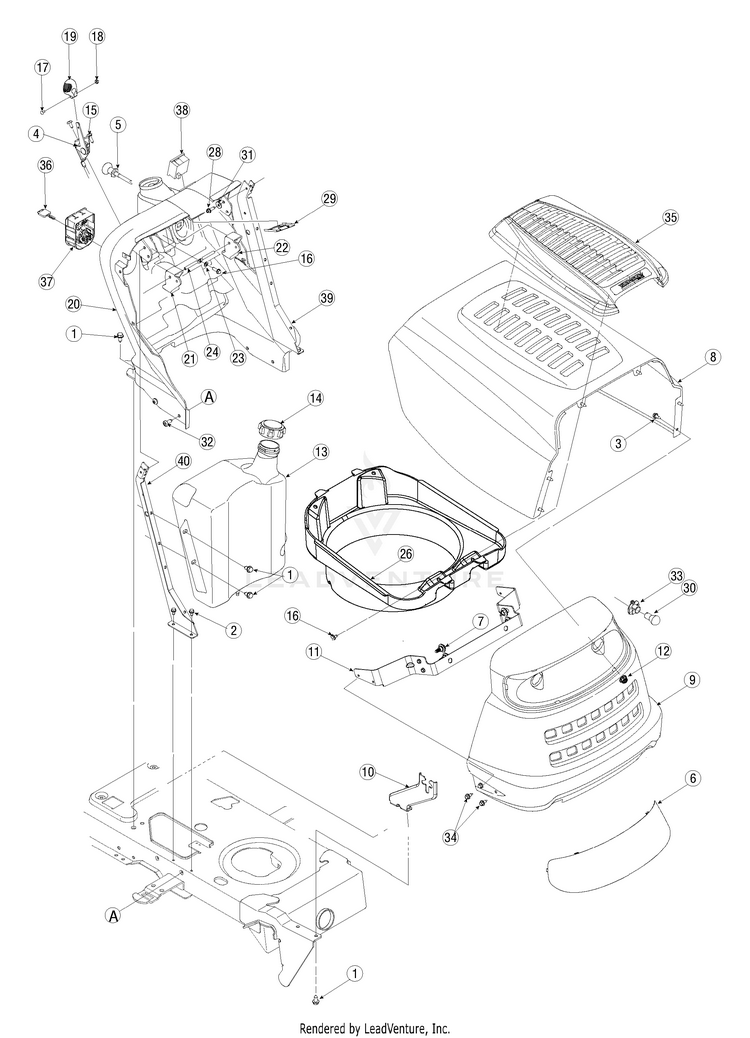

Hood

...
...
1
Screw, 5/16-12 x.750 MTD-710-0726
...
2
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
THROTTLE CABLE MTD-946-1086
...
5
Choke Cable 39" Lg. MTD-946-1085A
...
6
GRILLE LENS 1 STYLE MTD-731P04949A
...
7
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
8
HOOD-1 STYLE MTD-783-04551
...
9
GRILL-1 STYLE MTD-783-04552
...
10
Pivot Bracket, RH MTD-783-04578A-0637
...
xx
PIVOT BRACKET (LH) MTD-783-04577A-0637
...
11
BRACKET-PI MTD-783-04621
...
12
Flange Lock Nut, 1/4-20 MTD-712-04064
...
13
Fuel Tank, Three Gallon MTD-751-0658E
...
14
TANK CAP MTD-751-0603B
...
15
Screw, 1/4-14 x.625 MTD-710-1017
...
16
Self-tapping Screw, 1/4-15 x.75 MTD-710-0895
...
17
Truss Phillips Screw, #8-32 x.375 MTD-710-3217
...
18
Hex Nut, #8-32 MTD-712-0142
...
19
Throttle Control Knob MTD-731-1857
...
20
DASH PANEL TROY W/EVAC NO/WIND (Models w/ Electric PTO) MTD-731-06169
...
21
CRUISE LEVER MTD-931-04215
...
22
BRAKE LEVER MTD-931-04217
...
23
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
24
Brake/Cruise Pivot Rod MTD-747-1196
...
25
Wire Harness Not Shown MTD-929-04083B
...
26
Plenum MTD-731-05165A
...
27
PTO SWITCH (BLACK KNOB) TEXT SYM Not Shown MTD-925-04174A
...
28
Self-tapping Screw, 1/4-20 x.75 MTD-710-0642
...
29
RETAINER SWITCH MTD-783-0462
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Screw, 5/16-18 x.75 MTD-710-1611B
...
33
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
34
Hex Index Screw, 1/4-20 x.625 MTD-710-1652
...
35
Hood Scoop MTD-731-05522A
...
36
Key MTD-925-1745A
...
xx
Key MTD-925-1745A
...
37
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
38
HOUR METER/SERVICE MINDER MTD-925-06170B
...
39
DASH SUPPORT MTD-783-04323F-0637
...
40
DASH SUPPORT MTD-783-04285F-0637
...
xx
HARNESS ASSEMBLY (ELECTRIC PTO) (B&S Intek Twin) Not Shown MTD-629-04104
...
xx
HOUR METER HARNESS ASSEMBLY (Kohler Twin) Not Shown MTD-629-04137
