Yard Man 13AP605H755 (2006) Lawn Tractor

Model: 13AP605H755 (2006)

Back To Assemblies

Save Part Not Listed?
product name

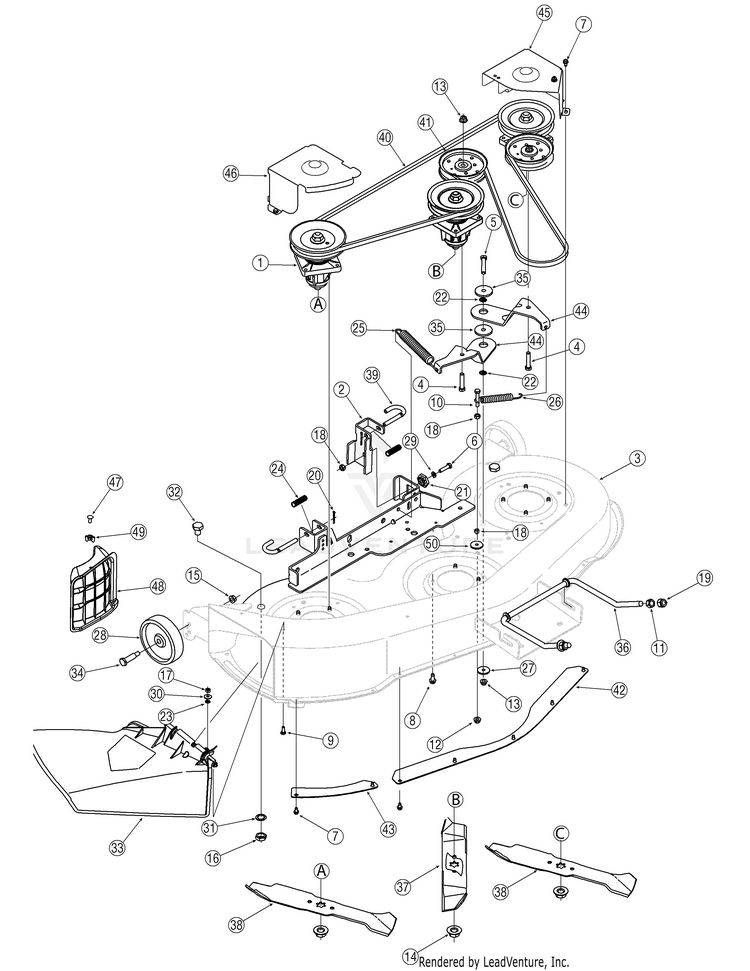

Deck Assembly PTO Electric 46 inch

...
...
1
Deck Spindle If Spindle Housing has grease fitting, please refer to part number 918-0660A MTD-918-0625B
...
1
SHIELD-BEARING Not shown MTD-17983
...
1
Spindle Housing Not shown MTD-753-07015
...
1
HEX NUT Not shown MTD-712-0417A
...
1
Spindle Shaft 6.11 LG., Kit Not shown, replaces 738-1186 spindle shaft 6.05 LG. MTD-753-06348
...
1
BALL BEARING Not shown MTD-741P0919B
...
1
Spacer: 792 X 1.060 X 1.860 LG Not shown, use with spindle shaft 6.11 LG. MTD-750-04936
...
1
Pulley:5.75 Dia Not shown MTD-756-1188
...
2
Deck Hanger Bracket Ass’y, LH MTD-683-0254B
...
3
46" DECK ASSEMBLY MTD-983-04104A
...
4
Screw, 3/8-16, 1.75, Gr5 MTD-710-0347
...
5
Screw, 3/8-16, 1.50, Gr5 MTD-710-0520
...
6
Screw, 5/16-18, 1.25, Gr5 MTD-710-0528
...
7
Screw, 1/4-20, 0.500 MTD-710-0599
...
8
Screw, 5/16-18, 0.750 MTD-710-1260A
...
9
Screw, 1/4-20, .75, Gr5 MTD-710-3015
...
10
Screw, 5/16-18, 2.00, Gr5 MTD-710-3103
...
11
HEX NUT MTD-712-0206
...
12
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
13
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
14
HEX NUT MTD-712-0417A
...
15
Flange Lock Nut 3/8-16 MTD-912-0431
...
16
Nut, Hex, M16-1.5 MTD-712-0641
...
17
HEX NUT MTD-712-3006
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Nut, Hex Lock, 1/2-13, Gr8, nylon MTD-712-3083
...
20
Pin, Cotter, 3/32, 1.0 MTD-714-0111
...
21
Gear, Deck Adjustment MTD-917-04074
...
22
Nut, Speed, 3/8 MTD-726-0269
...
23
Nut, Push, .25 Id x .50 MTD-726-0233
...
24
Compression Spring MTD-932-0306A
...
25
Extension Spring 6.17" Lg. MTD-932-0594A
...
26
Spring, Extension, .865 x 4.68 MTD-732-0826A
...
27
Washer, Flat, .406 x 1.25 MTD-736-0247
...
28
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
SPRING WASHER BELL MTD-736-0270
...
31
Washer, Lock, 17 x 23.8 x 1.95 MTD-736-0760
...
32
Plug, Screw MTD-738-04146
...
33
CHUTE ASSEMBLY MTD-631-05229
...
34
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
35
Shoulder Spacer .884 x .190 MTD-738-04162C
...
36
Rod, Deck, Adjust MTD-747-1130B
...
37
14.88" BLADE (MULCH) (STAR) MTD-742-0612A-0637
...
38
46" BLADE (STAR) MTD-742-0611A-0637
...
39
Hndl Rod, Deck Release .375 dia MTD-747-1116
...
40
Deck Spindle Belt MTD-954-04118
...
41
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
42
Deck Skirt, Center MTD-783-0141
...
43
Skirt-Right Hand MTD-783-0142-0637
...
44
IDLER BRACKET MTD-783-05118
...
45
Cover, Deck Belt RH MTD-783-0747B-0637
...
46
BELT COVER (RH) MTD-783-0805C
...
47
Carriage Screw, 1/4-20, .62 MTD-710-0134
...
48
Mulch Plug MTD-731-05264
...
49
WING NUT 1/4-20 MTD-712-3087
...
50
Washer, Flat, .330 x 1.25 x .120 MTD-736-0343
