Yard Man 13AP605H755 (2006) Lawn Tractor

Model: 13AP605H755 (2006)

Back To Assemblies

Save Part Not Listed?
product name

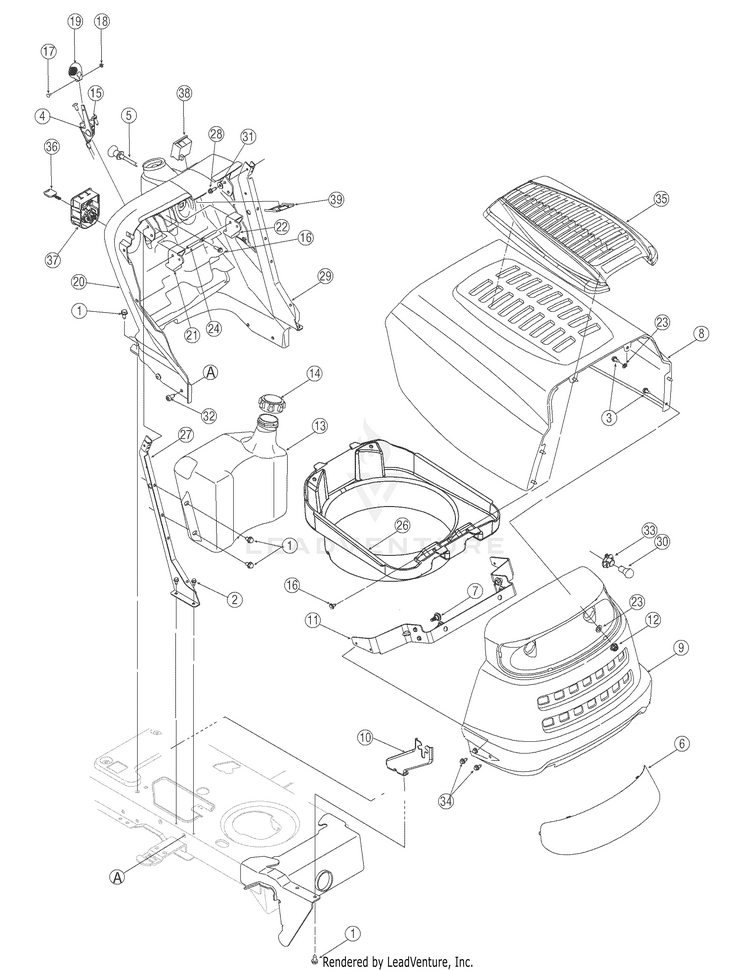

Hood Assembly

...
...
1
Screw, 5/16-12 x.750 MTD-710-0726
...
2
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
THROTTLE CABLE MTD-946-1086
...
4
Throttle Cable MTD-946-1084
...
5
Choke Cable 39" Lg. MTD-946-1085A
...
5
Choke Plug MTD-731-1999
...
6
GRILLE LENS 1 STYLE MTD-731P04949A
...
7
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
8
HOOD-1 STYLE MTD-783-04551
...
9
GRILL-1 STYLE MTD-783-04552
...
10
Pivot Bracket, RH MTD-783-04578A-0637
...
10
PIVOT BRACKET (LH) MTD-783-04577A-0637
...
11
BRACKET-PI MTD-783-04621
...
12
Flange Lock Nut, 1/4-20 MTD-712-04064
...
13
Fuel Tank, Three Gallon MTD-751-0658E
...
13
Fuel Tank 2 Gal. MTD-751-0659D
...
14
TANK CAP MTD-751-0603B
...
15
Screw, 1/4-14 x.625 MTD-710-1017
...
16
Self-tapping Screw, 1/4-15 x.75 MTD-710-0895
...
17
Truss Phillips Screw, #8-32 x.375 MTD-710-3217
...
18
Hex Nut, #8-32 MTD-712-0142
...
19
Throttle Control Knob MTD-731-1857
...
20
DASH PANEL TROY W/EVAC NO/WIND MTD-731-06169
...
20
DASH PANEL TROY W/MAN PTO N/WIND MTD-731-06167
...
21
CRUISE LEVER MTD-931-04215
...
22
BRAKE LEVER MTD-931-04217
...
23
Flat Washer, .265 x .938 MTD-736-0176
...
24
Brake/Cruise Pivot Rod MTD-747-1196
...
25
Wire Harness MTD-929-04083B
...
26
HOOD PLENUM MTD-731-05566
...
27
DASH SUPPORT MTD-783-04285F-0637
...
28
Self-tapping Screw, 1/4-20 x.75 MTD-710-0642
...
29
DASH SUPPORT MTD-783-04323F-0637
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Screw, 5/16-18 x.75 MTD-710-1611B
...
33
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
34
Hex Index Screw, 1/4-20 x.625 MTD-710-1652
...
35
Hood Scoop MTD-731-05522A
...
36
Key MTD-925-1745A
...
36
Key MTD-925-1745A
...
37
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
38
HOUR METER/SERVICE MINDER MTD-925-06170B
...
39
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
xx
Headlight Harness MTD-925-04404A
...
xx
HARNESS MTD-725-04339
