Yard Man 13AK604G401 (2000) Lawn Tractor

Model: 13AK604G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

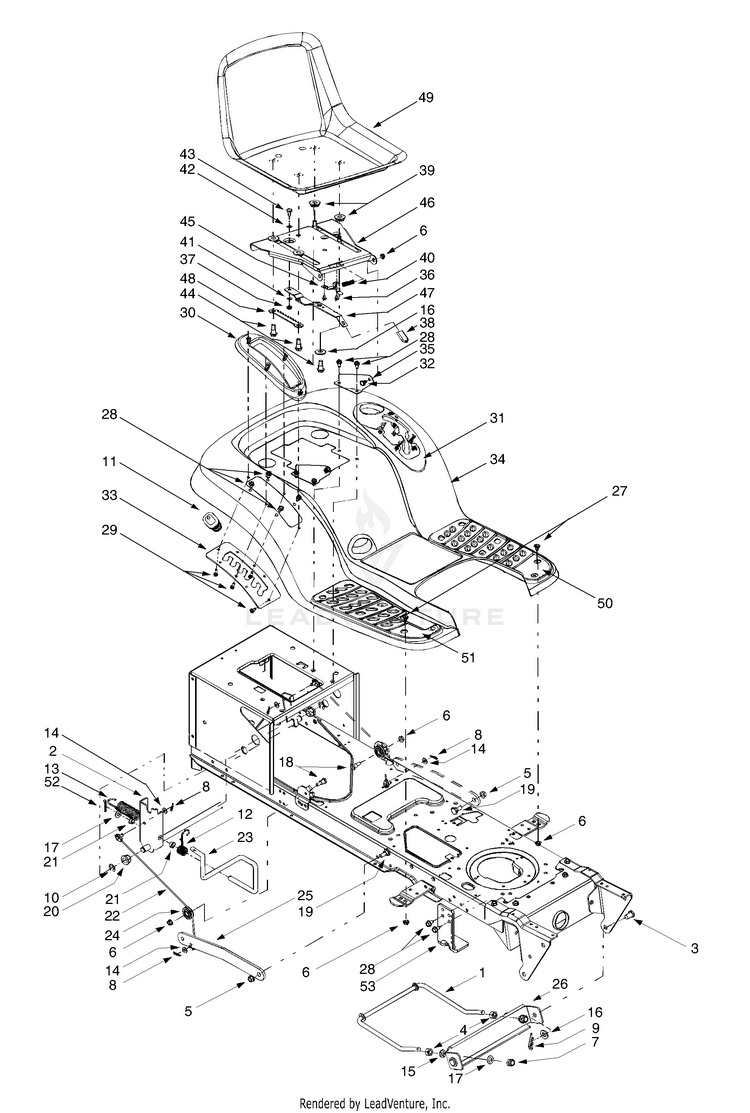

Seat, Fender, Frame Components

...
...
1
Rod, Deck MTD-747-1130B
...
2
LIFT SHAFT ASSEMBLY MTD-983-0197
...
3
Clevis Pin MTD-911-0332
...
4
HEX NUT MTD-712-0206
...
5
Flange Lock Nut 3/8-16 MTD-912-0431
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
Hex Nut, 1/2-13 MTD-712-3083
...
8
Internal Cotter Pin MTD-714-0104
...
9
Internal Cotter Pin MTD-714-0145
...
10
E-ring MTD-716-0106
...
11
Handle Grip MTD-720-0311
...
12
Torsion Spring MTD-732-0874
...
13
Lift-assist Spring, 1.15 x 5.99 (Found on Units w/ 46-inch Decks Only) MTD-732-0934
...
14
FLAT WASHER MTD-736-0275
...
15
Lock Washer, 1/2 MTD-736-0921
...
16
Flat Washer, .31 x 1.062 x .134 MTD-736-3019
...
17
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
18
SHOULDER SCREW 5/16-18 x .62 GR2 MTD-738-0138A
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
FLANGE BEARING MTD-941-0225
...
21
SNAP RING FLANGE BEARING MTD-941-0715
...
22
Lift Cable, 16.16 MTD-746-0968
...
23
LIFT HANDLE MTD-747-1111A
...
24
Roller Pulley MTD-756-1154
...
25
DECK LIFT LINK MTD-783-0678C
...
26
Deck Stabilizer Bracket MTD-783-0720C
...
27
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
28
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
29
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
30
Lift Lever Cover MTD-731-06795
...
31
Shift Lever Cover w/Cup Holder MTD-931-2104C
...
32
Shoulder Bolt MTD-938-0155
...
33
LIFT ADJUSTMENT BRACKET MTD-783-0677B-0637
...
34
Fender MTD-783-1279
...
35
BRACKET MTD-783-1489D
...
36
Screw, #10-16 x .375 MTD-710-1268
...
37
LOCK NUT 1/4 MTD-912-3027
...
38
Seat Adjuster Grip MTD-720-0309A
...
39
SEAT ADJUST SPACER MTD-731-1989
...
40
Compression Spring, .41 x 1.5 MTD-732-0499
...
41
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
42
Flat Washer, .344 x .62 x .03 MTD-736-0204
...
43
Shoulder Screw, .340 x .285,1/4-20 MTD-738-0137A
...
44
SHOULDER SCREW .50 x .39 3/8 MTD-738-1007
...
45
Seat Stop MTD-783-0611
...
46
SEAT PIVOT BRACKET MTD-783-0738D
...
47
Seat Adjustment lever MTD-783-0739
...
48
Seat Adjustment Selector MTD-783-0753
...
49
SEAT MTD-957-0360A
...
xx
Seat - 14-1/4" High MTD-957-0350
...
50
FOOT PAD (LH) MTD-735-0657
...
51
FOOT PAD (RH) MTD-735-0656
...
xx
Foot Pad Clips (Not Shown) MTD-726-3046
...
52
Cotter Pin MTD-714-0111
...
53
DECK UP STOP BRACKET MTD-783-04467-0637
