Yard Man 13AK604G401 (2000) Lawn Tractor

Model: 13AK604G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

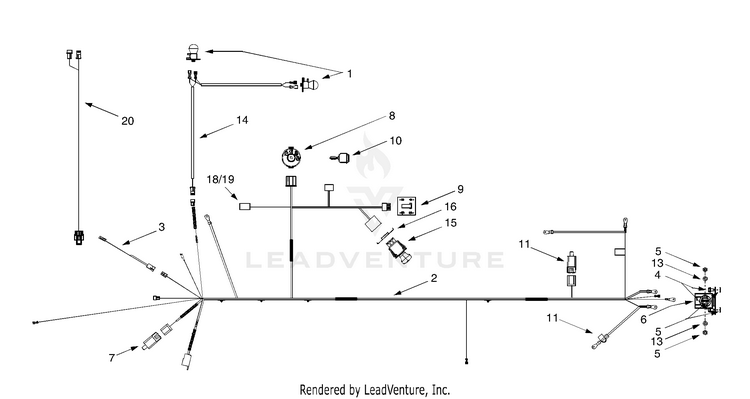

Electrical

...
...
1
Headlight Assembly MTD-925-0051
...
2
Wiring Harness w/o Ref. 14 (Units w/ Electric PTO) MTD-629-0939
...
xx
TRACTOR WIRE HARNESS (Units w/ Manual PTO) MTD-629-0944
...
3
HARNESS ADAPTER MTD-629-0126
...
4
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
5
HEX NUT MTD-712-3006
...
6
Solenoid MTD-925-1426A
...
7
Safety Switch (Brake) MTD-925-1657A
...
8
Ignition Switch MTD-925-1741
...
9
KIT-INDICATOR MTD-725-1743
...
10
Key MTD-925-1745A
...
11
SEAT SWITCH (Seat) MTD-925-1747
...
?12
External Lock Washer, 1/4 MTD-736-0222
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
HEADLIGHT HARNESS MTD-929-0469B
...
15
PTO SWITCH (BLACK KNOB) TEXT SYM Found on tractors engaged by an electric PTO only MTD-925-04174A
...
16
RETAINER SWITCH Found on tractors engaged by an electric PTO only MTD-783-0462
...
?17
COVER-BAT TERMINAL RED (Boot) MTD-725-3007A
...
18
FUSE HOLDER W/CLIP MTD-729-0357
...
19
FUSE-20A MTD-925-1381
...
20
HARNESS ADAPTER (For Kohler Engines) MTD-629-0924
