Yard Man 13AK604G401 (2000) Lawn Tractor

Model: 13AK604G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

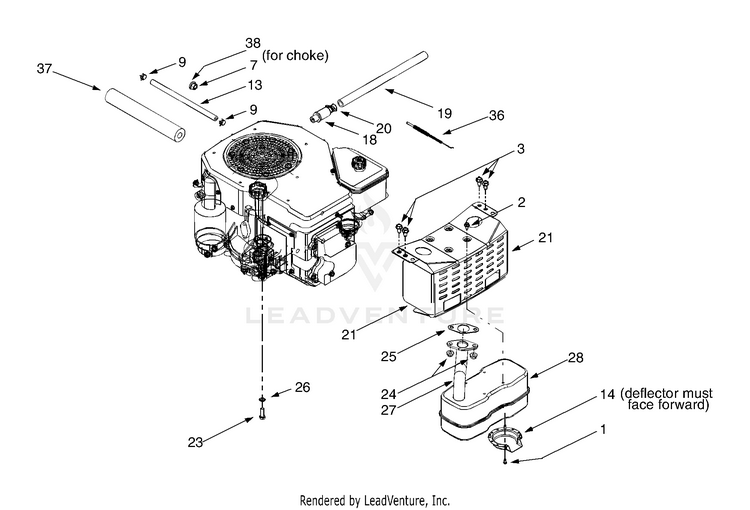

Muffler/Engine Accessories Kohler Single

...
...
1
Self-tapping Screw, #8-32 x .375 MTD-710-0148
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
7
HEX NUT 3/8-16 GR5 MTD-712-3017
...
9
Hose Clamp MTD-726-0205
...
13
Fuel Line Hose MTD-751-0535
...
14
Muffler Deflector MTD-751-0564B
...
18
Oil Drain Valve MTD-951-10517A
...
19
Oil Drain Hose MTD-751-3141-14
...
20
Oil Drain Cap MTD-751-3142
...
21
Muffler Heat Shield MTD-783-0615E-0637
...
23
Hex Cap Screw, M8-1.25 x 25 MTD-710-3206A
...
24
Flange Nut, M8-1.25 MTD-712-3086
...
25
Gasket, Exhaust Manifold (Kohler) MTD-KH-12-041-03
...
26
External Lock Washer, 5/16 MTD-736-0607
...
27
EXHAUST PIPE (Kohler) MTD-751-0621A
...
28
Single Inlet Muffler MTD-951-0617C
...
36
Throttle Cable (Kohler) (Kohler) MTD-946-1087
...
37
Foam (fits over fuel line) (Fits over fuel line) MTD-723-3066-24
...
38
Flat Washer, .406 x .875 x .059 MTD-736-0300
