Yard Man 13AK604G401 (2000) Lawn Tractor

Model: 13AK604G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

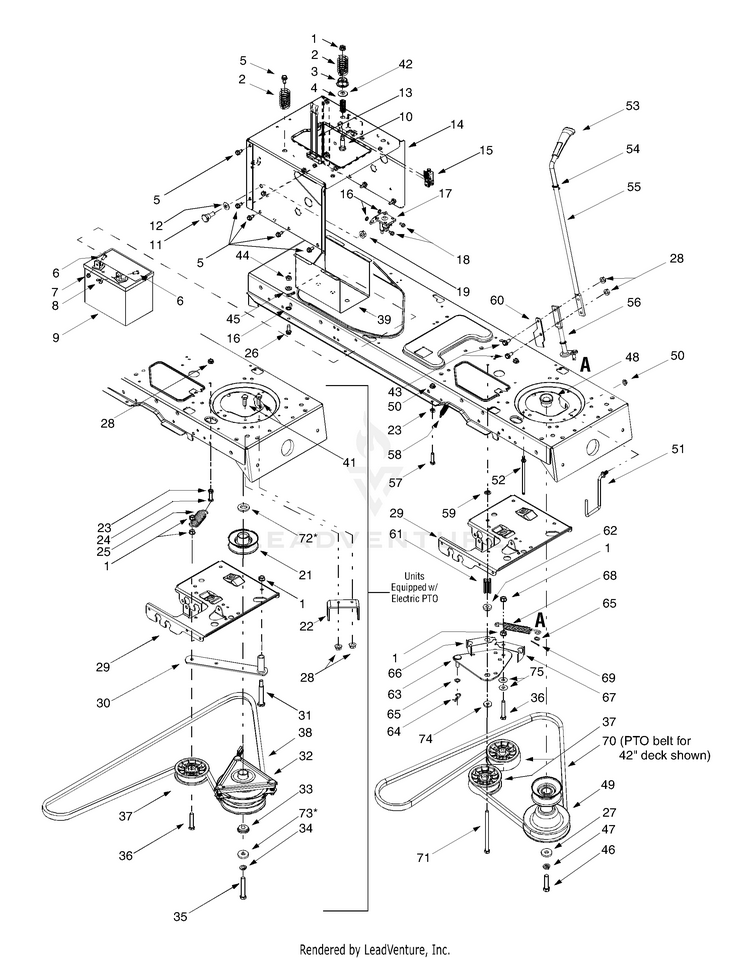

PTO Drive, Battery, Frame Components

...
...
1
Flange Lock Nut 3/8-16 MTD-912-0431
...
2
SPRING-COMP 1.314 OD x 3"L MTD-732-0996
...
3
SPACER CUP MTD-783-0733
...
4
COMPRESSION SPRING MTD-732-0997
...
5
Self-Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
6
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
7
Hex Sems Nut, 1/4-20 MTD-712-0271
...
8
NUT, 1/4 WING MTD-712-3044
...
9
BATTERY MTD-925-1707D
...
10
Shoulder Screw, .5 x 1.25, 3/8-16 MTD-738-1014
...
11
Shoulder Screw, .625 x .5, 7/16-20 MTD-738-1020
...
12
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
13
BATTERY STRAP MTD-723-0444
...
14
UPPER HITCH PLATE MTD-783-1031
...
15
SEAT SWITCH MTD-925-1747
...
16
Lock Washer, 1/4 MTD-736-0222
...
17
Solenoid MTD-925-1426A
...
18
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
19
Flange Lock Nut, 7/16-20 MTD-712-0459
...
20
LOWER FRAME MTD-683-0304
...
21
Engine Pulley, 3.56 OD MTD-756-0639A
...
22
CLUTCH BRACKET MTD-783-1003-0637
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
25
Extension Spring, 1.2 OD x 3.638 MTD-732-0978
...
26
Self-tapping Screw, 1/4-20 x .750 MTD-710-0642
...
27
Flat Washer, .45 x 1.25 x .164 MTD-736-0322
...
28
HEX FLANGE NUT MTD-712-3004A
...
29
Steering Support Bracket MTD-783-04612-0637
...
30
IDLER BRACKET ASSEMBLY (42-inch decks) MTD-683-0301
...
30
IDLER BRACKET ASSEMBLY (46-inch decks) MTD-683-0297
...
31
Shoulder Bolt MTD-938-3056
...
32
Electric PTO Clutch MTD-917-1708
...
33
Shld. Spacer .445" I.D. MTD-938-0785
...
34
Lock Washer, 7/16 MTD-736-0171
...
35
Screw, Hx. Hd., 7/16-20 x 3.25 MTD-710-3157A
...
36
Hex Cap Screw, 3/8-16 x 2.25 MTD-710-3011
...
37
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
38
PTO & Deck Belt (42-inch Decks w/ Electric PTO) MTD-954-0472
...
38
PTO Belt (46-inch Decks) (46-inch Decks w/ Electric PTO) MTD-954-0474
...
39
BATTERY TRAY MTD-783-0349
...
40
DECK UP STOP BRACKET MTD-783-04467-0637
...
41
Hex Cap Screw, 5/16-18 x .625 MTD-710-3025
...
42
Bell Washer, .401 x .870 x .063 MTD-736-0105
...
43
Hex Cap Screw, 5/16-18 x 1.0 MTD-710-0376
...
44
HEX NUT MTD-712-3006
...
45
Lock Wash. 5/16" I.D. MTD-936-0119
...
46
Hex Cap Screw, 7/16-20 x 1.5 MTD-710-0757
...
47
Lock Washer, 7/16 MTD-736-0171
...
48
Spacer MTD-750-0956
...
49
Engine Pulley MTD-756-0982B
...
50
HEX FLANGE NUT MTD-712-3004A
...
51
Belt Guard MTD-747-1204
...
52
Keeper Pin MTD-711-1004
...
53
PTO KNOB MTD-731-2111B
...
54
Flat Washer, .510 x .750 x .033 MTD-736-0108
...
55
PTO ENGAGEMENT HANDLE MTD-747-1112D-0637
...
56
ENGAGEMENT LEVER ASSEMBLY MTD-647-0064
...
57
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
58
Extension Spring, .5 x 6.0 MTD-732-0995
...
58
Extension Spring, .5 x 6.0 MTD-732-0995
...
59
Push Nut, 3/8 MTD-712-0229
...
60
Engagement Stop Bracket MTD-783-0744A
...
61
SPACER .385ID x 1.54" MTD-748-0415B
...
62
Shoulder Spacer, .380 ID MTD-738-0372B
...
63
PTO Engagement Plate MTD-683-0302
...
64
Internal Cotter Pin MTD-714-0145
...
65
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
66
BELT GUARD MTD-732-0991A
...
67
BELT GUARD MTD-732-0990
...
68
Extension Spring, .75 x 6.75 MTD-732-0944
...
69
Cotter Pin, 3/32 x 1.0 MTD-714-0111
...
70
Belt, PTO and Deck - 97 inches (42-inch Decks w/ Manual PTO) MTD-954-0485
...
70
V-BELT A-SEC x 67.2'' (46-inch Decks w/ Manual PTO) MTD-954-0486A
...
71
Hex Cap Screw, 3/8-16 x 5.0 MTD-710-0615A
...
72
Flat Washer, 1.031 x 1.62 x .095 MTD-736-0277
...
73
Flat Washer, .45 x 1.25 x .17 MTD-736-0322
...
74
FLAT WASHER .38X.88 MTD-736-0267
...
75
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
