Yard Man 13AJ694H401 (1997) Lawn Tractor

Model: 13AJ694H401 (1997)

Back To Assemblies

Save Part Not Listed?
product name

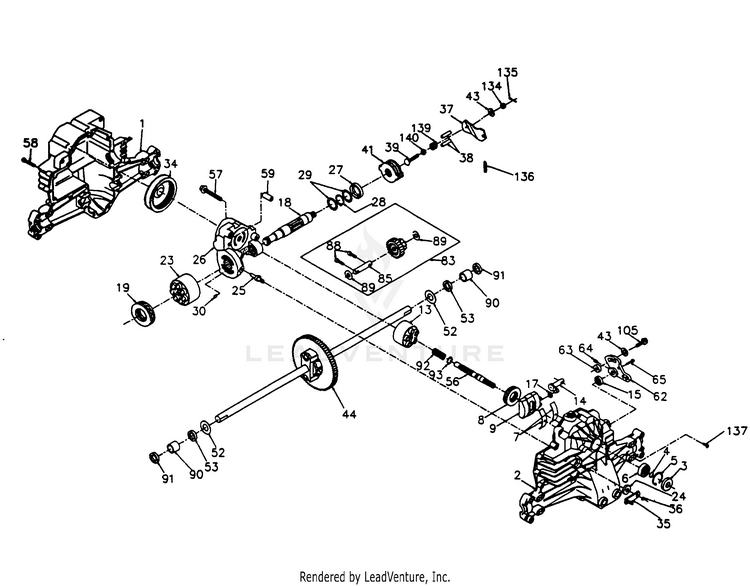

Transaxle Assembly

...
...
1
HOUSING-LO MTD-HG-50074
...
2
Upper Hsg. Ass'y. MTD-HG-70255
...
xx
Upper Hsg. MTD-NA
...
xx
Trunnion Journal Bearing MTD-NA
...
3
Up Seal MTD-HG-9008000-0128
...
4
Wire Retaining Ring MTD-HG-2003016
...
5
Retaining Ring MTD-HG-2003052
...
6
BALL BEARING MTD-HG-2003043P
...
7
Bearing, Cradle MTD-HG-52619
...
8
THRUST BEARING MTD-HG-50551P
...
9
Variable Swashplate MTD-HG-2003087
...
13
BLOCK KIT-5 PISTON MTD-HG-70331
...
xx
Cylinder Block MTD-NA
...
xx
Piston MTD-NA
...
xx
Piston Spring MTD-NA
...
xx
Piston Spring Washer MTD-NA
...
14
Trunnion Arm MTD-HG-2003005
...
15
Lip Seal MTD-HG-9008000-0126
...
17
Slot Guide MTD-HG-2000015
...
18
SHAFT-MOTO MTD-HG-50449
...
19
THRUST BEARING MTD-HG-50552P
...
23
Block Assembly, Cylinder MTD-HG-72159
...
xx
Cylinder Block MTD-NA
...
xx
Piston MTD-NA
...
xx
Piston Spring MTD-NA
...
xx
Piston Spring Washer MTD-NA
...
24
LIP SEAL MTD-HG-45074
...
25
ACTUATOR-B MTD-HG-2003555
...
26
KIT-CENTER SECTION MTD-HG-70250
...
xx
Bypass Plate MTD-NA
...
xx
Check Plug Ass'y. MTD-NA
...
xx
Center Section MTD-NA
...
xx
Du Bearing MTD-NA
...
xx
Bolt, 3/8-24 x 2.5 MTD-NA
...
xx
Bushing MTD-NA
...
27
SEAL MTD-HG-45075
...
28
RETAINING RING MTD-HG-50007
...
29
WASHER MTD-HG-44872
...
30
PLATE-BYPASS MTD-HG-70680
...
34
FILTER-TRANSAXLE MTD-HG-50990
...
35
ARM-BYPASS MTD-HG-50126
...
36
RETAINING RING MTD-HG-44870
...
37
ARM-BRAKE MTD-HG-50130
...
38
ACTUATING PIN MTD-HG-44891
...
39
BOLT MTD-HG-50316
...
41
ROTOR-BRAK MTD-HG-70135
...
xx
Brake Stator MTD-NA
...
xx
Brake Rotor MTD-NA
...
43
Washer 7/16 x 7/8 x .060 MTD-736-0371
...
44
DIFFERENTIAL ASSEMBLY MTD-HG-70131
...
xx
Axle Shaft MTD-NA
...
xx
Axle Shaft MTD-NA
...
xx
50T Differential Gear MTD-NA
...
xx
Differential Cover MTD-NA
...
xx
15T Bevel Gear MTD-NA
...
xx
15T Planet Gear MTD-NA
...
xx
Jam Nut MTD-NA
...
xx
Bolt MTD-NA
...
xx
Bearing Block MTD-NA
...
xx
Shaft MTD-NA
...
52
WASHER MTD-HG-44875
...
53
SEAL MTD-HG-53901
...
56
INPUT SHAFT MTD-HG-50005
...
57
Bolt 3/4-24 x 2.5 MTD-HG-50016
...
58
SCREW-TORX HEAD MTD-HG-44876
...
59
PIN MTD-HG-50002
...
62
CONTROL ARM MTD-HG-45007
...
63
PUCK-DAMPENER MTD-HG-50034
...
64
SCREW-SET MTD-HG-50018
...
65
UNKNOWN MTD-NA
...
83
GEAR ASSEMBLY- MTD-HG-70132
...
xx
Jack Shaft MTD-NA
...
xx
23T Gear MTD-NA
...
xx
10T Pinion MTD-NA
...
85
JACKSHAFT MTD-HG-50559
...
88
HEX SCREW MTD-HG-50154
...
89
Washer 7/16 x 1 x.5 MTD-HG-50132
...
90
SLEEVE BEARING MTD-HG-50118
...
91
SEAL-WIPER MTD-HG-50941
...
92
Block Spring MTD-HG-2003014
...
93
Block Thrust Washer MTD-HG-2003017
...
105
Flange Head Screw 5/16-24 x 1 MTD-HG-50282
...
134
NUT MTD-912-0273
...
135
Cotter Pin MTD-714-0507
...
136
EXTENSION SPRING MTD-HG-50384
...
137
SCREW-SELF TAPPI MTD-HG-50383
...
139
COMPRESSION SPRING MTD-HG-50431
...
140
Hex Nut 5/16-24 MTD-HG-50269
