Yard Man 13AD674G401 (1998) Lawn Tractor

Model: 13AD674G401 (1998)

Back To Assemblies

Save Part Not Listed?
product name

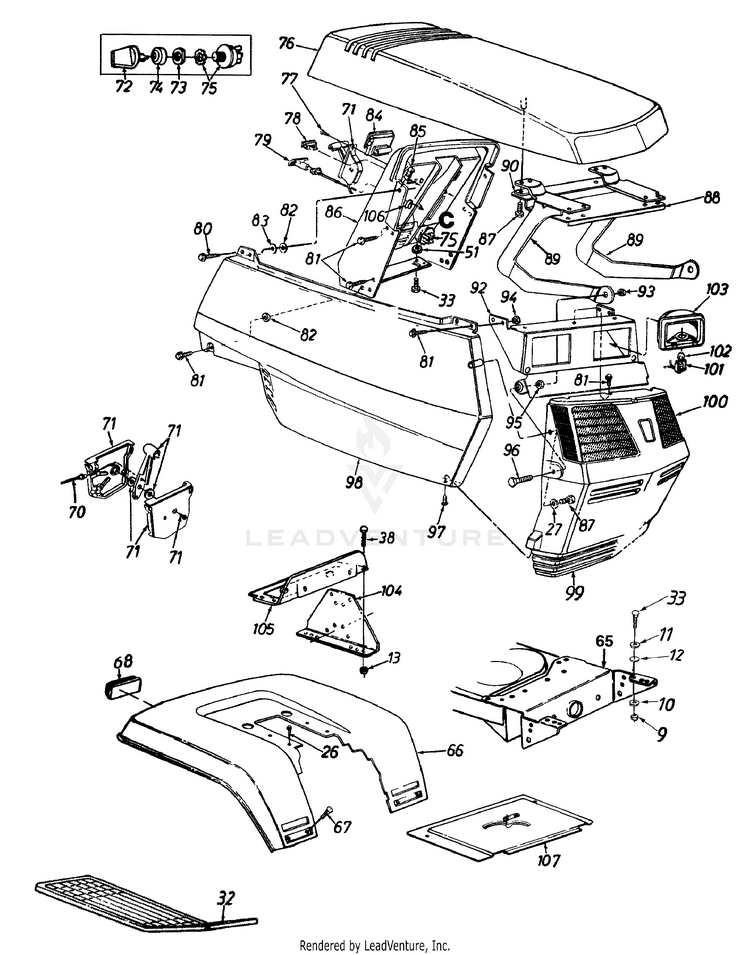

Hood Assembly, Grille & Fender

...
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Fl-Wash. .34" I.D. x 1" O.D. MTD-736-3078
...
12
Speed Nut MTD-726-0201
...
13
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
Fl-Wash. .218" I.D. x .5" O.D. MTD-736-0142
...
32
FOOT PAD (Optional) MTD-731-0909
...
xx
FOOT PAD (Optional) MTD-735-0689A
...
33
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
38
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
51
SEMS NUT 5/16-18 MTD-712-0265
...
65
PIVOT BAR BRACKET Code N MTD-783-0041C
...
66
FENDER MTD-783-0350
...
67
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
68
Reflector (Optional) MTD-725-3000
...
70
Throttle Control Wire 18.5" MTD-946-0638
...
71
Throttle Control Box Ass'y. MTD-831-0823A
...
72
Key MTD-925-0201
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Ignition Switch Cap MTD-725-1347
...
75
Ignition Switch MTD-925-1396A
...
76
HOOD (RADIANT YELLOW) MTD-931-1433
...
77
Truss Mach. AB-Tap Scr. #10 x.5" Lg. MTD-710-0779A
...
78
Light Switch MTD-925-0634
...
79
CHOKE CONTROL CABLE 29'' MTD-746-3021
...
80
Hex Wash. Hd. Tap Scr.1/4 x .75" MTD-710-0642
...
81
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
82
Push Nut Fastener MTD-726-0233
...
83
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
84
Ammeter MTD-925-0925
...
85
SPEED NUT 1/4-20 MTD-712-0185
...
86
DASH PANEL MTD-731-0961A
...
87
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
HOOD REINFORCEMENT MTD-783-0121
...
89
HOOD HINGE MTD-783-0123
...
90
HOOD REINCEMENT SPACER MTD-17762
...
92
BRACKET-LIGHT MTD-17223
...
93
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
94
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
95
Hex Jam Nut 5/16-18 Thd. MTD-712-3007
...
96
Hex Bolt 5/16-18 x 7/8" Lg. MTD-710-0874
...
97
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
98
COVER MTD-731-1434
...
xx
SIDE COVER (LH) (Not Shown) MTD-731-1435
...
99
GRILLE MTD-731-1442A
...
100
LENS (LH) MTD-931-0949
...
xx
Lens-R.H. MTD-931-0948
...
101
SHORT LAMP SOCKET MTD-925-1650
...
102
Miniature Lamp 12V Socket Type MTD-925-0963
...
103
HEADLIGHT HOUSING MTD-931-0705
...
104
DASH SUPPORT BRACKET MTD-17300D
...
105
FUEL TANK SUPPORT MTD-17633A
...
106
CLIP-CHOKE RETAINER MTD-17782
...
107
Shift Cover MTD-17286B-0637
...
xx
HEADLIGHT HARNESS (Not Shown) MTD-929-0469B
