Yard Man 13AD624G401 (2002) Lawn Tractor

Model: 13AD624G401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

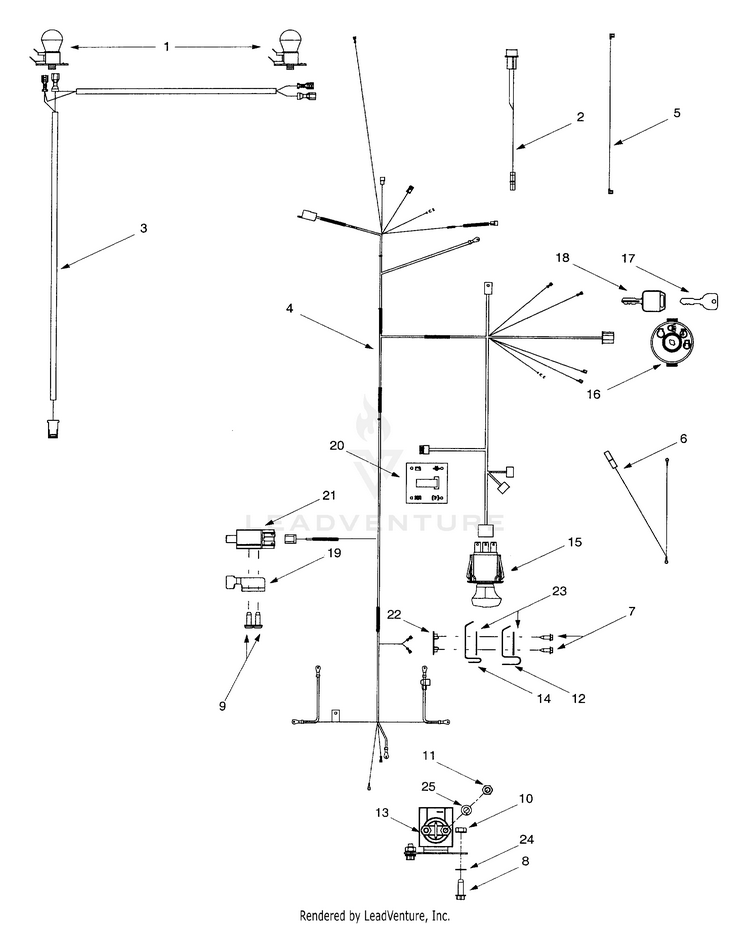

Electrical

...
...
1
Headlight Assembly MTD-925-0051
...
2
HARNESS ADAPTER MTD-629-0126
...
3
HEADLIGHT HARNESS MTD-929-0469B
...
4
HARNESS ASSEMBLY MTD-629-1055
...
5
WIRE ASSEMBLY MTD-629-1077
...
6
WIRE ASSEMBLY-GROUND JU MTD-629-1083
...
7
Self-tapping Screw, #8-18 x .5 MTD-710-0227
...
8
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
9
Pan Phillips Screw, #12-16 x .625 MTD-710-1823
...
10
Hex Sems Nut, 1/4-20 MTD-712-0271
...
11
HEX NUT MTD-712-3006
...
12
Outer Seat Spring Switch MTD-925-1303
...
13
Solenoid MTD-925-1426A
...
14
Inner Seat Spring Switch MTD-725-1439
...
15
PTO SWITCH (BLACK KNOB) ANSI SYM MTD-925-1716A
...
16
Ignition Switch MTD-925-1741
...
17
Key MTD-925-1745A
...
18
Key MTD-925-1745A
...
19
SWITCH SPRING MTD-725-1774
...
20
INDICATOR MONITOR MTD-925-1976
...
21
Plunger Switch (Parking Brake) MTD-725-3223
...
22
Insulator Boss Plate MTD-726-0278
...
23
Insulator Plate MTD-726-0279
...
24
External Lock Washer, 1/4 MTD-736-0222
...
25
L-Wash. 1/4" I.D. MTD-936-0329
