Yard Man 13AD624G401 (2002) Lawn Tractor

Model: 13AD624G401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

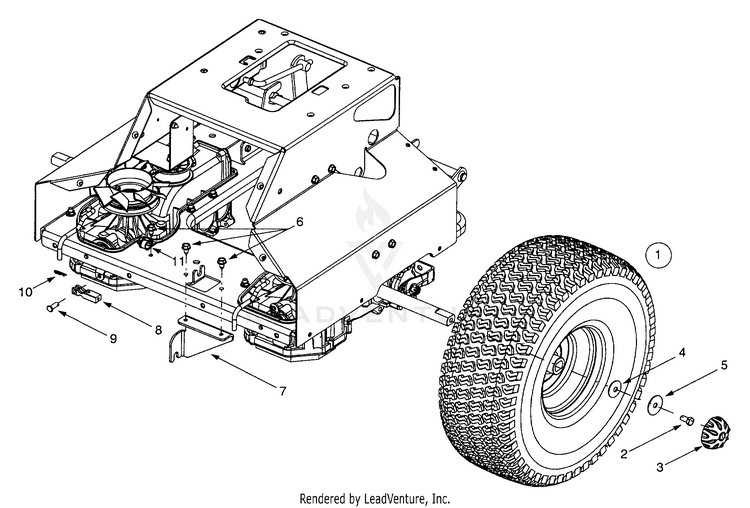

Wheels Rear

...
...
1
WHEEL ASSEMBLY COMPLETE, 20 x 7 MTD-634-0210
...
xx
RIM ASSEMBLY (8 x 5.38 x 1) MTD-634-0209
...
xx
TUBELESS VALVE MTD-934-0255
...
xx
TURF TIRE MASTER 2 MTD-734-2018
...
2
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
3
HUB CAP MTD-731-2290B
...
4
BELL WASHER MTD-936-0356
...
5
Flat Washer, .410 x 1.59 x .062 MTD-736-0372
...
6
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
7
CABLE MOUNT BRACKET MTD-783-1069
...
8
CONTROL YOKE MTD-748-0452
...
9
CLEVIS PIN MTD-711-1601
...
10
Internal Cotter Pin, 5/16 MTD-714-0104
...
11
Clamp, 9/16 MTD-726-0272
