Yard Man 13AD624G401 (2002) Lawn Tractor

Model: 13AD624G401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

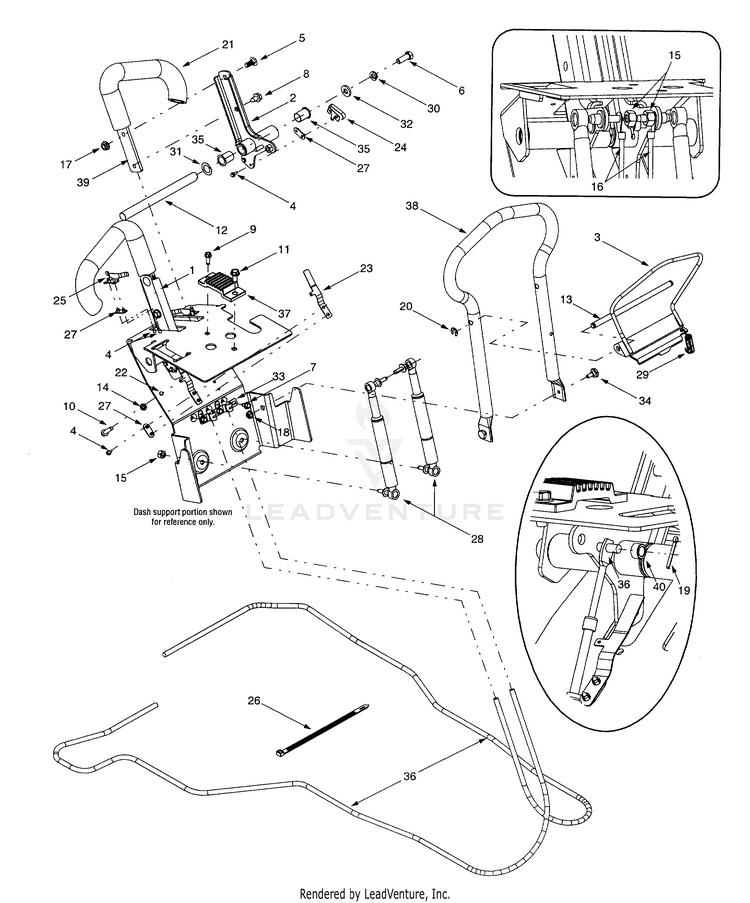

Control Handle Assembly

...
...
1
HANDLE BELLCRANK ASSEMBLY (RH) MTD-683-0317
...
2
HANDLE BELLCRANK ASSEMBLY (LH) MTD-683-0318
...
3
BAIL MTD-683-0320
...
4
Self-tapping Screw, #8-18 x .5 MTD-710-0227
...
5
Carriage Screw, 5/16-18 x .75 MTD-710-0451
...
6
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
7
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
8
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
9
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
10
Self-tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
11
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
12
SHAFT-CONTROL MTD-711-1509
...
13
ROD-CRUISE MTD-711-1535
...
14
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
15
NUT MTD-712-0365
...
16
WIRE ASSEMBLY-GROUND JU MTD-629-1083
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
LOCK NUT 1/4 MTD-912-3027
...
19
Cotter Pin, 3/32 x .75 MTD-714-0507
...
20
E-RING 0375 DIA SHAFT MTD-916-0125
...
21
Foam Grip MTD-720-0278A
...
22
CAP MTD-720-0322
...
23
SPRING SWITCH MTD-725-1760
...
24
SPRING SWITCH MTD-725-1773
...
25
SWITCH-SPRING LEVE MTD-725-1980
...
26
Cable Tie MTD-726-0230
...
27
Insulatop Nut Plate MTD-926-0320
...
28
DAMPER CYLINDER MTD-727-3113
...
29
EXTENSION SPRING MTD-732-0568
...
30
Lock Washer, 3/8 MTD-736-0169
...
31
FLAT WASHER MTD-936-0349
...
32
Flat Washer, .406 x .875 x .105 MTD-736-3004
...
33
CABLE BRACKET CLAMP MTD-783-1265
...
34
SHOULDER SCREW MTD-938-0255
...
35
Flange Bearing, .630 x .693 MTD-741-0591
...
36
CONTROL CABLE 77.5"LG MTD-746-1121
...
37
INDEX GUIDE MTD-748-0438
...
38
TUBE-CRUISE G-6 MTD-749-1236
...
39
HANDLE-CONTROL G-6 MTD-749-1237
...
40
SPACER MTD-750-1298
