product name

Yard Man 13AD624G401 (2002) Lawn Tractor

Model: 13AD624G401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

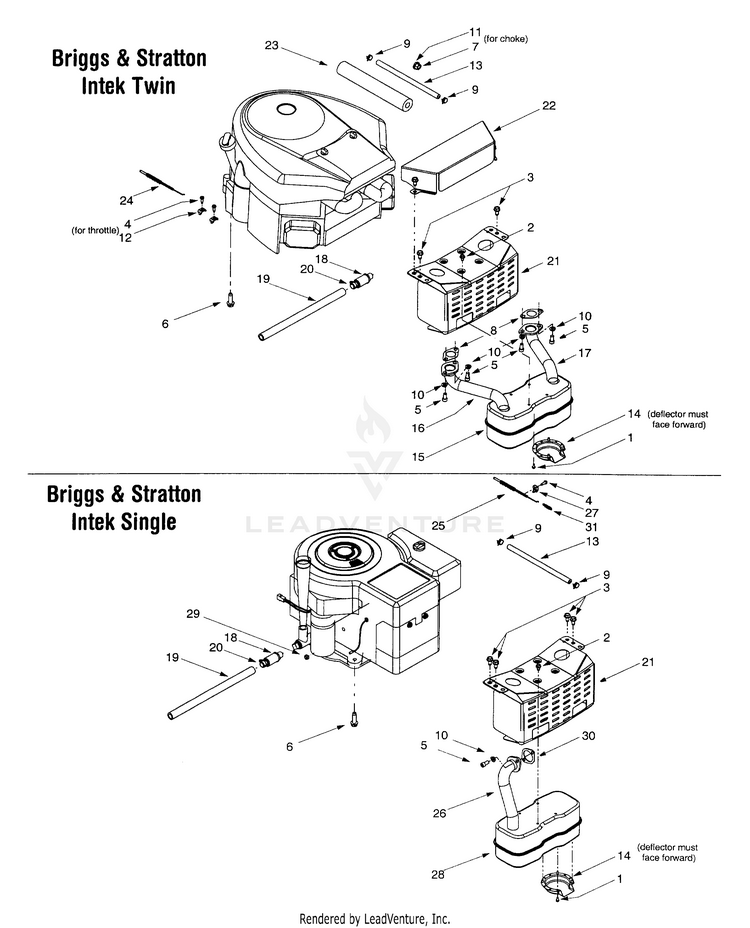

Engine Accessories

...
...
1
Self-tapping Screw, #8-18 x .5 MTD-710-0227
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Screw, #10-32 x .625 MTD-710-1237
...
5
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Self-tapping Screw, 3/8-16 x 1.25 MTD-710-1315
...
7
HEX NUT 3/8-16 GR5 MTD-712-3017
...
8
MUFFLER GASKET MTD-721P0460
...
9
Hose Clamp MTD-726-0205
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Flat Washer, .406 x 875 x .059 MTD-736-0300
...
12
Casing Clamp MTD-751B221535
...
13
Fuel Line Hose MTD-751-0535
...
14
Muffler Deflector MTD-751-0564B
...
15
MUFFLER (DUAL INLET) MTD-951-0616B
...
16
RH Exhaust Pipe MTD-751-0650B
...
17
LH Exhaust Pipe MTD-751-0651B
...
18
Oil Drain Valve MTD-951-10517A
...
19
Oil Drain Hose MTD-751-3141-14
...
20
Oil Drain Cap MTD-751-3142
...
21
Muffler Heat Shield MTD-783-0615E-0637
...
22
HEAT SHIELD MTD-783-0625C
...
23
Foam (fits over fuel line) (Fits over fuel line) MTD-723-3066-24
...
24
THROTTLE CABLE MTD-946-1086
...
25
Throttle Cable MTD-946-1084
...
26
EXHAUST PIPE MTD-751-0619B
...
27
Cable Clamp (B&S) MTD-BS-690798
...
28
Single Inlet Muffler MTD-951-0617C
...
29
Hex Sems Nut, 1/4-20 (For starter cable) MTD-712-0271
...
30
Gasket-Exhaust MTD-BS-692236
...
31
EXTENSION SPRING MTD-732-0966
