Yard Man 13AD624G401 (2002) Lawn Tractor

Model: 13AD624G401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

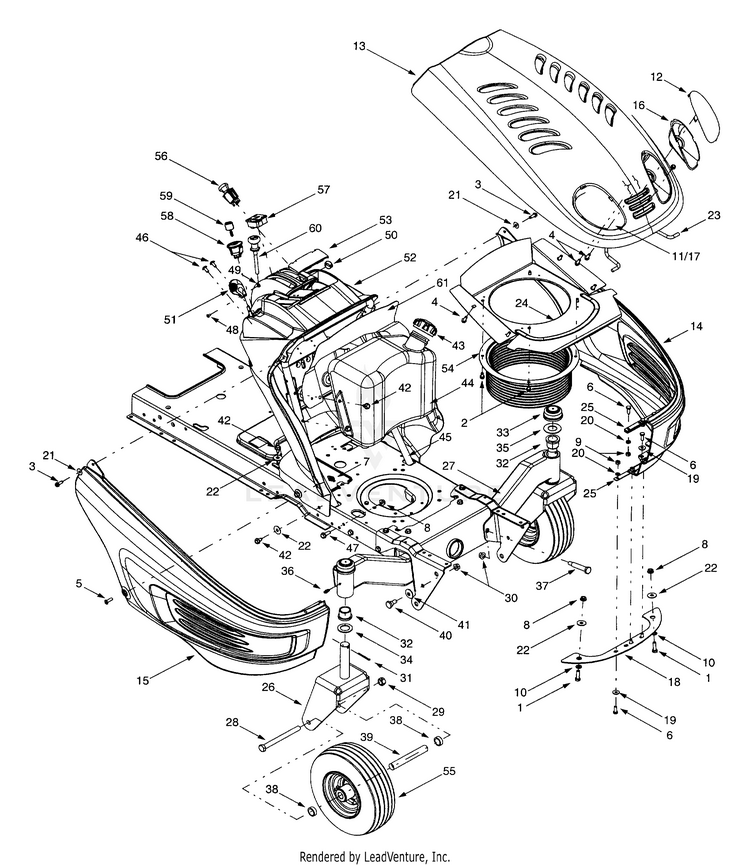

Hood & Electrical

...
...
1
Hex Cap Screw, 5/16-18 x 1.0 MTD-710-0376
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
4
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
5
Pan Phillips Screw, 1/4-20 x .75 MTD-710-0924
...
6
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
7
U-type Speed Nut, 1/4-20 MTD-712-0292
...
8
HEX FLANGE NUT MTD-712-3004A
...
9
HEX NUT MTD-712-3006
...
10
Speed Nut MTD-726-0201
...
11
RH Head Light Lens Style 4 MTD-931-1978
...
12
HEADLIGHT LENS (LH) MTD-931-1979
...
13
HOOD 4-STYLE (YARD-MAN YELLOW) MTD-931-1980B
...
14
SIDE PANEL 4 STYLE (LH) MTD-931-04958
...
15
SIDE PANEL 4-STYLE (RH) MTD-931-1982C
...
16
LABEL-LENSE MTD-777X41432
...
17
LABEL-LENSE MTD-777X41432
...
18
HEAT SHIELD MTD-731-2272
...
19
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
20
L-Wash. 1/4" I.D. MTD-936-0329
...
21
Flat Washer, .283 x .75 x .030 MTD-736-0342
...
22
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
23
HOOD SUPPORT ROD MTD-747-1132A
...
24
HEAT SHIELD MTD-783-0808A-0637
...
25
GRILLE BRACKET MTD-783-1000A
...
26
Castor Assembly MTD-683-0425
...
27
AXLE ASSEMBLY-PIVOT BAR MTD-683-0453
...
28
Hex Cap Screw, 1/2-20 x 5.5 MTD-710-0506
...
29
Hex Lock Nut, 1/2-20 MTD-712-0239
...
30
Flange Lock Nut 3/8-16 MTD-912-0431
...
31
Cotter Pin, .125 x 1.5 MTD-914-3001
...
32
Bearing MTD-931-0374
...
33
Plastic Cap MTD-731-0556
...
34
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
35
Washer, 1.00 x 2.00 x .075 MTD-736-04605
...
36
GREASE FITTING (SLOTTED) MTD-737-0280
...
37
Shoulder Screw .50 x 2.230:3/8-16 MTD-738-1011A
...
38
Spacer, .790 x .347 MTD-750-0456
...
39
Wheel Spacer MTD-750-3197A
...
40
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
41
Bell Washer, .39 x 1.13 x .062 MTD-736-0331
...
42
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
43
TANK CAP (Fits both fuel tanks) MTD-751-0603B
...
44
Fuel Tank 2 Gal. (Shown) MTD-751-0659D
...
xx
FUEL TANK (Not shown) MTD-751-0658B
...
45
SUPPORT ASSEMBLY-DASH MTD-683-0316
...
46
Torx Self-tapping Screw, 1/4-14 x .625 MTD-710-1017
...
47
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
48
Torx Screw, #8-32 x .375 MTD-710-3217
...
49
Hex Nut, 8-32 MTD-712-0142
...
50
CAP PLUG MTD-720-0425
...
51
Throttle Control Lever MTD-731-1857
...
52
DASH PANEL MTD-731-2321
...
53
CAP-DASH MTD-731-2483
...
54
INTAKE BELLOW MTD-731-2232A
...
xx
INTAKE BELLOW MTD-731-2234A
...
55
WHEEL ASSEMBLY 11 x 4 x 5 MTD-634-3169
...
56
PTO SWITCH (BLACK KNOB) ANSI SYM MTD-925-1716A
...
57
INDICATOR MONITOR MTD-925-1976
...
58
Ignition Switch MTD-925-1741
...
59
Key MTD-925-1745A
...
60
CONTROL-CHOKE 45.5"LG x 1.5"EXT (If so equipped) MTD-746-1134
...
61
HEAT SHIELD MTD-783-1350
