Yard Man 13AD604G401 (2000) Lawn Tractor

Model: 13AD604G401 (2000)

Back To Assemblies

Save Part Not Listed?
product name

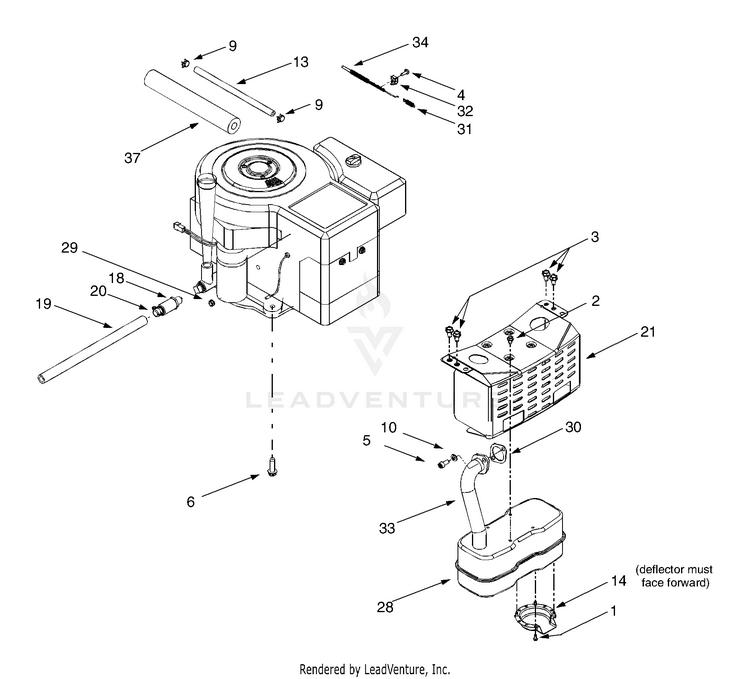

Muffler/Engine Accessories Intek Single

...
...
1
Self-tapping Screw, #8-32 x .375 MTD-710-0148
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Screw, #10-32 x .625 MTD-710-1237
...
5
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Self-tapping Screw, 3/8-16 x 1.25 MTD-710-1315
...
9
Hose Clamp MTD-726-0205
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Fuel Line Hose MTD-751-0535
...
14
Muffler Deflector MTD-751-0564B
...
18
Oil Drain Valve MTD-951-10517A
...
19
Oil Drain Hose MTD-751-3141-14
...
20
Oil Drain Cap MTD-751-3142
...
21
Muffler Heat Shield MTD-783-0615E-0637
...
28
Single Inlet Muffler MTD-951-0617C
...
29
Hex Sems Nut, 1/4-20 (For starter cable) MTD-712-0271
...
30
Gasket-Exhaust (Intek Single) MTD-BS-692236
...
31
EXTENSION SPRING MTD-732-0966
...
32
Cable Clamp (B&S) MTD-BS-690798
...
33
EXHAUST PIPE (Intek Single) MTD-751-0619B
...
34
Throttle Cable (Intek Single) MTD-946-1084
...
37
Foam (fits over fuel line) MTD-723-3066-24
