Yard Man 13AC76LF055 (2013) Lawn Tractor

Model: 13AC76LF055 (2013)

Back To Assemblies

Save Part Not Listed?
product name

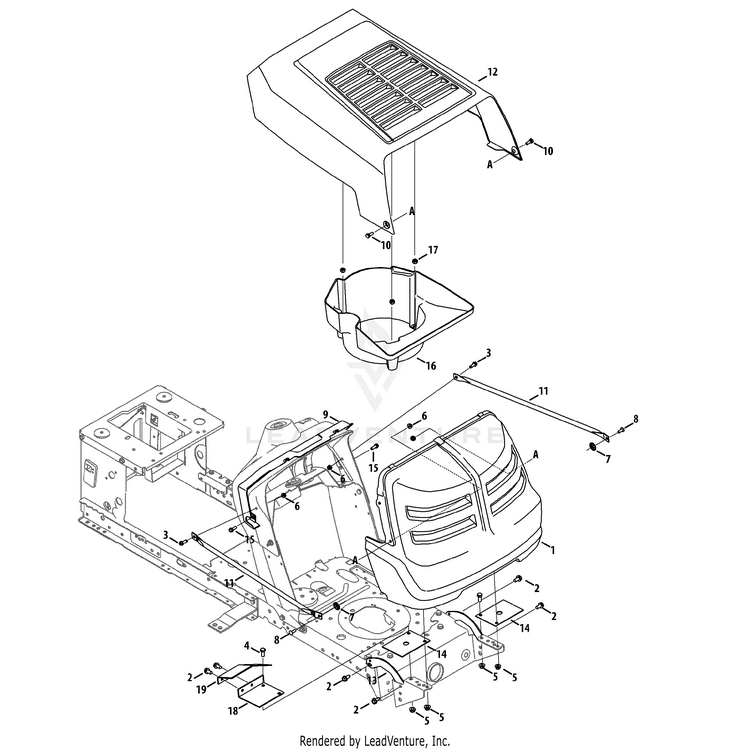

Hood & Grille

...
...
1
GRILL ASSEMBLY-L STYLE MTD-931-05028
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Screw, Tap, 1/4-20, 0.750 MTD-710-0642
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Flange Lock Nut, 1/4-20 MTD-712-04064
...
7
Nut, Push-on, .25 Dia. MTD-726-04012
...
8
Rivet, flat Head 1/4" MTD-728-0162
...
9
Collar, dash, 0/2 Style MTD-731-05012B
...
10
Bolt, Shoulder, .375 X .125 MTD-938-0952A
...
11
Grill Support Rod MTD-749-04220-0637
...
12
Hood MTD-783-04608-0662
...
13
Front Pivot Support Bracket MTD-783-05027-0637
...
14
SUPPORT BRACKET MTD-783-06682-0637
...
15
Screw, 1/4-15 x .750 MTD-710-0895
...
16
Plenum MTD-731-09514
...
17
SHOULDER SPACER .17ID x .375 X.09 MTD-748-05016
...
18
HEAT SHIELD L-STYLE MTD-783-08234-0637
...
19
HEAT SHIELD L-STYLE MTD-783-08236
