Yard Man 13AC76LF055 (2012) Lawn Tractor

Model: 13AC76LF055 (2012)

Back To Assemblies

Save Part Not Listed?
product name

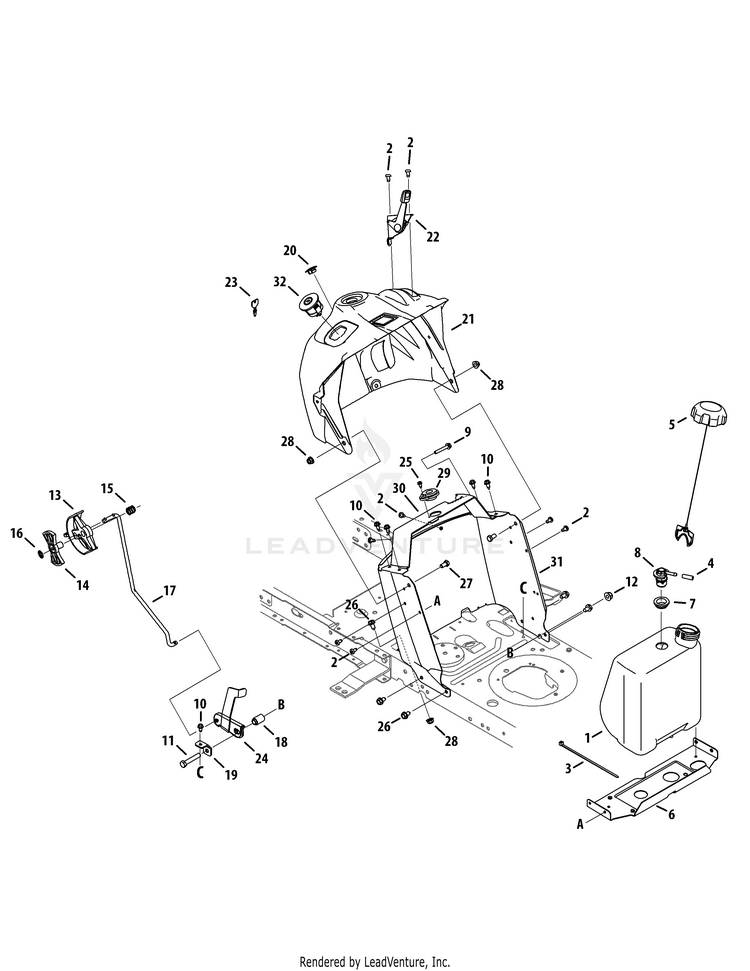

Dash & Fuel Tank

...
...
1
FUEL TANK (1.36 GAL) MTD-651P08849
...
2
SCREW 1/4-20 x .5 MTD-710-05070A
...
3
Cable Tie, 36.0 Long MTD-726-0230
...
4
Hose Vent MTD-751-12089-28
...
5
FUEL CAP W/12"TETHER VENTED MTD-951-12179C
...
6
FUEL TANK BRACKET MTD-783-07083A
...
7
Rubber Grommet, 23 x 3.55 MTD-735-04081
...
8
Rollover Valve MTD-751-12118
...
9
Hex Screw, 1/4-20 x 1.50 MTD-710-05237
...
10
Tap Screw, 1/4-20, 0.625 MTD-710-1652
...
11
Hex Screw, 3/8-16, 2.00, Gr5, Std MTD-710-3144
...
12
Flange Lock Nut, 3/8-16 MTD-712-04065
...
13
SHIFT LEVER MTD-731-07885B
...
14
SPEED CONTROL-6 SP MTD-731-07965A
...
15
Compr. Spring, .685 OD x .63 MTD-732-04877
...
16
Lock Washer, 1/4 MTD-736-3006
...
17
Speed Selector Control Rod MTD-747-05398
...
18
Flange Spacer, .390 X .671 X 1.095 MTD-750-04465C
...
19
Speed Latch MTD-783-06823
...
20
Choke Plug MTD-731-05265
...
21
Dash, Upper NRMC MTD-931-08542C
...
22
THROTTLE CABLE 28" x 1.1 MTD-946-04367A
...
23
Key MTD-925-1745A
...
24
LATCH SPEED BRACKET (POWDER BLACK) MTD-783-06991A-0637
...
25
Screw, #10-16 x .500 MTD-910-0224
...
26
Tap Screw,5/16-18, 0.625 MTD-710-0604A
...
27
Hex Screw, 5/16-18 x .625 MTD-710-3025
...
28
Flange Lock Nut, 5/16-18 MTD-712-04063
...
29
Bearing, .628 ID x 1.36 MTD-741-0587
...
30
Bracket, Steering Support MTD-783-06785C-0637
...
31
LOWER DASH (POWDER BLACK) MTD-783-06811F-0637
...
32
Key Switch MTD-925-04019
