Yard Man 13AA604F401 (2002) Lawn Tractor

Model: 13AA604F401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

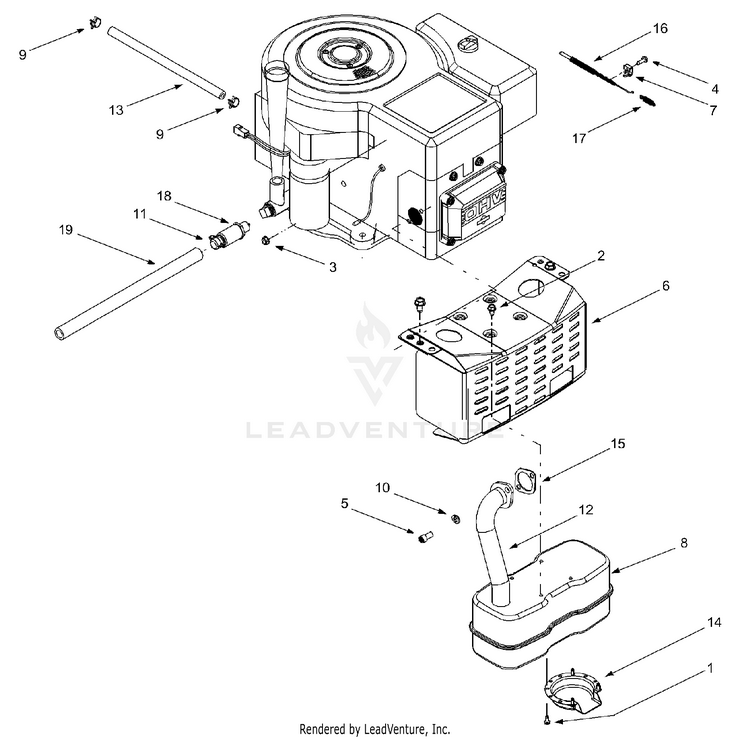

Engine Accessories

...
...
1
Self-tapping Screw, #8-18 x .50 MTD-710-0227
...
2
Self-tapping Screw, 1/4-20 x .50 MTD-710-0599
...
3
Hex Sems Nut, 1/4-20 MTD-712-0271
...
4
Screw, #10-32 x .625 MTD-710-1237
...
5
Socket Cap Screw, 5/16-18 x .625 MTD-710-1314A
...
6
Muffler Heat Shield MTD-783-0615E-0637
...
7
Cable Clamp (B&S) MTD-BS-690798
...
8
Single Inlet Muffler MTD-951-0617C
...
9
Hose Clamp MTD-726-0205
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Oil Drain Cap MTD-751-3142
...
12
EXHAUST PIPE MTD-751-0619B
...
13
Fuel Line Hose MTD-751-0535
...
14
Muffler Deflector MTD-751-0564B
...
15
Gasket-Exhaust MTD-BS-692236
...
16
Throttle Cable MTD-946-1084
...
17
EXTENSION SPRING MTD-732-0966
...
18
Oil Drain Valve MTD-951-10517A
...
19
Oil Drain Hose MTD-751-3141-14
