Yard Man 13AA604F401 (2002) Lawn Tractor

Model: 13AA604F401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

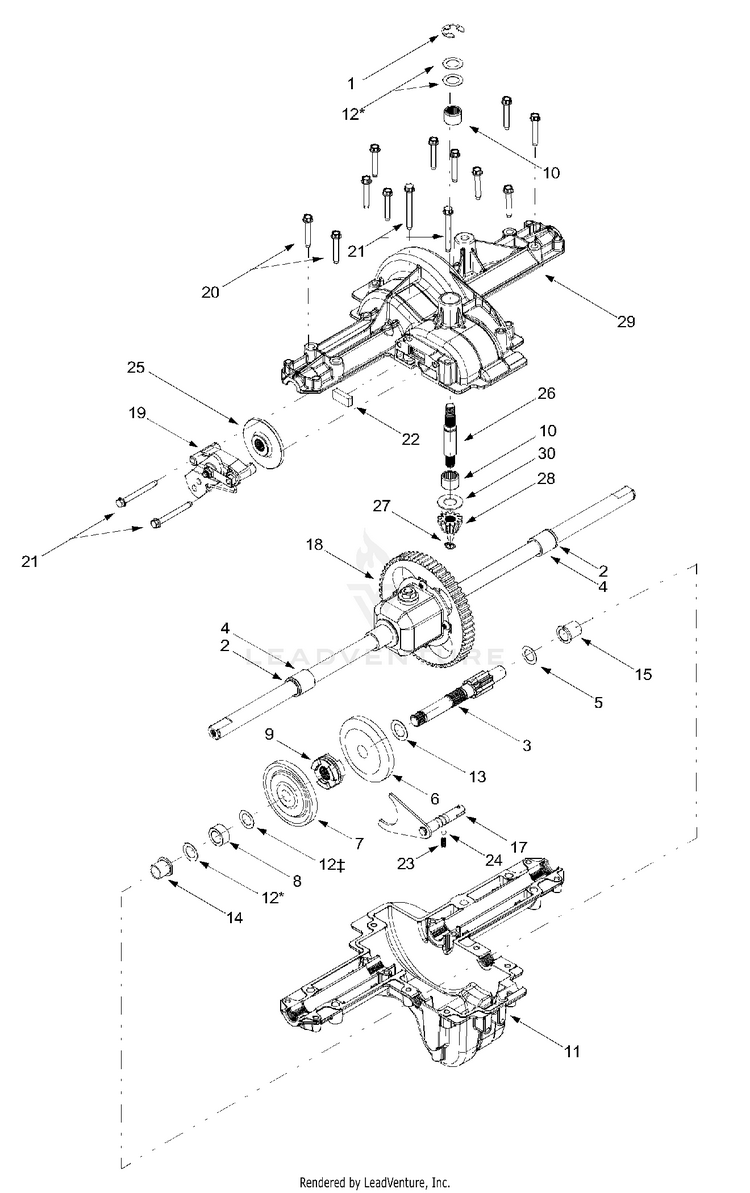

Transmission

...
...
1
E-ring, .75 MTD-716-0231
...
2
SEAL .750 x 1.00 x .125 MTD-921-0338
...
3
Drive Shaft MTD-711-1431
...
4
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
5
THRUST WASHER MTD-736-0495
...
6
Bevel Gear 42T Small I.D. MTD-917-1362
...
7
BEVEL GEAR .695" 42 TEETH MTD-917-1363
...
8
SPACER-.633 x 1.0 x .513 MTD-750-1234
...
9
Clutch Collar MTD-718-0228
...
10
Needle Brg. 5/8" I.D. x 7/8" O.D. MTD-941-0525
...
11
Lower Housing MTD-719-0394
...
12
FLAT WASHER Use applicable flat washer in this application allowing proper end-play. MTD-936-0336
...
xx
Flat Washer, 5/8 x 1.0 x .040 Use applicable flat washer in this application allowing proper end-play. MTD-736-0337
...
xx
FLAT WASHER Use applicable flat washer in this application allowing proper end-play. MTD-936-0349
...
13
Flat Washer, .70 x 1.125 x .031 MTD-736-0519
...
14
Flange Brg. 5/8" I.D. x 3/4" Lg. MTD-941-0336
...
15
Flange Bearing 5/8" I.D. x 15/16" Lg. MTD-941-0337
...
?16
SPACER .635ID x 1. MTD-750-1238
...
17
DETENT SHAFT ASSEMBLY MTD-611-0133
...
18
DIFFERENTIAL ASSEMBLY MTD-918-04097A
...
19
BRAKE ASSEMBLY (LH) MTD-961-0006
...
20
Self-tapping Screw, 1/4-20 x 1.625 MTD-710-1325
...
21
Self-tapping Screw, 1/4-20 x 2.375 MTD-710-1206
...
22
BRAKE PUCK MTD-917-0678
...
23
DETENT SHAFT SPRING MTD-932-05125
...
24
DETENT BALL .250 MTD-741-0862
...
25
Brake Disc MTD-761-0202
...
26
INPUT SHAFT MTD-711-1430
...
27
Retaining Ring, .437 MTD-716-0108
...
28
14-tooth Bevel Pinion MTD-717-1464
...
29
UPPER HOUSING KIT MTD-953-04023
...
30
FLAT WASHER MTD-936-0337
...
xx
TRANSMISSION MTD-918-0551A
