Yard Man 13A-328-402 (2000) Lawn Tractor

Model: 13A-328-402 (2000)

Back To Assemblies

Save Part Not Listed?
product name

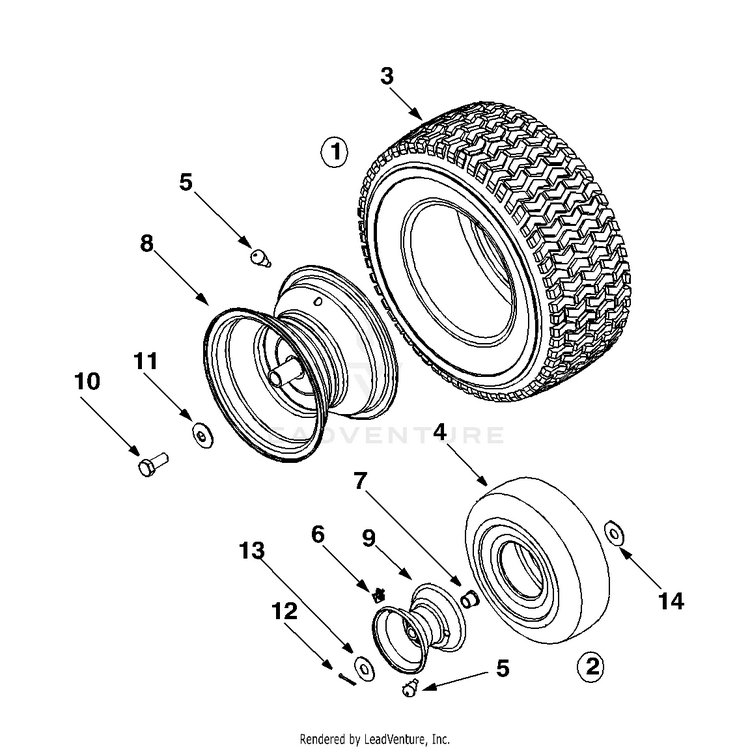

Wheels

...
...
1
Rear Wheel Compl. MTD-634-0139
...
2
WHEEL ASSEMBLY (11 x 4-4) MTD-634-0147
...
3
Rear Tire MTD-734-1727
...
4
Tire Only MTD-734-1382-0901
...
5
TUBELESS VALVE MTD-934-0255
...
6
Grease Fitting MTD-737-0211A
...
7
Flange Bearing MTD-741-0353
...
8
Rim Assembly MTD-634-0138
...
9
RIM MTD-734-1455A
...
10
Hex Bolt 5/16-24 x .75" MTD-710-0627
...
11
Beleville Washer MTD-736-0242
...
12
Cotter Pin MTD-714-0115
...
13
Flat Washer MTD-736-0285
...
14
Flat Washer MTD-736-0366
...
?15
Hub Cap (Not shown) MTD-931-0484A
