Yard Man 12AS979V401 (2002) Self-Propelled Walk-Behind Mower

Model: 12AS979V401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

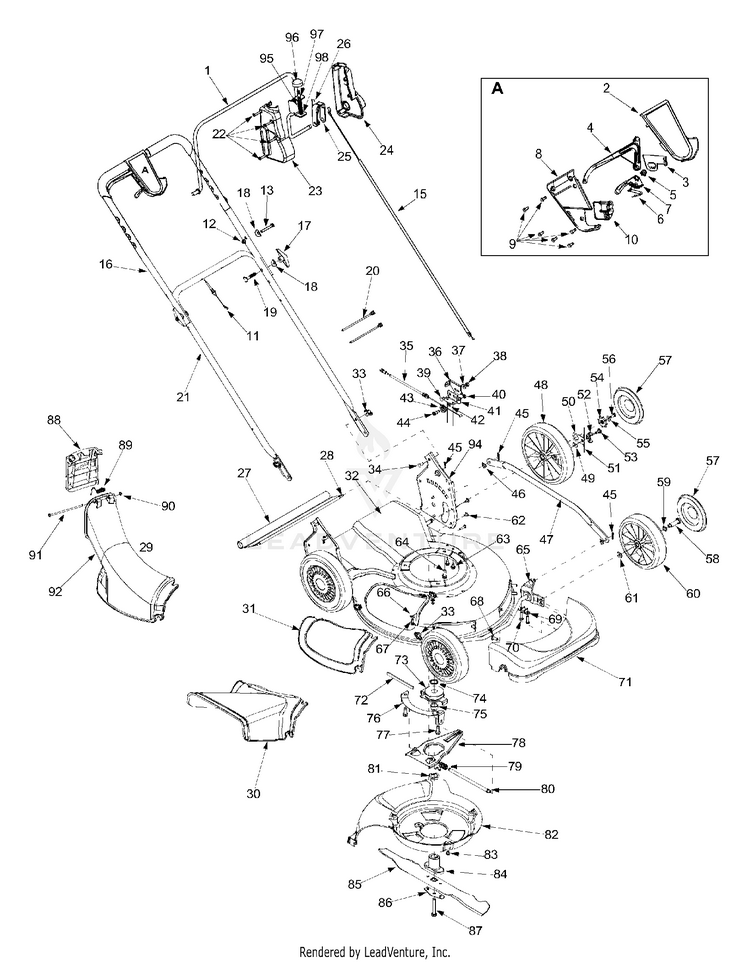

General Assembly

...
...
1
BAIL ASSEMBLY MTD-647-0070
...
xx
BAIL COVER (Not shown) MTD-731-2623
...
2
HOUSING CONTROL KIT MTD-753-0717
...
3
6 Spd. Rack Cable Bracket MTD-16864
...
4
Drive Control MTD-731-0620A
...
5
Gear Insert MTD-913-0397
...
6
Shift Lever Spring MTD-732-0627A
...
7
6 SPEED SHIFT LEVER MTD-731-0924
...
8
HOUSING CONTROL KIT MTD-753-0717
...
9
C Sunk Tap Screw #10 x .75 Lg MTD-710-1667A
...
10
HOUSING CONTROL KIT MTD-753-0717
...
11
Drive Cable MTD-946-0711B
...
12
Hex Lock Nut 1/4-20 Gr. 8 MTD-712-0324
...
13
Hex Hd. Cap Screw 1/4-20 Gr. 5 MTD-710-0501
...
?14
SCREW 1/4-20 x 1.310 MTD-710-1270
...
15
Control Cable 46" MTD-946-1131
...
16
UPPER HANDLE MTD-749-1405A-0637
...
17
Star Knob MTD-720-04072A
...
18
Saddle Washer .320 ID x .830 OD MTD-736-0451
...
19
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
20
Cable Tie MTD-725-0157
...
21
Lower Handle MTD-749-0907B
...
22
Hi-Low Screw MTD-710-1256
...
23
CONTROL COVER (RH) MTD-731-2533
...
24
CONTROL COVER (LH) MTD-731-2532
...
25
LEVER (ZINC) MTD-782-0156
...
26
TORSION SPRING .431"X .063" MTD-732-1172
...
27
Rear Flap 17.25" Lg. MTD-731-1901A
...
28
Trail Shield Wire MTD-732-0842
...
29
Top Discharge Chute Assembly MTD-931-0066
...
30
DISCHARGE CHUTE 21" MTD-731-1832
...
31
Mulch Cover MTD-931-1833A
...
32
21" DECK (3N1) MTD-782-0046B
...
33
Wing Nut MTD-712-0397A
...
34
Carriage Bolt 1/4-20 x .75 MTD-710-0703
...
35
6 Speed Cable MTD-946-0939A
...
36
CABLE ADJUSTMENT BRACKET MTD-782-7574A-0637
...
37
SPRING WASHER BELL MTD-736-0270
...
38
HEX NUT 1/4-20 MTD-912-0287
...
39
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
40
Hex Nut 1/4-28 MTD-712-0138
...
41
CABLE MOUNTING BRACKET MTD-782-7575B-0637
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
Roller Cable MTD-756-0625
...
44
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
45
Cotter Pin MTD-714-0104
...
46
Bowed Washer MTD-936-0286
...
47
CONTROL ARM MTD-782-0565-0637
...
48
Rear Wheel Ass’y 9 x 2.125 (Drive/Zag/Blk) MTD-734-2044B
...
49
Top Lock Tab Weld Nut 1/4-20 MTD-712-0414
...
50
Ratchet Pawl Plate MTD-16855
...
51
Plastic Spring Ratchet MTD-10622B
...
52
Pawl RH MTD-748-0381
...
xx
PAWL - (LH) MTD-948-0188B
...
53
Shld Screw .340 ID x .285 OD MTD-738-0137A
...
54
Wheel Ratchet MTD-948-0318
...
55
SPRING WASHER BELL MTD-736-0270
...
56
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
57
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
58
Shoulder Screw .498 x 1.445 MTD-738-0102
...
59
Wave Washer.510 ID x.750 OD MTD-936-0504
...
60
Wheels - Front MTD-753-08093
...
61
Spring Washer .401 ID x .870 OD MTD-736-0105
...
62
Screw 1/4-14 x .500 MTD-710-1348
...
63
Screw 1/4-14 x .625 MTD-710-0896
...
64
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
65
Front Axle Assembly MTD-611-0064-0637
...
66
Flat Washer .344 ID x .62 OD MTD-736-0204
...
67
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
68
Torx Screw MTD-710-1242
...
69
Block Bushing MTD-741-0492A
...
70
Hex Washer Screw MTD-710-1241
...
71
FRONT AXLE COVER (YELLOW) MTD-931-1829
...
72
V-Belt MTD-954-0460
...
73
Pulley Assembly MTD-956-0613A
...
74
Sleeve Spacer, .88ID x 1.13OD MTD-950-1071
...
75
Slve Spacer, .88 ID x 1.00 OD MTD-950-1070
...
76
Pivot Bracket MTD-782-7597
...
77
Screw 3/8-18 x 1.0 MTD-710-0654A
...
78
CONTROL ARM 6 SPEED MTD-782-7596A
...
79
TORSION SPRING (LH) MTD-932-0807
...
80
Pivot Shaft MTD-711-1114
...
81
Wave Washer 1.38 ID x .88 OD MTD-736-0526
...
82
Baffle MTD-731-08190A
...
83
Screw 1/4-20 x 3.75 MTD-710-0653
...
84
Blade Adapter Kit MTD-753-0609
...
85
21-inch Mulching Blade MTD-942-0741A
...
86
BLADE BELL SUPPORT MTD-736-0524B-1
...
87
Hex Bolt 3/8-24 x 2.5 MTD-710-1257
...
88
Top Discharge Door Chute MTD-731-1874A
...
89
Torsion Spring MTD-732-0819
...
90
PUSH NUT MTD-726-0111
...
91
CHUTE DOOR PIVOT ROD MTD-747-0965
...
92
Top Discharge Chute Assembly MTD-931-0066
...
94
HANDLE BRACKET (RH) MTD-682-3052
...
xx
HANDLE BRACKET (LH) MTD-682-3053
...
95
COMPRESSION SPRING MTD-732-1171
...
96
BUTTON MTD-720-0428
...
97
PIN MTD-715-0168
...
98
RETAINING RING MTD-716-0209
