Yard Man 12AS449T401 (2002) Self-Propelled Walk-Behind Mower

Model: 12AS449T401 (2002)

Back To Assemblies

Save Part Not Listed?
product name

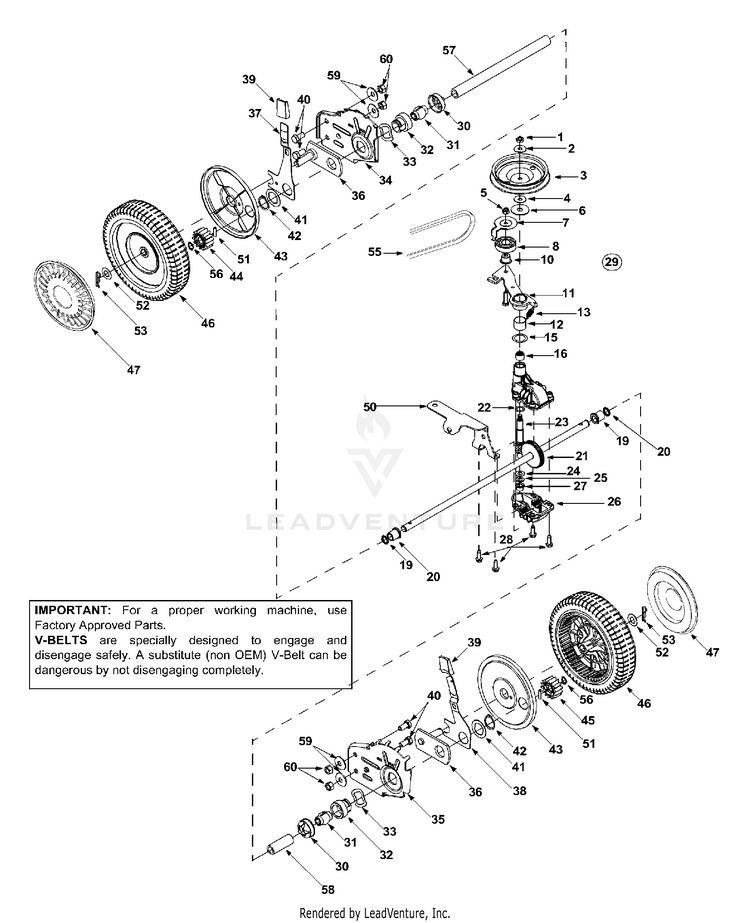

Transmission & Drive

...
...
1
Hex Jam Nut 5/16-24 MTD-712-3025
...
2
Bell Washer .325 x .930 x .045 MTD-736-0425
...
3
INPUT PULLEY ASSEMBLY (3.82X .313X .68) MTD-656-0047
...
4
Bell Washer .325 x .930 x .045 MTD-736-0425
...
5
Lock Nut 1/4-28 MTD-712-0896
...
6
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
7
Belt Keeper MTD-782-7598
...
8
BALL BEARING MTD-941-0600
...
?9
SEAL OIL MTD-721-0457
...
10
Flange Spacer MTD-750-1050
...
11
FRONT IDLER ASSEMBLY MTD-682-0029
...
12
Bearing Sleeve MTD-741-0682A
...
13
Extension Spring MTD-932-0849A
...
?14
Hex Cap Screw 1/4-28 x 1.00 MTD-710-0299
...
15
FLAT WASHER MTD-936-0570
...
16
NEEDLE BEARING MTD-741-0699
...
?17
Plug 1/4 x .437 MTD-721-0325
...
?18
UPPER HOUSING ASSEMBLY MTD-618-0300A
...
19
Oil Seal MTD-921-0329
...
20
Bearing MTD-941-0673
...
21
OUTPUT SHAFT ASSEMBLY MTD-611-0105A
...
22
Flat Washer .504 ID x .70 OD MTD-936-0520
...
23
SHAFT PINION 10T MTD-717-1492
...
24
Thrust Washer .375 x .70 x .030 MTD-736-0314
...
25
THRUST WASHER MTD-936-0569
...
26
HOUSING ASSEMBLY-LOWER MTD-618-0299A
...
27
FLANGE BEARING MTD-741-0672
...
28
SCREW 1/4-20 x .750 MTD-710-1276
...
29
TRANSMISSION ASSEMBLY (Includes Ref. #1 to Ref. #30) MTD-618-0606
...
30
BEARING RETAINER MTD-732-0708
...
31
Bearing Sleeve .50 I.D. MTD-741-0604A
...
32
SUPPORT BEARING MTD-748-0355
...
33
Wave Washer 1.5 x 1.0 x .029 MTD-736-0447
...
34
Height Adjuster Plate - RH MTD-782-0512B-0637
...
35
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
36
HEIGHT ADJ. PIVOT PLATE ASS'Y. MTD-682-0509
...
37
RH Front Lever MTD-732-0706
...
38
LH Front Lever MTD-732-0707
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
41
Washer DD 1.5" O.D. MTD-736-0474
...
42
Snap Ring 1.0 dia. MTD-716-0102
...
43
Wheel Dust Cap MTD-782-7551A
...
44
Gear 14T R.H. MTD-717-1762
...
45
Gear 14T L.H. MTD-717-1761
...
46
Front Wheel MTD-734-04223A
...
47
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
?48
Height Adjustment Ass’y - RH MTD-987-02194A
...
?49
Height Adjustment Ass’y - LH MTD-987-02193A
...
50
IDLER CABLE BRACKET MTD-682-0030
...
51
Dowel Pin MTD-915-0221
...
52
Flat Washer 1/2 x 1.00 x .063 MTD-736-3013
...
53
Cotter Pin .08 x 1.42 MTD-714-0101
...
?54
SHOULDER SCREW .375X.25AB1/4-20 MTD-738-1002
...
55
Drive Belt MTD-954-04032B
...
56
Snap Ring MTD-716-0865
...
57
SLEEVE SPACER MTD-750-1210
...
58
Slev. Spacer MTD-750-1166
...
59
Bell Washer MTD-736-0331
...
60
Hex Nut 3/8-16 MTD-712-0798
