Yard Man 12AS446D701 (2002) Self-Propelled Walk-Behind Mower

Model: 12AS446D701 (2002)

Save Part Not Listed?
product name

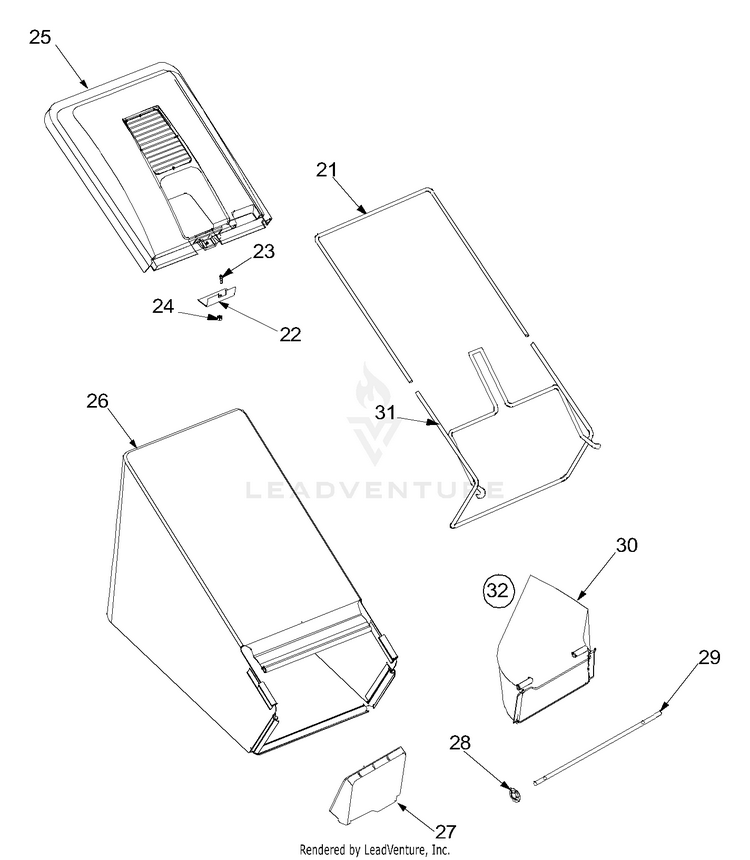

Bagger

...
...
21
Rear Catcher Frame MTD-764-0310A-0637
...
22
MOUNTING BRACKET MTD-782-9011-0637
...
23
Hex Screw 1/4 -20 x .5 MTD-710-0286
...
24
Hex Nylon L-Nut 1/4-20 MTD-712-0324
...
25
HARDTOP COVER If equipped MTD-731-1322A
...
xx
HARDTOP COVER If equipped MTD-731-1876
...
xx
GRASSBAG MTD-764-0433
...
26
GRASS CATCHER BAG MTD-964-0309
...
xx
GRASS CATCHER BAG Not shown MTD-964-0309
...
xx
Grass Bag w/ Half Sail Not shown MTD-764-0650
...
xx
Grass Bag w/ Full Sail Not shown MTD-764-0651
...
27
Mulching Baffle Plug MTD-782-5007C
...
28
Nut: Spd. .3125 ID MTD-726-0201
...
29
ROD MTD-711-0996
...
30
REAR CHUTE DEFLECTOR If equipped MTD-731-1405A
...
31
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637
...
32
CHUTE DEFLECTOR If equipped MTD-190-104-000

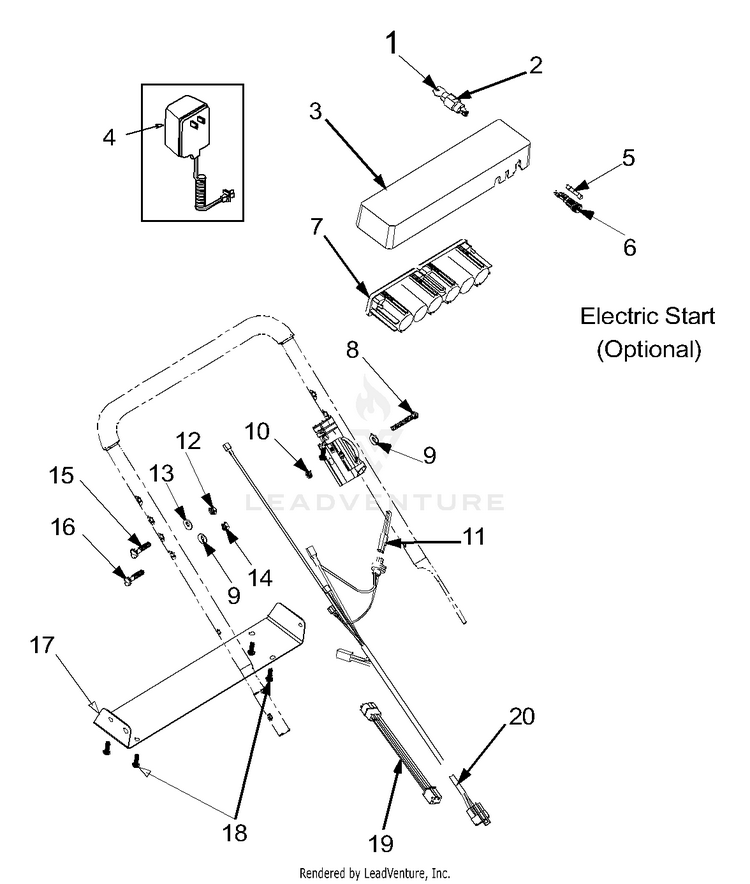

Electric Start

...
...
1
Key If equipped MTD-925-0201
...
2
KEY SWITCH If equipped MTD-925-0873
...
3
UPPER BATTERY TRAY If equipped MTD-731-0891A
...
4
Battery Charger If equipped MTD-925-0727
...
5
7.5 AMP FUSE If equipped MTD-925-0298
...
6
FUSE HOLDER If equipped MTD-925-1428
...
7
Battery Pack - 12 Volt If equipped MTD-925-1276
...
8
Hex Screw:1/4-20:2.0 If equipped MTD-710-0501
...
9
SPRING WASHER BELL If equipped MTD-736-0270
...
10
HEX NUT If equipped MTD-712-0329
...
11
PLUG If equipped MTD-925-1206
...
12
HEX NUT 5/16-18 If equipped MTD-712-3010
...
13
Bell Wash .340 ID x .872 OD If equipped MTD-736-0242
...
14
HEX NUT 1/4-20 If equipped MTD-912-0287
...
15
Carriage Bolt 5/16-18 x 1 If equipped MTD-710-1250
...
16
Carriage Screw If equipped MTD-710-0111
...
17
BATTERY TRAY If equipped MTD-782-9012-0637
...
18
Tapp Screw If equipped MTD-710-0969
...
19
WIRE HARNESS If equipped MTD-725-1538
...
20
WIRE HARNESS If equipped MTD-625-0022

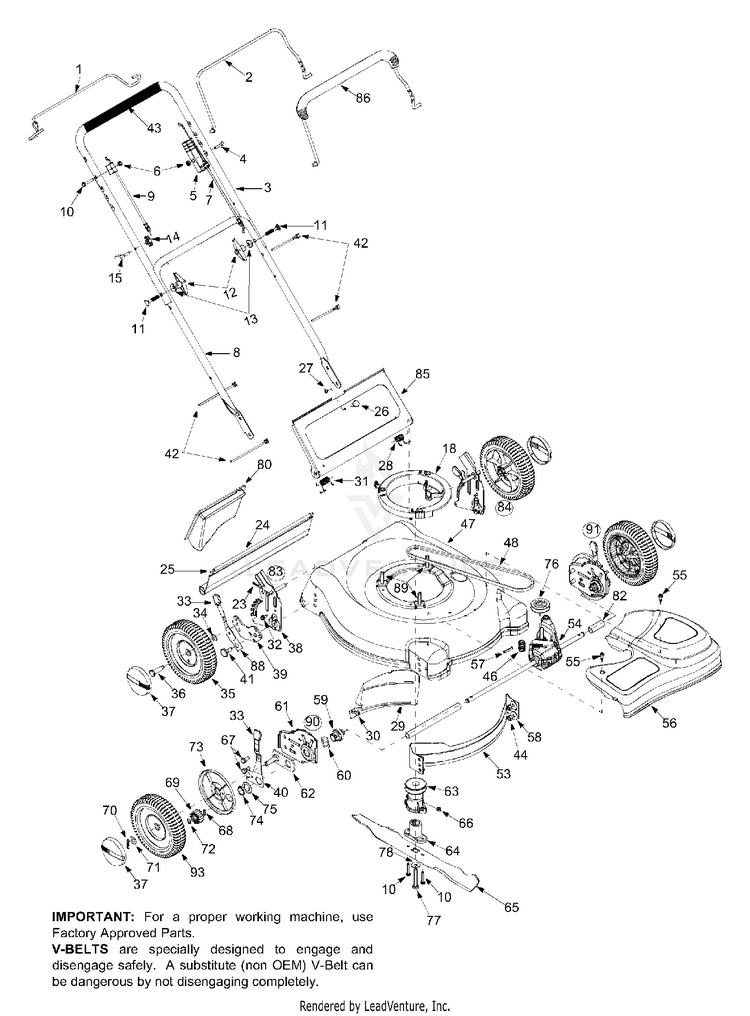

General Assembly

...
...
1
DRIVE BAIL MTD-747-2136-0637
...
2
Std. Control Handle MTD-747-0824B-0637
...
2
Std. Control Handle MTD-747-0824B-0637
...
3
UPPER HANDLE MTD-749-1230A-0637
...
4
SCREW 1/4-20 x 1.310 MTD-710-1270
...
5
Control Housing MTD-746-0883
...
6
Hex Lock Nut 1/4-20 MTD-712-0324
...
7
Control Cable 43.0" Lg. MTD-946-0551
...
7
CONTROL CABLE 55" MTD-946-0555
...
8
Lower Handle MTD-749-0928A-0637
...
9
CONTROL CABLE MTD-946-04026
...
10
Hex Screw 1/4-20 x 1.5" MTD-710-0606
...
11
Carriage Bolt MTD-710-1174
...
12
Handle Knob MTD-720-0284
...
13
Saddle Washer MTD-736-0451
...
14
Wing Nut MTD-720-0279
...
15
Rope Guide MTD-710-1205
...
18
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
23
Hairpin Clip MTD-714-0104
...
24
Rear Trailing Shield MTD-731-04998
...
25
TRAILSHIELD WIRE MTD-732P0700
...
26
KNOB MTD-720-0275
...
27
Scr. Tr. Mach. #10-24 x 0.380" MTD-710-0192
...
28
SPRING-DOOR (LH) MTD-932-0677
...
29
Rear Baffle LH MTD-782-5003A
...
29
Rear Baffle RH (Not Shown) MTD-782-5004B
...
30
Scr. AB 1/4-14 x 0.625" MTD-710-1017
...
31
Torsion Spring RH MTD-732-0678
...
32
Hex Scr. w/ Wash. 1/4-14 x 0.62" MTD-710-0896
...
33
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
34
Bell Washer .375 x .870 MTD-736-0105
...
35
Rear Wheel: Disk Bar Gray MTD-634-0020
...
36
Shoulder Screw MTD-738-0102
...
37
HUB CAP MTD-920-0249
...
37
Hub Cap MTD-731-0981C
...
38
KIT-HANDLE BRACKET MTD-753-05994
...
38
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
39
BAR-PIVOT (LH) *ON MTD-14766
...
39
BAR-PIVOT (RH) *ON MTD-14765
...
40
Front Lever RH MTD-732-0706
...
40
Front Lever LH MTD-732-0707
...
41
Shoulder Screw MTD-738-0507B
...
42
Cable Tie MTD-725-0157
...
43
Foam grip MTD-720-0295
...
44
Hex Nut MTD-712-0798
...
45
BELL WASHER MTD-936-0356
...
46
Belt Tension Spring MTD-732-1043
...
47
21" DECK R DISCHAR MTD-782-0080A
...
48
V-Belt MTD-954-0637A
...
53
FRONT BAFFLE MTD-782P5002B
...
54
Transmission Assembly MTD-753-05465
...
54
EXTENSION SPRING Not shown MTD-732-1039
...
55
Shoulder Screw # 12 -24 MTD-710-1650
...
56
FORWARD TRANSMISSION COVER (YELLOW) MTD-931-04580
...
56
FORWARD TRANSMISSION COVER (YELLOW) MTD-931-04580
...
57
ROLL PIN MTD-715-0169
...
58
Bell Washer MTD-736-0331
...
59
SUPPORT BEARING MTD-748-0355
...
60
Wave Washer MTD-736-0447
...
61
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
61
Height Adjuster Plate - RH MTD-782-0512B-0637
...
62
HEIGHT ADJ. PIVOT PLATE ASS'Y. MTD-682-0509
...
63
Drive Pulley MTD-756-1146A
...
64
Blade Adapter MTD-753-05151
...
65
21-inch Mulching Blade MTD-942-0741A
...
65
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
66
Hex Lock Nut MTD-712-0324
...
67
Hex Screw MTD-710-0216
...
68
Dowel Pin MTD-915-0221
...
69
Gear 14T RH MTD-717-1762
...
69
Gear 14T LH MTD-717-1761
...
70
Hairpin Clip MTD-714-0101
...
71
Flat Washer MTD-736-3013
...
72
Snap Ring MTD-716-0865
...
73
Wheel Dust Cap MTD-782-7551A
...
74
Snap Ring MTD-716-0102
...
75
Washer DD 1.5" O.D. MTD-736-0474
...
76
INPUT PULLEY W/PIN MTD-756-1231
...
77
Hex Bolt MTD-710-1257
...
78
Bell Washer MTD-736-0452
...
80
Mulch Plug Replaces 782-5007A, Also shown with Bagger MTD-782-5007C
...
82
Slev. Spacer LH MTD-750-1166
...
82
SLEEVE SPACER MTD-750-1210
...
83
KIT-HANDLE BRACKET MTD-753-05994
...
84
KIT-HANDLE BRACKET MTD-753-05994
...
85
REAR DISCHARGE DOOR MTD-782-7000
...
86
BAIL COVER MTD-731-2623
...
87
Torsion Spring MTD-932-0731
...
88
SPRING LEVER MTD-732-0417A
...
89
TT Screw MTD-710-1008
...
90
Height Adjustment Ass’y - RH MTD-987-02194A
...
91
Height Adjustment Ass’y - LH MTD-987-02193A
...
92
Weld Pin MTD-710-1248
...
93
Front Wheel MTD-734-04223A

Shroud Chart

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
731-1620A
ENGINE SHROUD GRAY MTD-731-1620A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934
ENGINE SHROUD MTD-731-1934
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510143208
SHROUD ENG MTD-7510143208
...
751A143188
SHROUD ENGINE MTD-751A143188
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
751B281451
SHROUD MTD-751B281451
...
710-1256
SCREW-PAN HD PHILS MTD-710-1256
...
751B281476
ENGINE SHROUD MTD-751B281476
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
Shroud - Red MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011
...
751B2251037
Control Cover MTD-751B2251037
...
751B281136
REWIND COVER MTD-751B281136
...
751B281145
LINKAGE COVER MTD-BS-690595
...
751B095130
HEX SCREW MTD-BS-691147
