Yard Man 12AEB2JZ701 (2013) Self-Propelled Walk-Behind Mower

Model: 12AEB2JZ701 (2013)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

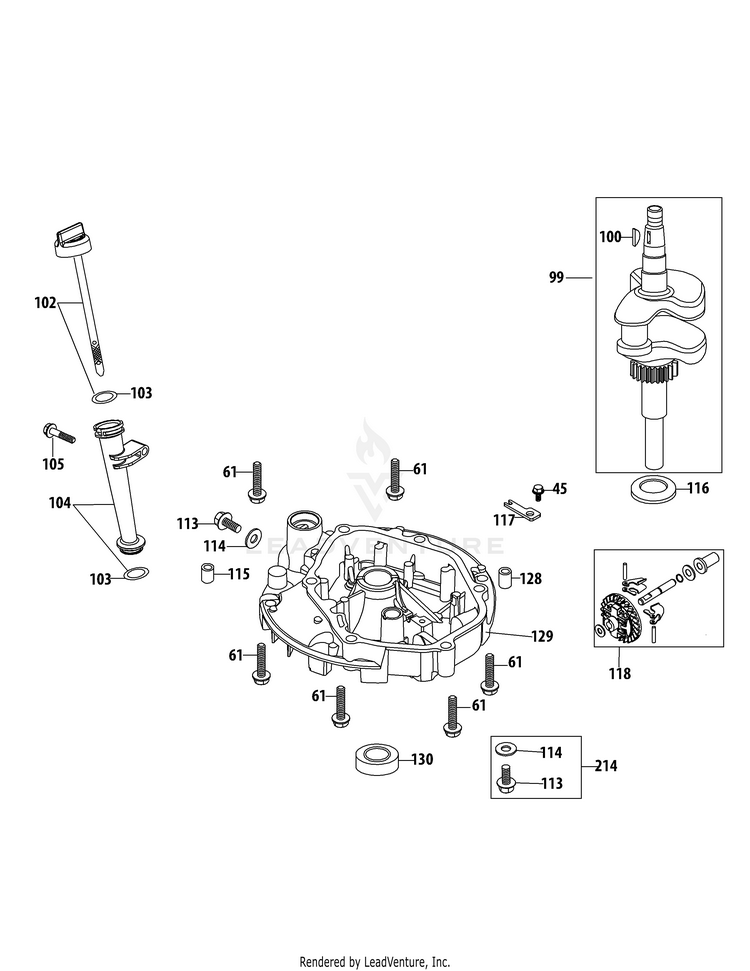

2P70MU Crankshaft & Crankcase Cover

...
...
45
Bolt M6X14 MTD-710-04916
...
61
Bolt M8X50 MTD-710-04922
...
99
CRANKSHAFT ASSEMBLY MTD-951-11624
...
100
WOODRUFF KEY MTD-751P10307A
...
102
Dipstick Assembly MTD-951-11764B
...
103
OIL FILL TUBE O-RING MTD-951-11547
...
104
Oil Filler Tube Assemlby MTD-951-11765A
...
105
Bolt M6X35 MTD-710-04980
...
113
Oil Drain Plug MTD-710-04906
...
114
FLAT WASHER MTD-736-04440A
...
115
DOWEL PIN MTD-715-04089
...
116
Crankshaft Thrust Washer MTD-736-04491
...
117
GOVERNOR GEAR MOUNTING PLATE MTD-951-11625
...
118
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11626
...
128
DOWEL PIN 9 X 14 MTD-715-04096A
...
129
CRANKCASE COVER MTD-951-11794
...
130
LOWER CRANKSHAFT SEAL MTD-951-11627
...
214
Oil Drain Plug And Washer Assy MTD-951-10370
