Yard Man 12AEB2JZ701 (2013) Self-Propelled Walk-Behind Mower

Model: 12AEB2JZ701 (2013)

Back To Assemblies

Save Part Not Listed?
product name

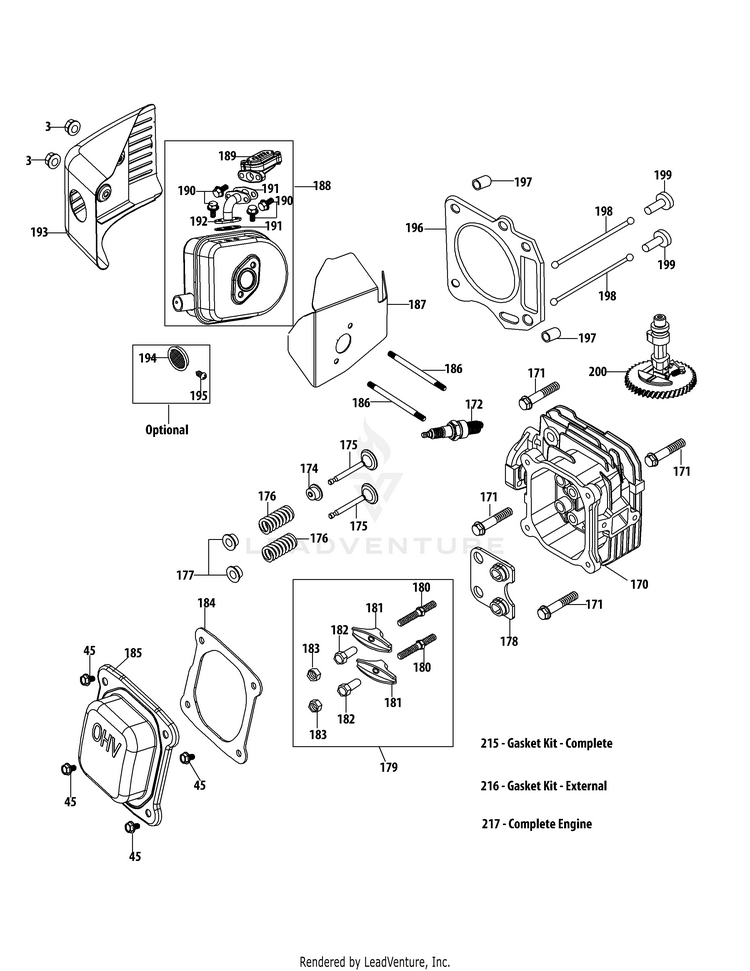

2P70MU Cylinder Head

...
...
3
Nut M6 MTD-712-05015
...
45
Bolt M6X14 MTD-710-04916
...
170
Cylinder Head Assembly (Incl.167,168,170,173-478,180-184,187,196) MTD-951-10413B
...
171
Bolt M8X54 MTD-710-04982
...
172
Spark Plug MTD-951-10292A
...
174
VALVE SEAL MTD-951-11818
...
175
Valve Kit MTD-951-10345
...
176
Valve Spring MTD-951-12116
...
177
Valve Spring Retainer MTD-951-12000
...
178
PUSH ROD GUIDE MTD-951-11629
...
179
ROCKER ARM MTD-951-11606A
...
180
Rocker Arm Stud MTD-710-04902
...
181
Rocker Arm MTD-951-12001
...
182
Fulcrum Nut MTD-751-11123
...
183
Jam Nut MTD-751-11124
...
184
VALVE COVER GASKET MTD-951-11551
...
185
VALVE COVER MTD-951-11548
...
186
Muffler Stud M6X95 MTD-710-05094
...
186
Muffler Stud Assemlby MTD-951-10342
...
187
MUFFLER GASKET MTD-951-12474
...
188
Muffler Assembly MTD-951-12740
...
189
SECONDARY AIR VALVE MTD-951-12741
...
190
BOLT M6 x 12 MTD-710-05434
...
191
Secondary Air Valve Gasket MTD-951-12743
...
192
SECONDARY AIR TUBE MTD-951-12742
...
193
Muffler Shield MTD-951-12744
...
194
SPARK ARRESTOR MTD-951-10351A
...
195
Spark Arrestor Screw MTD-710-04983
...
196
CYLINDER HEAD GASKET MTD-951-11630
...
197
Cylinder Head Dowel Pin 10×16 MTD-715-04108
...
198
Push Rod Kit MTD-951-10344
...
199
Tappet MTD-951-11607
...
200
CAMSHAFT ASSEMBLY MTD-951-11767
...
215
GASKET KIT (COMPLETE) (Incl.47,49,75,97,103,114,130,166,168,184,187,196) MTD-951-10416A
...
216
Gasket Kit - External (Incl.49,103,114,166,168,184,187) MTD-951-10417A
...
217
COMPLETE ENGINE 173cc MTD-952Z2P70MU
