Yard Man 12AE445G701 (2006) Self-Propelled Walk-Behind Mower

Model: 12AE445G701 (2006)

Back To Assemblies

Save Part Not Listed?
product name

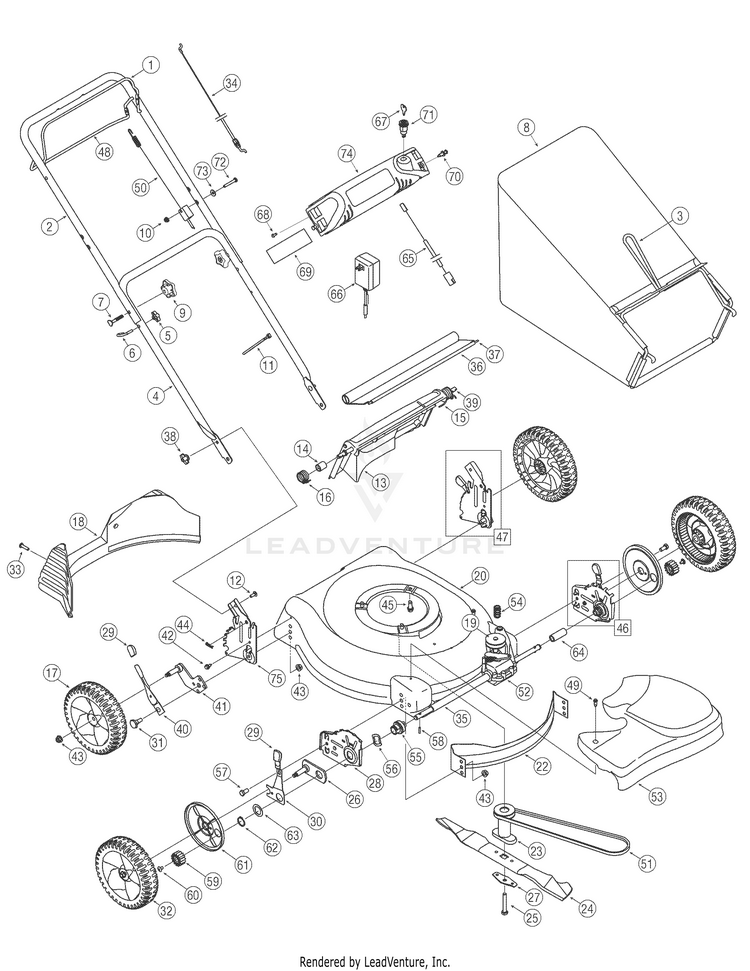

General Assembly

...
...
1
Blade Control MTD-747-1161A
...
2
UPPER HANDLE MTD-749-1233D-0637
...
3
Grass Bag Frame MTD-747-04080A
...
4
Lower Handle MTD-749-0928A-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Bolt ,5/16-18 x 2 MTD-710-1174
...
8
Grass Bag Assembly MTD-964-04007A
...
9
Star Knob MTD-720-04072A
...
10
Flange Lock Nut 1/4-20 MTD-712-04064
...
11
Cable Tie MTD-725-0157
...
12
Carriage Bolt ,1/4-20 MTD-710-0703
...
13
SERVICE REPLACEMENT KITLAC MTD-753-06366
...
14
SPACER MTD-950-04162
...
15
Torsion Spring - LH MTD-732-04089A
...
16
Torsion Spring - RH MTD-732-04090A
...
17
Rear Wheel, 8" x 1.8" MTD-734-04087
...
18
REAR BAFFLE 21" MTD-731-04150C
...
19
Input Pulley MTD-756-04017
...
20
Deck - 21" MTD-787-01277
...
21
Roll Pin MTD-715-04011
...
22
FRONT BAFFLE MTD-782P5002B
...
23
Blade Adapter w/ Pulley MTD-948-04015A
...
24
21-inch Mulching Blade MTD-942-0741A
...
25
Hex Bolt , 3/8-24 x 2.5 MTD-710-1257
...
26
PIVOT PLATE ASSEMBLY MTD-687-02044
...
27
BLADE BELL SUPPORT MTD-736-0524B-1
...
28
ADJUSTMENT PLATE (RH) MTD-787-01298A-0637
...
28
ADJUSTMENT PLATE (LH) MTD-787-01299A-0637
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
Front Lever - RH MTD-732-0706
...
30
Front Lever - LH MTD-732-0707
...
31
SHOULDER SCREW .500 x .434 MTD-738-04136
...
32
WHEEL ASSEMBLY (8 x 1.8) (YELLOW) MTD-634-04100A
...
33
Screw, 1/4-15 x 1.250 MTD-710-04371
...
34
CONTROL CABLE 48.4" MTD-746-04281
...
35
Sleeve Spacer - RH MTD-750-04594
...
36
Trailshield MTD-731-04998
...
37
TRAILSHIELD WIRE MTD-732P0700
...
38
Wing Nut MTD-712-0397A
...
39
SERVICE REPLACEMENT KITLAC MTD-753-06366
...
40
Spring Lever MTD-732-04175
...
41
Pivot Arm Assembly - RH MTD-987-02071A
...
41
Pivot Arm Assembly - LH MTD-987-02070A
...
42
AB Screw MTD-710-1652
...
43
Flange Lock Nut, 3/8-16 MTD-712-04065
...
44
Hairpin Clip MTD-714-0104
...
45
TT Sems Screw, 3/8-16 x 1.00 MTD-710-0654A
...
46
Height Adjustment Ass’y - LH MTD-987-02193A
...
46
Height Adjustment Ass’y - RH MTD-987-02194A
...
47
KIT-HANDLE BRACKET MTD-753-05994
...
47
KIT-HANDLE BRACKET MTD-753-05994
...
48
Drive Control MTD-747-1214
...
49
Shoulder Screw MTD-710-1650
...
50
CONTROL CABLE 48.75" MTD-946-04282
...
51
V-Belt MTD-954-0637A
...
52
Transmission Assembly MTD-753-05465
...
53
TRANSMISSION COVER (YELLOW) MTD-931-05021A
...
54
Belt Tension Spring MTD-732-1043
...
55
Front Bearing Assembly MTD-982-0015
...
56
Wave Washer MTD-736-0447
...
57
Hex Screw MTD-710-0216
...
58
Dowel Pin MTD-915-0221
...
59
Gear, 14T - RH MTD-717-1762
...
59
Gear, 14T - LH MTD-717-1761
...
60
Screw 1/4-20 MTD-710-04531
...
61
Wheel Dust Cap MTD-782-7551A
...
62
Snap Ring MTD-716-0102
...
63
Washer, 1.5" OD MTD-736-0474
...
64
Sleeve Spacer - LH MTD-750-04595
...
65
Electric Starter Harness MTD-725-04293
...
66
BATTERY CHARGER MTD-725-06121C
...
67
Key MTD-925-0201
...
68
Screw, #10-16 x .75 MTD-710-1667A
...
69
BATTERY REPLACEMENT KIT MTD-753-10804
...
70
Plastic Rivet MTD-728-0199
...
71
Key Switch MTD-925-04347
...
72
Screw, 1/4-20 x 1.75 MTD-710-0136
...
73
SPRING WASHER BELL MTD-736-0270
...
74
Electric Start Harness Assembly MTD-925-04072
...
75
KIT-HANDLE BRACKET MTD-753-05994
...
75
KIT-HANDLE BRACKET MTD-753-05994
...
76
EXTENSION HARNESS MTD-725-04310
...
77
BRACKET:ENGINE:TECUMS MTD-751-10153
...
78
Engine Shroud MTD-931-04525
