Yard Man 12AD465E401 (2003) Self-Propelled Walk-Behind Mower

Model: 12AD465E401 (2003)

Save Part Not Listed?
product name

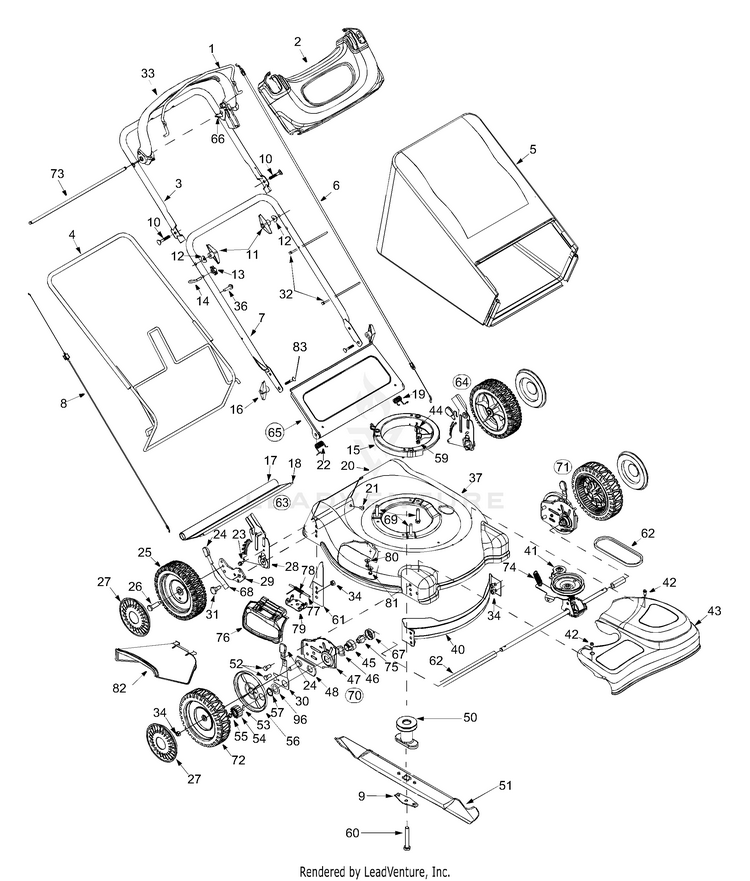

General Assembly 1

...
...
1
BAIL MTD-747-2133A-0637
...
2
HANDLE PANEL MTD-731-2628
...
3
UPPER HANDLE (POWDER BLACK) MTD-749-1507-0637
...
4
Rear Catcher Frame MTD-764-0310A-0637
...
4
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637
...
5
GRASS CATCHER BAG MTD-964-0309
...
6
56" CONTROL CABLE MTD-946-04039
...
7
Lower Handle MTD-749-0907B
...
8
Fwd Drive Cable: Smart Speed (TM) MTD-946-1250
...
9
BLADE BELL SUPPORT MTD-736-0524B-1
...
10
Carriage Bolt MTD-710-1174
...
11
Handle Knob MTD-720-0284
...
12
Saddle Washer MTD-736-0451
...
13
Wing Nut MTD-720-0279
...
14
Rope Guide MTD-710-1205
...
15
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
16
Wing Nut MTD-712-0397A
...
17
Rear Trailing Shield MTD-731-04998
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
TORSION SPRING (LH) MTD-932-04071
...
20
LH Rear Baffle MTD-782-5003A
...
21
Scr. AB 1/4-14 x 0.625" MTD-710-1017
...
22
TORSION SPRING (RH) MTD-932-04072
...
23
Hex Scr. w/ Wash. 1/4-14 x 0.62" MTD-710-0896
...
24
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
25
Wheels - Front MTD-753-08093
...
26
Shoulder Screw MTD-738-0102
...
27
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
28
Handle Bracket Assembly LH Not Shown MTD-687-02037
...
28
Handle Bracket Assembly RH MTD-687-02036
...
29
BAR-PIVOT (LH) *ON MTD-14766
...
29
BAR-PIVOT (RH) *ON MTD-14765
...
30
Front Lever RH MTD-732-0706
...
30
Front Lever LH Not Shown MTD-732-0707
...
31
Shoulder Screw MTD-738-0507B
...
32
Cable Tie MTD-725-0157
...
33
HANDLE ASSEMBLY (YELLOW) MTD-631-04024
...
34
Flange Lock Nut 3/8-16 MTD-912-0431
...
35
BELL WASHER MTD-936-0356
...
36
TT-Scr. 5/16-18 MTD-710-0817
...
37
DECK 21" R MTD-782-0082A
...
38
Drive Belt MTD-954-04032B
...
40
FRONT BAFFLE MTD-782P5002B
...
41
Transmission Assembly Comp. MTD-918-04006
...
42
Shld. Screw MTD-710-1650
...
43
FORWARD TRANSMISSION COVER (YELLOW) MTD-931-04580
...
44
Belt Keeper Pin MTD-711-1293
...
45
SUPPORT BEARING MTD-748-0355
...
46
Wave Washer MTD-736-0447
...
47
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
47
Height Adjuster Plate - RH MTD-782-0512B-0637
...
48
PIVOT PLATE ASSEMBLY MTD-687-02044
...
49
Drive Pulley MTD-756-1146A
...
50
Blade Adapter w/ Pulley MTD-948-04015A
...
51
21-inch Mulching Blade MTD-942-0741A
...
52
Hex Screw 3/8-16 MTD-710-0216
...
53
Dowel Pin MTD-915-0221
...
54
Gear 14T RH MTD-717-1762
...
54
Gear 14T LH Not Shown MTD-717-1761
...
55
Snap Ring MTD-716-0865
...
56
Wheel Dust Cap MTD-782-7551A
...
57
Snap Ring MTD-716-0102
...
58
Washer DD 1.5" O.D. MTD-736-0474
...
59
Hex Nut 1/4-20 MTD-712-0271
...
60
Hex Bolt MTD-710-1257
...
61
Mulching Baffle - R.R. MTD-782-5004B
...
62
Slev. Spacer LH Not Shown MTD-750-1166
...
62
SLEEVE SPACER MTD-750-1210
...
62
Drive Belt MTD-954-04032B
...
63
KIT-HANDLE BRACKET MTD-753-05994
...
64
KIT-HANDLE BRACKET MTD-753-05994
...
65
REAR DOOR 21" MTD-931-04134
...
66
STOP-BAIL MTD-731-2634
...
67
BEARING RETAINER MTD-732-0708
...
68
SPRING LEVER MTD-732-0417A
...
69
TT Screw MTD-710-1008
...
70
Height Adjustment Ass’y - RH MTD-987-02194A
...
71
Height Adjustment Ass’y - LH MTD-987-02193A
...
72
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
73
CONTROL ROD MTD-747-2132A
...
74
Extension Spring MTD-732-04001
...
75
Bearing Sleeve.50 I.D. MTD-741-0604A
...
76
Mulch Cover MTD-987-02055
...
77
Hinge Pin MTD-747-0710A
...
78
Torsion Spring MTD-732-1014C
...
79
PLATE-ADAPTER MTD-17032A
...
80
SPRING WASHER BELL MTD-736-0270
...
81
TT-Screw 1/4-20 x.05" MTD-710-0599
...
82
Side Chute Deflector MTD-731-04177
...
83
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
96
Washer MTD-736-0474

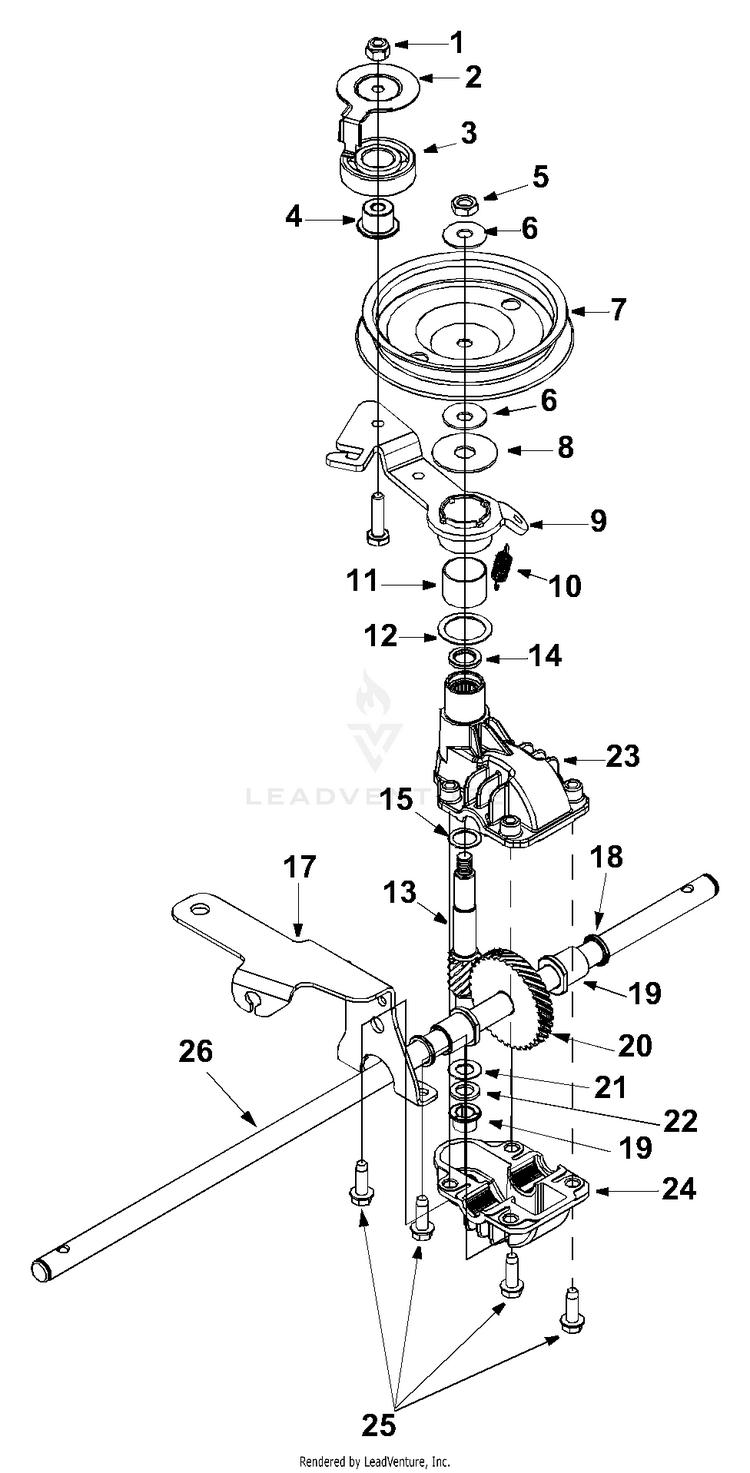

Transmission Assembly

...
...
1
L-Nut 1/4-28 MTD-712-0896
...
2
Belt Keeper MTD-782-7598
...
3
BALL BEARING MTD-941-0600
...
4
Flange Bearing MTD-750-1050
...
5
Hex Jam Nut 5/16-24 MTD-712-3025
...
6
Bell Washer.325 x.930 x.45 MTD-736-0425
...
7
INPUT PULLEY ASSEMBLY (3.82X .313X .68) MTD-656-0047
...
8
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
9
FRONT IDLER ASSEMBLY MTD-682-0029
...
10
Extension Spring MTD-732-04001
...
11
Bearing Sleeve MTD-741-0682A
...
12
FLAT WASHER MTD-936-0570
...
13
Pinion Shaft 10T MTD-711-1492
...
14
NEEDLE BEARING MTD-741-0699
...
15
Flat Washer .504 ID x .70 OD MTD-936-0520
...
?16
SHAFT PINION 10T MTD-717-1492
...
17
IDLER CABLE BRACKET MTD-682-0030
...
18
Oil Seal MTD-921-0329
...
19
Bearing MTD-941-0673
...
20
OUTPUT SHAFT ASSEMBLY MTD-611-0105A
...
21
Thrust Washer.375 x.070 x.030 MTD-736-0314
...
22
THRUST WASHER MTD-936-0569
...
23
UPPER HOUSING ASSEMBLY MTD-618-0300A
...
24
HOUSING ASSEMBLY-LOWER MTD-618-0299A
...
25
SCREW 1/4-20 x .750 MTD-710-1276
...
26
Transmission Assembly Comp. MTD-918-04006
