Yard Man 12AD449P701 (2004) Self-Propelled Walk-Behind Mower

Model: 12AD449P701 (2004)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

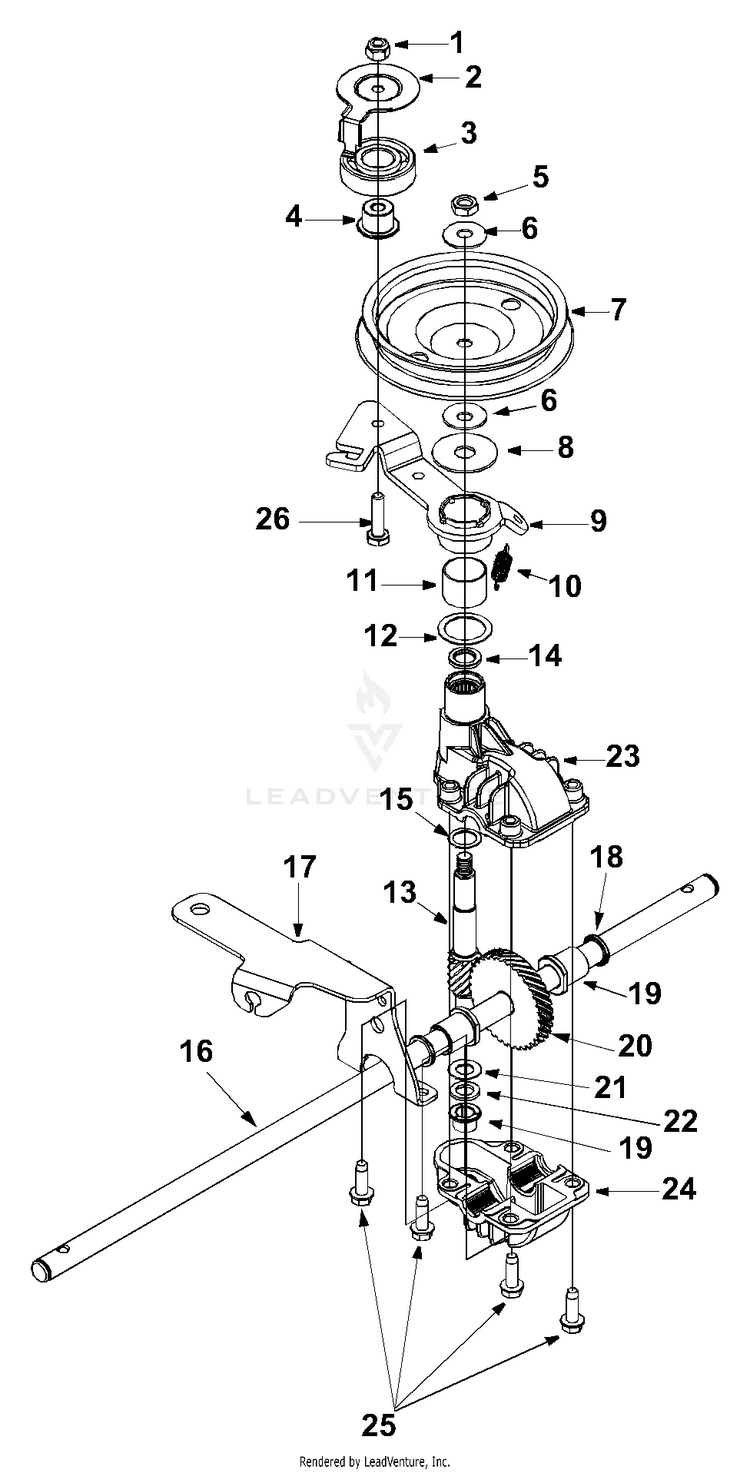

Transmission

...
...
1
L-Nut 1/4-28 MTD-712-0896
...
2
Belt Keeper MTD-782-7598
...
3
BALL BEARING MTD-941-0600
...
4
Flange Bearing MTD-750-1050
...
5
Hex Jam Nut 5/16-24 MTD-712-3025
...
6
Bell Washer.325 x.930 x.45 MTD-736-0425
...
7
INPUT PULLEY ASSEMBLY (3.82X .313X .68) MTD-656-0047
...
8
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
9
FRONT IDLER ASSEMBLY MTD-682-0029
...
10
Extension Spring MTD-732-04001
...
11
Bearing Sleeve MTD-741-0682A
...
12
FLAT WASHER MTD-936-0570
...
13
SHAFT PINION 10T MTD-717-1492
...
14
NEEDLE BEARING MTD-741-0699
...
15
Flat Washer .504 ID x .70 OD MTD-936-0520
...
16
Transmission Assembly Comp. MTD-918-04006
...
17
IDLER CABLE BRACKET MTD-682-0030
...
18
Oil Seal MTD-921-0329
...
19
Bearing MTD-941-0673
...
20
OUTPUT SHAFT ASSEMBLY MTD-611-0105A
...
21
Thrust Washer.375 x.070 x.030 MTD-736-0314
...
22
THRUST WASHER MTD-936-0569
...
23
UPPER HOUSING ASSEMBLY MTD-618-0300A
...
24
HOUSING ASSEMBLY-LOWER MTD-618-0299A
...
25
SCREW 1/4-20 x .750 MTD-710-1276
...
26
Hex Screw, 1/4-28 x 1.00 MTD-710-0299
