Yard Man 12A-A1JY701 (2012) Self-Propelled Walk-Behind Mower

Model: 12A-A1JY701 (2012)

Back To Assemblies

Save Part Not Listed?
product name

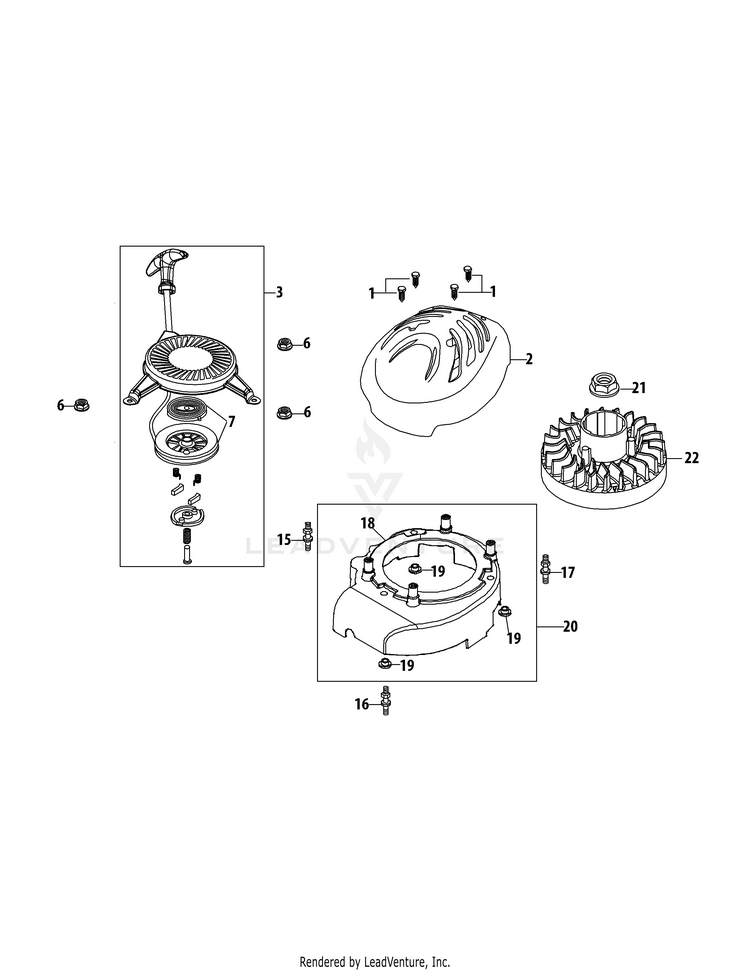

5P65MU Flywheel & Shroud

...
...
1
Screw, #12-16 X 1.00" MTD-710-04744
...
2
Outer Shroud (Model Specific) Refer to unit breakdown MTD-NA
...
3
Recoil Starter Assembly MTD-951-12683
...
6
Nut M6 MTD-712-05015
...
7
Recoil Spring MTD-951-11721
...
15
Stud Left/Black/Ye Zinc MTD-751-11722
...
16
Stud Front/Unmarked/Ye Zinc MTD-951-11723
...
17
Stud Right/White/Ye Zinc MTD-951-11724
...
18
Inner Shroud MTD-951-10875
...
19
Engine Shroud Spacer MTD-750-05320
...
20
INNER SHROUD ASSEMBLY MTD-951-12863
...
21
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
22
Flywheel MTD-951-11043
