Yard Man 12A-A1JY701 (2012) Self-Propelled Walk-Behind Mower

Model: 12A-A1JY701 (2012)

Back To Assemblies

Save Part Not Listed?
product name

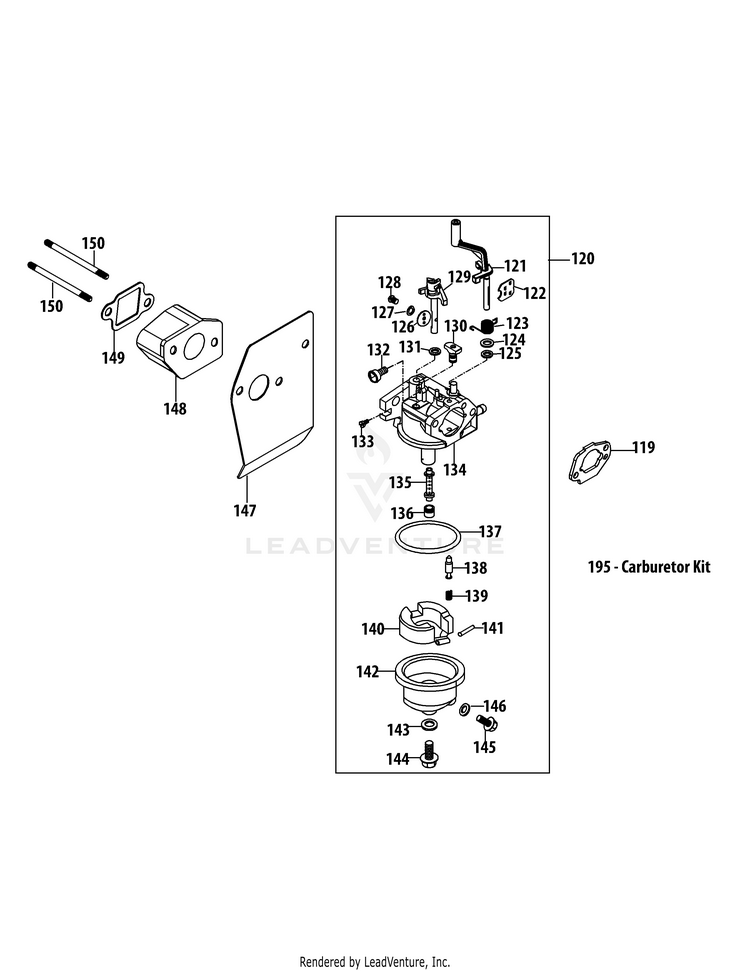

5P65MU Carburetor

...
...
119
Carburetor Gasket Plate MTD-951-11525
...
120
Carburetor Assembly MTD-951-10873
...
121
Choke Shaft MTD-NA
...
122
Choke Plate MTD-NA
...
123
Choke Return Spring MTD-NA
...
124
Choke Shaft Washer MTD-736-04556
...
125
Choke Shaft Fiber O-Ring MTD-NA
...
126
Throttle Plate MTD-NA
...
127
LOCK WASHER MTD-736-04638A
...
128
Screw M3X5 Throttle Plate MTD-NA
...
129
Throttle Shaft MTD-NA
...
130
Idle Jet Assembly MTD-NA
...
131
Throttle Shaft Fiber O-Ring MTD-NA
...
132
Idle Speed Adjusting Screw MTD-NA
...
133
Idle Mixture Screw MTD-NA
...
134
Carburetor Body MTD-NA
...
135
Emulsion Tube MTD-NA
...
136
Main Jet MTD-NA
...
137
Fuel Bowl O-Ring MTD-951-11589
...
138
Needle Valve MTD-NA
...
139
Needle Valve Spring MTD-NA
...
140
Float MTD-NA
...
141
Float Pin MTD-NA
...
142
Fuel Bowl MTD-NA
...
143
FUEL BOWL GASKET MTD-951-11348A
...
144
Fuel Bowl Mounting Bolt MTD-710-04945
...
145
FUEL DRAIN PLUG MTD-710-04938
...
146
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
147
Carburetor Gasket MTD-951-11737
...
148
CARBURETOR INSULATOR MTD-951-11738A
...
149
Carburetor Insulator Gasket MTD-951-11528
...
150
Carb Stud M6X92 MTD-710-05093
...
195
CARBURETOR KIT (MAJOR) (Incl.125,130-132,135-141,143,146) MTD-951-10874A
