Yard Man 12A-A1JY701 (2012) Self-Propelled Walk-Behind Mower

Model: 12A-A1JY701 (2012)

Back To Assemblies

Save Part Not Listed?
product name

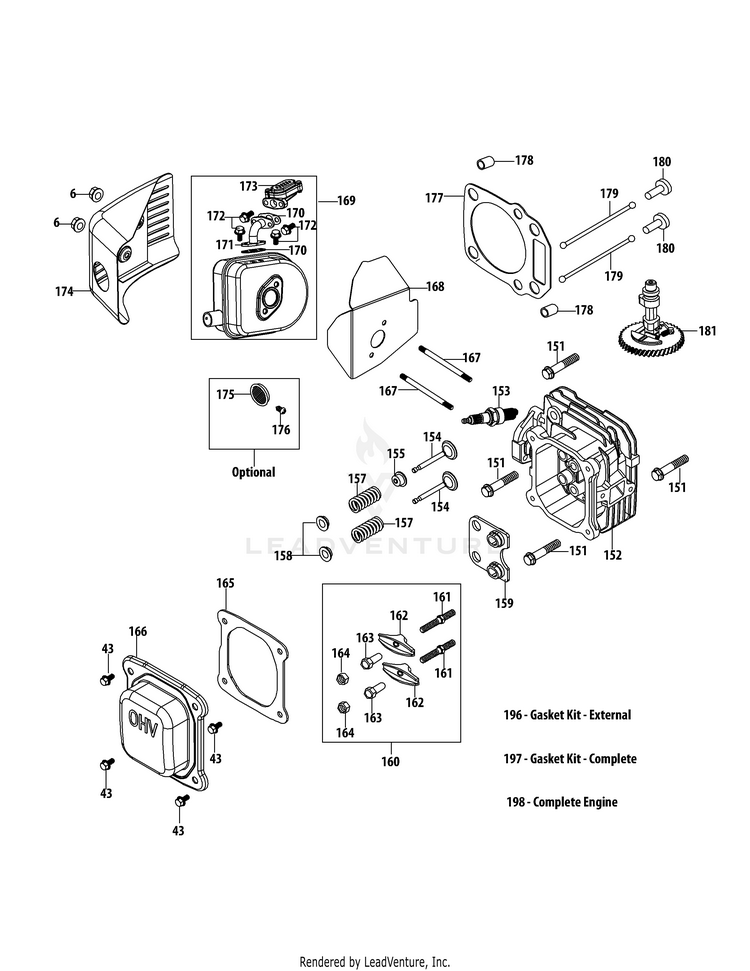

5P65MU Cylinder Head

...
...
6
Nut M6 MTD-712-05015
...
43
Bolt M6X14 MTD-710-04916
...
151
Bolt M8X54 MTD-710-04982
...
152
CYLINDER HEAD (Incl.148,149,152,154-159,161-165,168,177) MTD-951-11746
...
152
CYLINDER HEAD SERVICE KIT (Incl.151,155,165,177) MTD-951-10846A
...
153
Spark Plug MTD-951-10292A
...
154
Valve Kit MTD-951-10313
...
155
VALVE SEAL MTD-951-11818
...
157
VALVE SPRING MTD-751P12004A
...
158
Valve Spring Retainer MTD-951-11977
...
159
PUSH ROD GUIDE MTD-951-11687A
...
160
ROCKER ARM MTD-951-11606A
...
161
Rocker Arm Stud MTD-710-04902
...
162
Rocker Arm MTD-951-12001
...
163
Fulcrum Nut MTD-751-11123
...
164
Jam Nut MTD-751-11124
...
165
VALVE COVER GASKET MTD-951-11551
...
166
VALVE COVER MTD-951-11548
...
167
Muffler Stud M6X95 MTD-710-05094
...
167
Muffler Stud Assemlby MTD-951-10342
...
168
Muffler Gasket MTD-951-11739
...
169
Muffler Assembly MTD-951-12740
...
170
Secondary Air Valve Gasket MTD-951-12743
...
171
SECONDARY AIR TUBE MTD-951-12742
...
172
BOLT M6 x 12 MTD-710-05434
...
173
SECONDARY AIR VALVE MTD-951-12865
...
174
Muffler Shield MTD-951-12744
...
175
SPARK ARRESTOR MTD-951-10351A
...
176
Spark Arrestor Screw MTD-710-04983
...
177
CYLINDER HEAD GASKET MTD-951-11555
...
178
Cylinder Head Dowel Pin 10×16 MTD-715-04108
...
179
Push Rod MTD-951-10314
...
180
Tappet MTD-951-11607
...
181
Camshaft Assembly MTD-951-11741
...
196
GASKET KIT (EXTERNAL) (Incl.44,92,109,147-149,165,168) MTD-951-11788
...
197
GASKET KIT (COMPLETE) (Incl.45,46,69,84,92,109,111,147-149,165,168,177) MTD-951-11787
...
198
COMPLETE ENGINE 139cc MTD-952Z5P65MU
